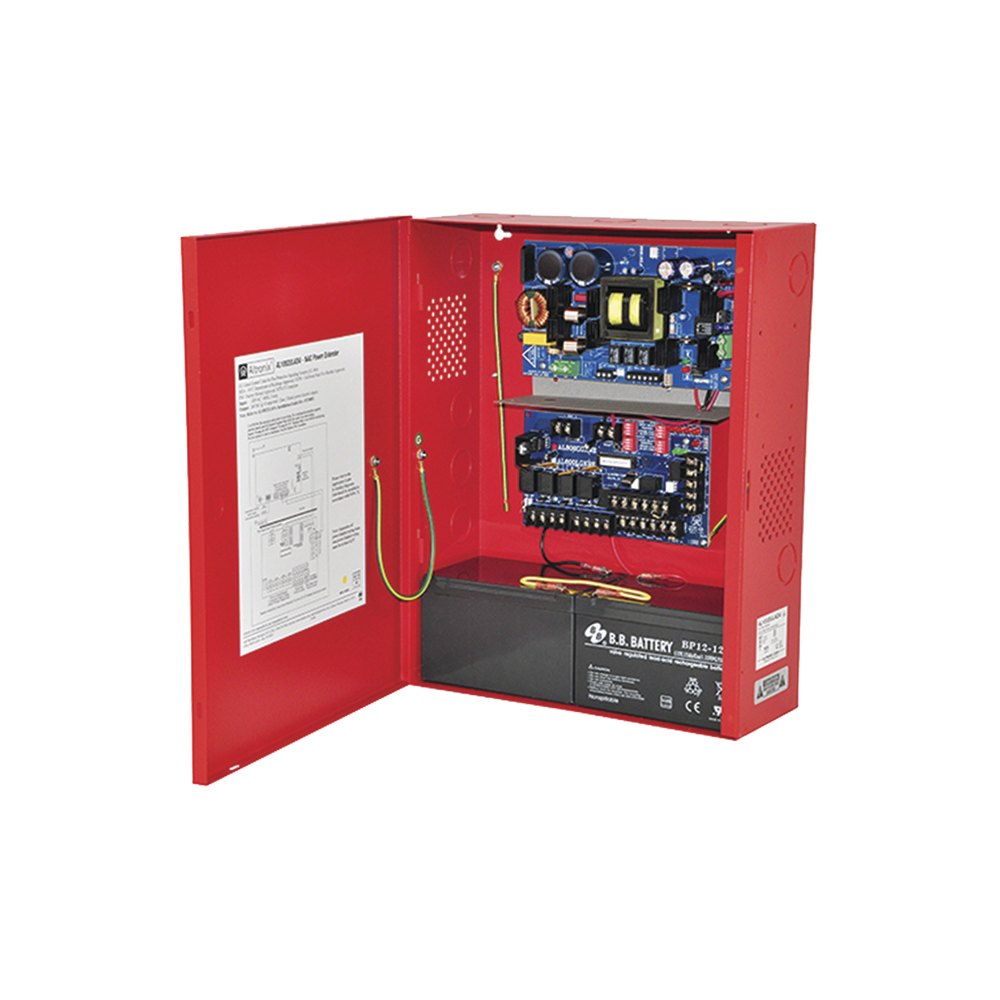

NAC Circuit Extender Supply

NAC Circuit Extender Supply

Entrance:
• Input power 120VAC 60 Hz, 5 amp.
• Two (2) Class A, Style Z circuits or two (2) Class B circuits,
W, Y style. FACP inputs.
• Two (2) dry contact NC trigger inputs (Triggers).
Exit:
• Limited rated power outputs Class 2.
• 24VDC @ 10 amps maximum total alarm current.
• Maximum current of 2.5 A per output.
• Separate 1.0 amp auxiliary output.
• Programmable supervised signaling circuit outputs:
Four (4) Class B, Style W, Y or Two (2) Class A, Style Z or One (1) Class A, Style Z and Two (2) Class B, Style W, Y.
• Thermal and short-circuit protection with automatic reset.
Backup battery:
• Built-in charger for sealed lead acid or gel batteries.
• Automatic switch to backup battery when AC fails.
• Zero voltage drop when switching to backup battery.
Supervision:
• AC failure supervision ("C" contact, 1 amp / 28VDC).
Factory setting for 30 seconds with option of 2.5 to 3 hours
Delay adjustment (field selectable).
• Immediate local AC trouble reporting relay
(Form "C" contact, 1 amp / 28VDC).
• Battery presence and low battery supervision
(Form "C" contact, 1 amp / 28VDC).

**Product on request.
