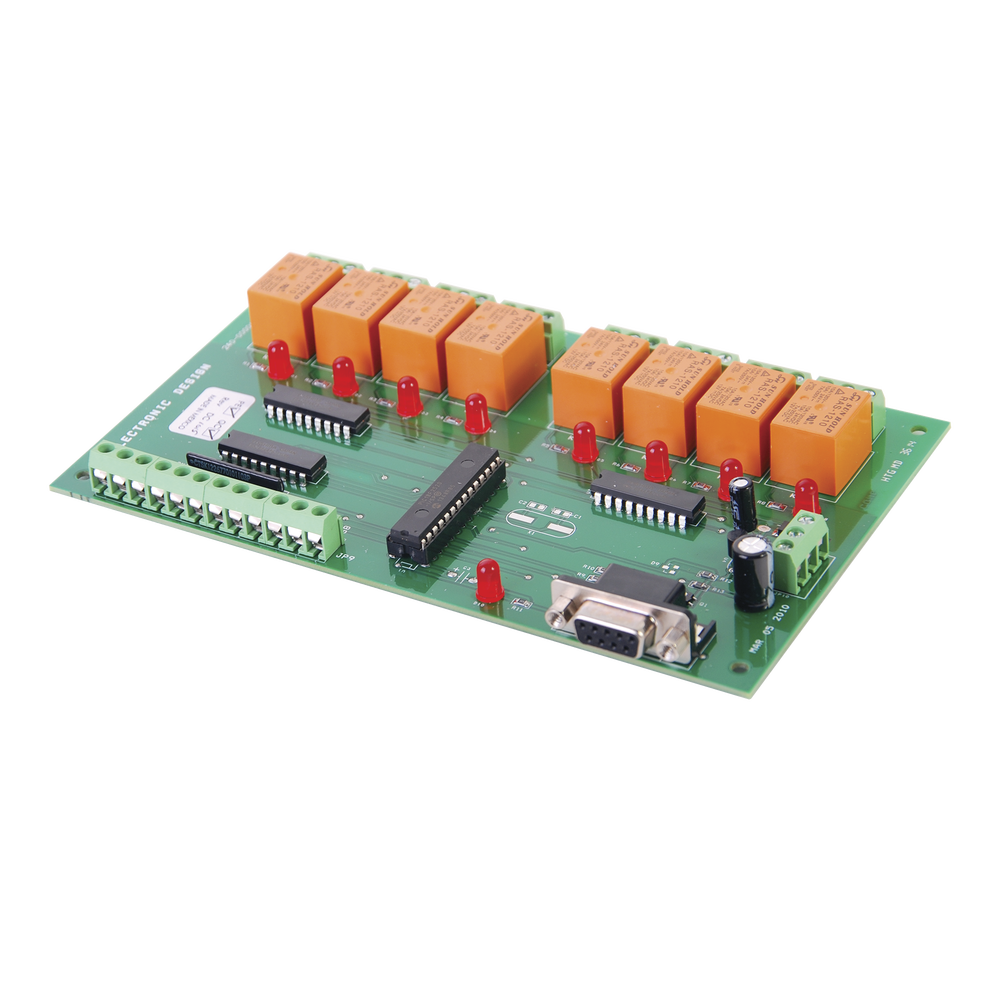

Locks: Programmable Control Card for up to 8 Doors

Locks: Programmable Control Card for up to 8 Doors

• Allows you to quickly configure the locking for each entrance or door.
• It can handle 12/24 Vdc devices as well as 24 Vac, since the eight relays are isolated from each other.
• It has 8 LEDs that show when the relay is activated.
• Individual locking configuration for each door.
• Programming via RS232 port (hyperterminal).
• 8 NC/NO door sensor inputs (depending on sensor type) required for operation
• Outputs: 8 isolated relays K1 to K8 (NO/NC/COM).
• For bank access type applications (NO/NC doors).

*1 Year warranty.
