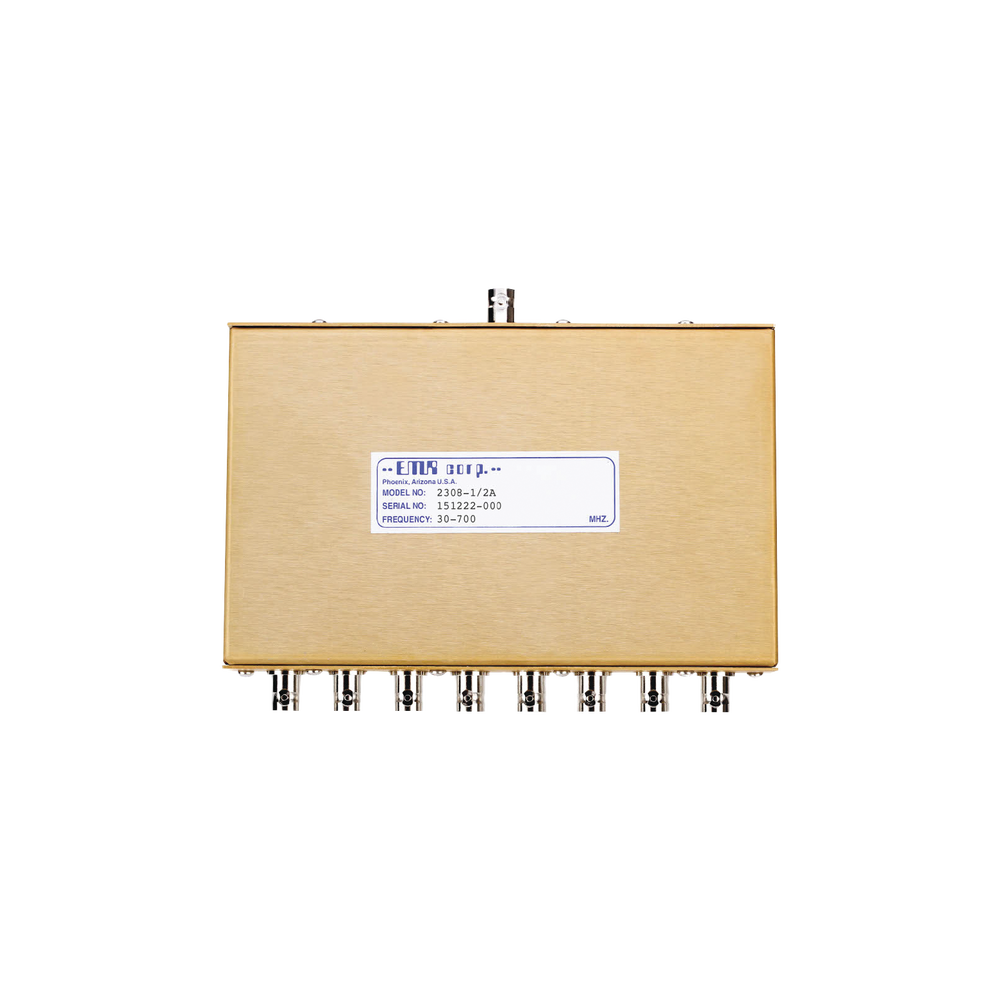

8-Way EMR Power Splitter, 30-700 MHz, 0.5 Watt, BNC Female Connectors.

8-Way EMR Power Splitter, 30-700 MHz, 0.5 Watt, BNC Female Connectors.

8-Way Power Splitter, 30-700 MHz, 0.5 Watt, BNC Female.

• All EMR power dividers are backed by a 5-Year Warranty.
• Made in the USA.

Electrical Specifications

• Frequency Band: 30-700 MHz.
• Input Power (Max.): 0.5 W (as divider).
• Insertion Loss (Max. / Typical): 9.5 / 9.2 dB.
• Port to Port Isolation (Min.): 23 dB.
• VSWR (Max.): 1.5:1
• Impedance (Nom.): 50 Ω RF.
• Connectors: BNC Female.

Mechanical Specifications

• Finish: Yellow Chemical Film.
• Full Size (W x H x D): 25 x 171 x 135 mm.
• Net Weight: 0.3 kg
• Shipping Weight: 0.9 kg

Environmental Specifications

• Operating Temperature Range: -30°C to +60°C.

*Ask for Delivery Time.
