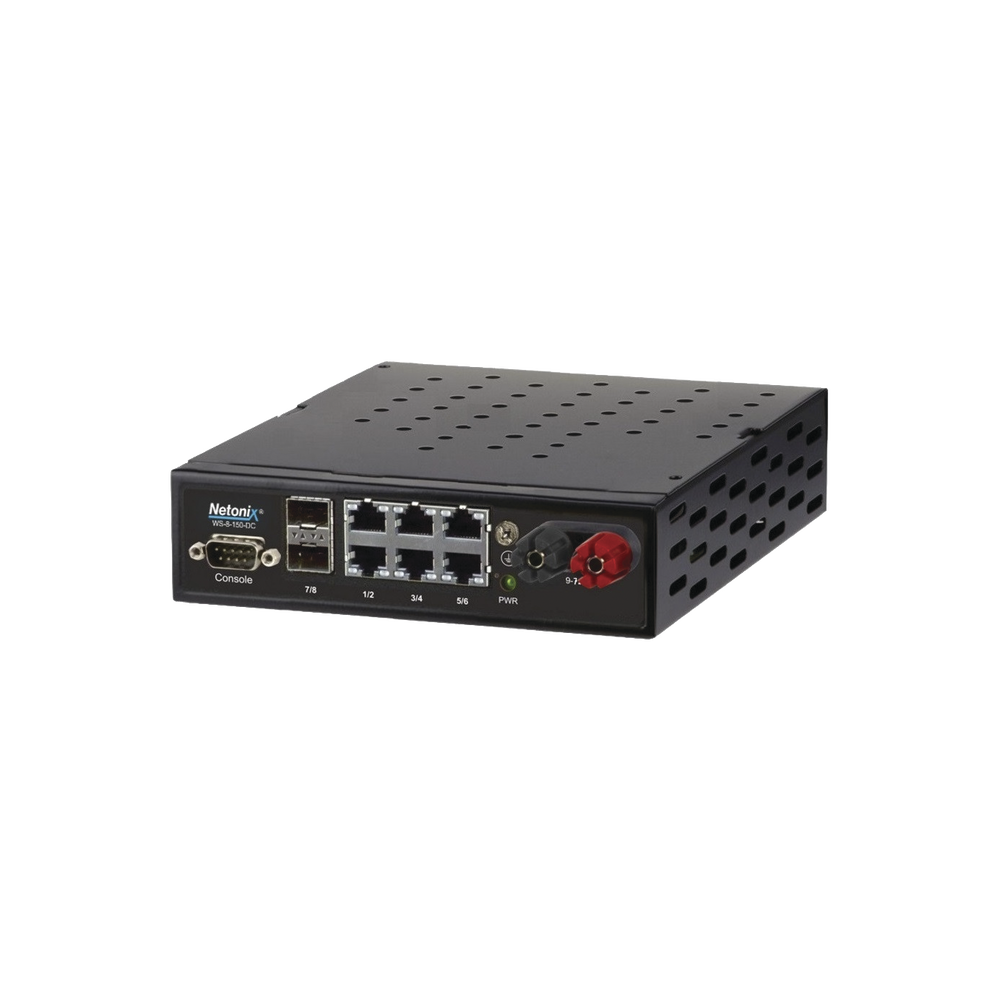

8-port Managed Passive PoE WISP Switch (6 Gigabit PoE + 2 SFP) 9-72 Vdc input

8-port Managed Passive PoE WISP Switch (6 Gigabit PoE + 2 SFP) 9-72 Vdc input

Main features:

6 Gigabit PoE ports to power equipment from various manufacturers: Ubiquiti, Mimosa, Cambium, IgniteNet, Altai, Mikrotik, etc.

Withstands wide temperature range: -25° C to 55° C.

Input voltage: 9 – 72 Vdc.

PoE output voltage: 48 - 50VDC / 22 - 24 Vdc.

Own consumption: 9 W.

Administration functions:

UDP - Ubiquiti Discovery Protocol.

CDP - Cisco Discovery Protocol.

LACP.

Limit bandwidth per port.

STP / RSTP.

VLAN.

SNMP.

Ping Watch Dog.

Cable diagnosis.

Hardware:

1 RS-232 port.

6 10/100/1000 Ethernet ports.

2 SFP ports.

Smart fan.

PoE Pair Configuration:

24V 0.75A pins 4,5(+) 7,8(-) Ports 01 to 06.

48V 0.75A pins 4,5(+) 7,8(-) Ports 01 to 06.

48VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-) Port 01.

*Powers equipment with 802.3af/at standard by activating 48 V PoE

Equipment consumption without PoE activated: 5.5 Watts.

IT IS ESSENTIAL TO CONNECT TO A PHYSICAL GROUND BAR

General characteristics:

Dimensions: 191mm X 178mm X 44mm.

Weight: 2 kg.

Rack rail mount not included. Recommended kit is DIN-8-150-DC.

Ideal for Wisp applications with solar cell systems.

*1 year warranty.

Requires external power supply, 1-year warranty, Grounding is essential, 18 AWG copper wiring is recommended for DC
