Wall Mount Panel Antenna, Multi-band 700-960 MHz/ 1710-2170 MHz, 75 Ohm, F female connector.

Wall Mount Panel Antenna, Multi-band 700-960 MHz/ 1710-2170 MHz, 75 Ohm, F female connector.

Multi-band Wall Mount Panel Antenna.

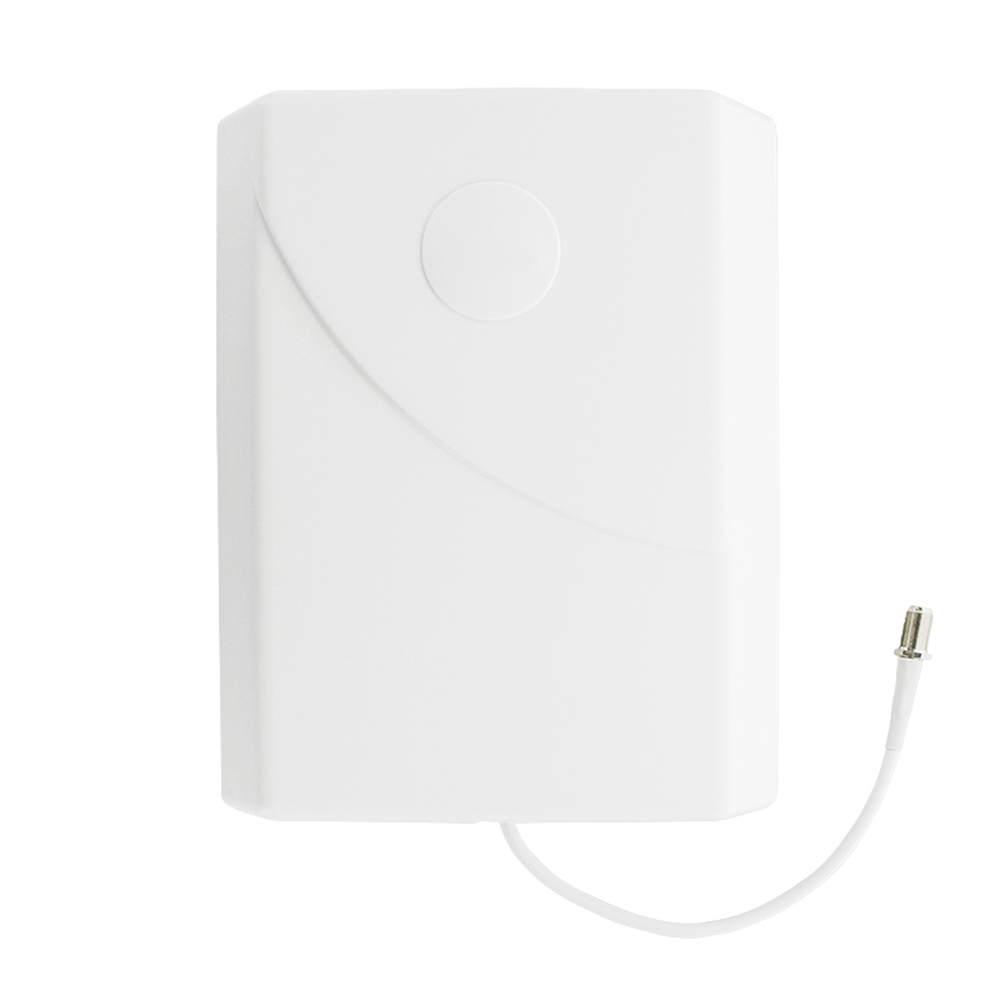

The Wilson 311155 Wall-Mount Panel Antenna is a 75 Ohm indoor antenna designed to enhance signal transmission between your Wilson booster and a nearby cell tower. Its powerful broadband coverage delivers up to 10.6 dB of gain. It is designed for fixed building installations.

This is a directional antenna, meaning it must be directed where signal amplification is desired. It's designed to project the enhanced signal in front of the antenna, not behind it. The panel, approximately 21 cm x 18 cm, is made of ABS plastic and features a built-in ground plane.

• Designed to be used as an indoor directional antenna.
• Works with 75 Ohm amplifiers and accessories.
• Fixed installations.
• Built-in ground plane.
• Broadband coverage of up to 10.6 dB gain.

Frequency and Gain:

• 700-800 MHz 5.2 dB
• 824-894 MHz 4.4 dB
• 880-960 MHz 4.2 dB
• 1710-1880 MHz 10.1 dB
• 1850-1990 MHz 10.6 dB
• 2110-2170 MHz 8.2 dB

Radiation: Directional
Impedance: 75 Ohm
Maximum Power: 50 Watt
Horizontal Signal Aperture: 70/60°
Vertical Signal Opening: 50/45°
Connector: F female
Dimensions: 21 x 18 x 4.39 cm
Weight: 0.6 kg
