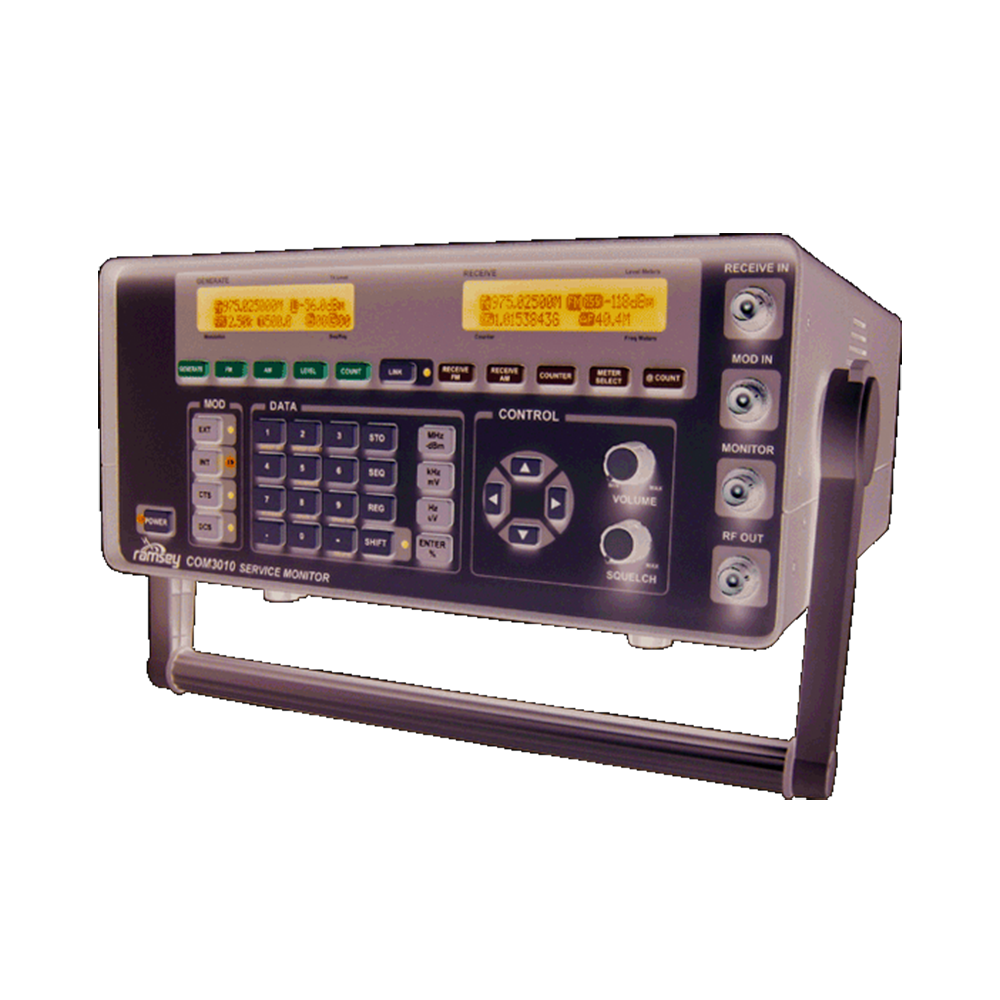

Radio Communication Service Monitor, 100 KHz-1.0 GHz, 100 W max.
Now you can equip your laboratory with a monitor that has the features and accuracy of analyzers up to four times the cost.

• Power Meter: Automatically connects to a built-in phantom load to perform measurements up to 100 Watts.
• Display: 2 vacuum fluorescent graphic displays, 16 x 140 pixels.
• Memories: Complete memory system, 100 sequences of 100 records.
• Scan Mode: Allows scanning of 100 stored frequencies.
• SINAD Meter: Checks the sensitivity of your radios without requiring additional equipment.
• Frequency Counter: Displays the received frequency and its error in the range of 100 kHz 3 - 1.0 GHz.
• Battery Meter: Displays the battery charge on the screen, allowing the equipment to operate for one hour.
• Self-calibrating RSSI meter: Displays received signal strength (RSSI) within a range of -120 dBm to -40 dBm.

GENERATOR MODE

• Frequency: 100 kHz - 1.0 GHz in 1 Hz steps.
• Stability:± 0.1 ppm standard.
• RF Output: -140 dBm to 0 dBm in 0.1 dBm steps.
• Accuracy: ± 1 dB from 500 kHz to 1 GHz, ± 2 dB from 100 kHz to 500 kHz.
• Units: dBm, mV.
• Harmonic: -30 dBc typical
• No Harmonic: -50 dBc typical
• FM Modulation: ± 75 kHz plus in 0.1 Hz steps.
• FM bandwidth: 0.1 Hz- 75 kHz.
• Accuracy:±0.1ppm (Similar to frequency stability).
• AM Modulation: 0-75% in 1% steps up to -100 dBm, 0 - 50% up to -140 dBm.
• AM bandwidth: 10 Hz - 10 kHz.
• Accuracy:± 5%.
• Distortion: less than 5%.

Modulations

• Internal: 0.1 Hz - 3 kHz.
• External: 0.1 Hz - 3 kHz
• CTCSS tone encoding: 0.1 Hz - 999.9 Hz with variable frequency deviation from 0.1 Hz to 2 kHz.
• DCS Tone Coding: Generates all standard digital tones with a fixed deviation of ±750 Hz.

RECEIVER MODE

• Frequency: 100 kHz - 1.0 GHz in 10 Hz steps.
• Sensitivity: Less than 2 mV below 512 MHz, less than 3 mV above 512 MHz.
• FM Demodulation: 0 - 7 kHz, 0-4 kHz.
• AM Demodulation: 0-100%.
• CTCSS decoding: (in auto frequency counting).
• Frequency error: 0-1 MHz, by 2 methods. Bar graph and counter.

Frequency counter

• Range: 100 kHz - 1 GHz.
• Low band sensitivity: Less than 5 mV below 50 MHz, less than 10 mV above 70 MHz, 1 Hz and 10 Hz resolutions.
• High band sensitivity: Less than 6 mV above 200 MHz, less than 10 mV between 70 and 200 MHz. Resolutions of 10 Hz and 100 Hz.

Audio connector

• Sampling: 60 Hz - 300 Hz. Variable 10 second sampling with updates every second.

General characteristics

• Dummy load: 100 Watts, connected to the output of RF and the output. attenuated of 30 dB in the backside, 25 % d endless cycle to 100 Watts
• Power Supply: 100 - 240 VAC, 0.6 Amp. 50/60 Hz: In-build internal battery
• Operating Temperature: -30 to 50° C
• Receiver input: Contains diode and fuse protection.
• Battery life: 1.5 hours expandable to 4.5 hours.
• Controls: Elastic type membrane .
• Phantom Load: 100 Watts, connected to the RF output and the output. 30 dB attenuator on the rear, 25% non- loopable up to 100 Watts.
• Power Supply: 100 - 240 VAC, 0.6 Amp. 50/60 Hz: Built-in internal battery.
• Operating temperature: -30 to 50 ° C

Full Duplex, Power Meter, Terminal Load, Frequency Counter, SINAD Meter, Sweep Generator, Li-ION Battery.
