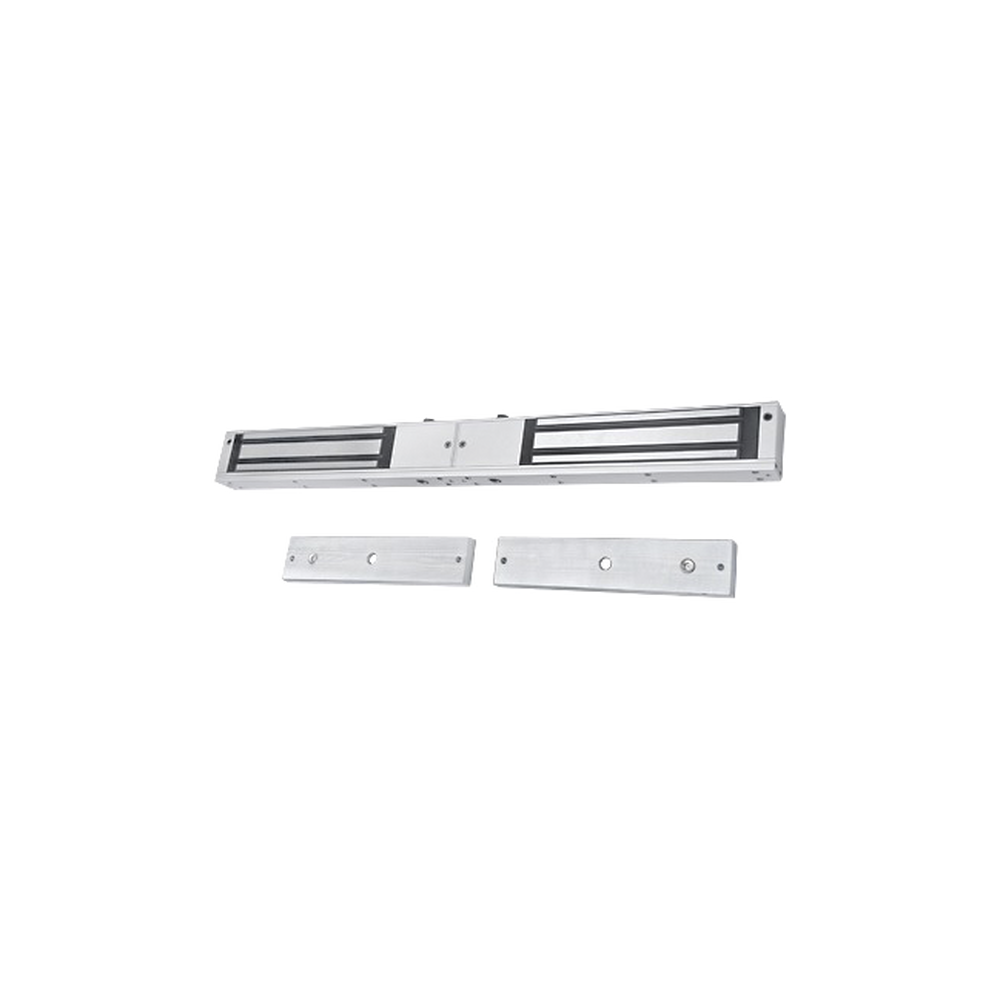

Double Electromagnet for Application on Double-leaf Doors / 600 lbs each

Double Electromagnet for Application on Double-leaf Doors / 600 lbs each

• Holding force: 280 kg (600 lbs) x 2.
• Voltage: 12/24 Vdc + 10% (selectable by jumper).
• Current consumption: 12V/1000mA, 24V/500mA.
• Operating temperature: 10 to 55ºC (14-131ºF).
• Operating humidity: 0-90% (non-condensing).
• Magnet finish: Anodized aluminum.
• Plate finish: Zinc.
• Plate: 180 x 38 x 11 mm each plate.
• 1 Year Warranty.
• BZL600 compatible mount (2 pieces).

NOTE : Timer not included, if timer is needed, MAG600TLED is required or PRODELAY can be added.
