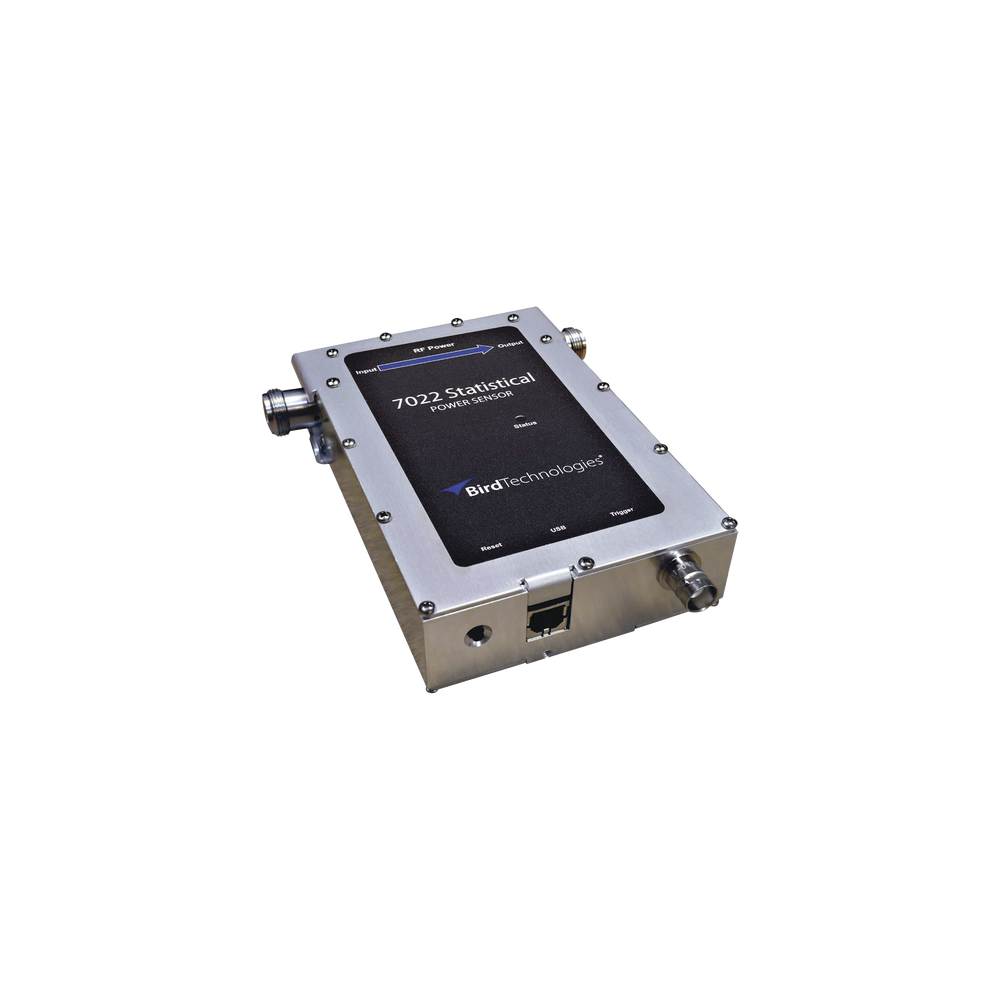

Statistical Sensor for Virtual Power Measurement (VPM) via USB on PC for 350-6000 MHz.

Statistical Sensor for Virtual Power Measurement (VPM) via USB on PC for 350-6000 MHz.

Virtual Power Measurement (VPM) sensor via USB on PC for 350-6000 MHz.

• In modern communications, average signal power, although important, is no longer a sufficient control variable.
• These communication signals often require further diagnostic measurements.
• In statistical mode, the power sensor measures the percentage of time the signal exists in a specific peak-to-average ratio.
• In time domain mode, the sensor adds a variety of oscilloscope-like functions to our standard set of measurements.
• The statistical power sensor can be used in all known communication formats and is capable of accurately measuring a wide range of RF measurements for aperiodic signals such as EVDO, UMTS, LTE and HDTV.
• Like all Bird sensors, its calibration can also be traced to NIST standards without the need for field calibration.

Applications:

• WPS Measures: Analog Cellular, Digital Cellular, 3G, 4G, Tetra, APCO/P25 Phase 1 & 2, DMR, MOTOTRBO, Tuning, CDMA, TDMA, WCDMA, GSM, Transport, Tactical Military, Radar, Avionics, Marine, LMR, Analog Broadcasting, Digital Broadcasting, GSM, GPRS, EDGE, UMTS, HSDPA, Bluetooth, Fire, GPS, NPSPAC, Public Address, Public Safety, Telematics, Utilities, WIMAX, WLAN, EVDO, UMTS, LTE, and HDTV.

Time Domain Mode:

• Detailed breakdown of single or multiple pulses.
• Includes a wide range of IEEE pulse parameters.
• Markers allow the user to focus on particular portions of the signal for analysis.

Statistical Mode:

• Analytical results of the signal of interest using CCDF parameters.
• Isolate and identify specific breakpoints using markers.

Average Power Mode:

• Extremely accurate true average power measurements.
• True average power measurement, Direct and Reflected.
• All related reflection calculations.
• Peak power measurement.
• Pulse power burst measurement.

General Characteristics:

• Measurement Type: Thru-Line Power.
• Frequency range: 350 MHz to 6 GHz
• Frequency Measurement Accuracy: ± 3MHz with CW signals.
• Power Measurement Range: 0.25 W to 500 W average,
• Dynamic range: 33 dB.
• Peak-to-Average Ratio: 12 dB, absolute peak power limited to 1500 W
• Impedance, Nominal: 50 Ohm.
• Insertion loss (max): 0.05 dB.
• VSWR (max): 1.065 from 350-2000 MHz; 1.12 from 2000-6000 MHz
• RF Connectors: N Female.
• Factory Calibration: NIST Traceable.
• Field Calibration: Not required.
• Data logging: Yes, with VPM3 software.
• Interface: USB 2.0 type B (USBTMC).
• Power supply: USB port.
• Sampling rate: 44 M samples/s max.
• Time resolution: 50nSec. to 10 Sec.
• Timebase accuracy: 0.01%
• Refresh rate: 10 times/sec (Limited by communication)
• Video Bandwidth: Adjustable: 20 MHz (none), 5 MHz, 400 kHz, 4.5 kHz.
• Points per screen: 1001
• Trigger Input Connector: BNC Female; (1MΩ Impedance; 3V High; 1.2V Low)
• Operating temperature: -10 to +50ºC (+14 to +122ºF).
• Storage temperature: -40 to +80ºC (-40 to +17ºF).
• Humidity (max): 95% maximum (non-condensing).
• Altitude (max): 15,000 ft (4,500 m).
• Dimensions, Nominal: 150 x 122 x 33 mm (5.9' x 4.8' x 1.3”).
• Weight: 681 gr (1.5 lb).
• Vibration and Mechanical Shock: IAW MIL-PRF-28800F Class 3.
• RoHS

Standard Accessories:

• 5A2653-6L SeaLatch™ USB Cable
• VPM3 Virtual Power Meter
• 920-7022 Statistical Power Sensor Manual.
• 920-VPM3 Virtual Power Meter Manual
• 5A2918-11-6 BNC/BNC Trigger Cable.
• VSWR 1.15 to 99.9
• Rho 0.07 to 1.0
