Fire-Lite Agent Release Control Panel

Fire-Lite Agent Release Control Panel

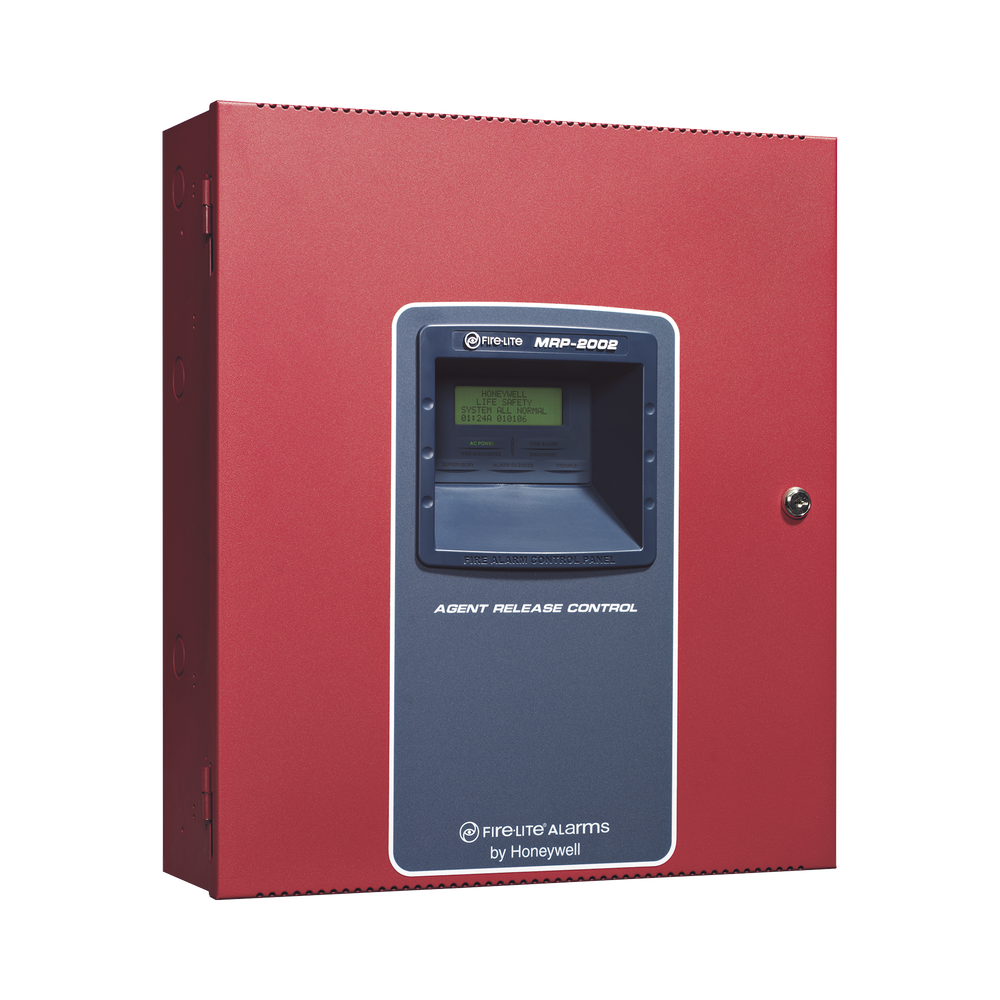

The MRP-2002 is a six-zone release fire control panel for single- and dual-hazard agent release applications. The MRP-2002 provides reliable fire detection, signaling, and protection for commercial, industrial, and institutional buildings requiring agent-based release.

Features and benefits of MRP-2002

• 6-zone Style B (Class B) or 6-zone Style D (Class A) with optional modules
• 4 Style Y (Class B) programmable output circuits or 4 Style Z (Class A) programmable output circuits with optional modules
• Programmable outputs to release solenoids
• Double risk operation
• Adjustable pre-flush, flush, and water flow delay timers
• Programmable abortion operation
• Cross-zone capacity
• Pre-programmed and custom application templates
• Built-in NAC synchronization for System Sensor, Wheelock, Gentex, Faraday, and Amseco devices
• Built-in programmer: Integral 80-character LCD display with backlight and keypad
• The annunciator bus supports up to 8 devices, including the ANN-80 LCD remote annunciator, serial or parallel remote printer port, and LED graphic annunciator
• 7.0 amps total draw current
