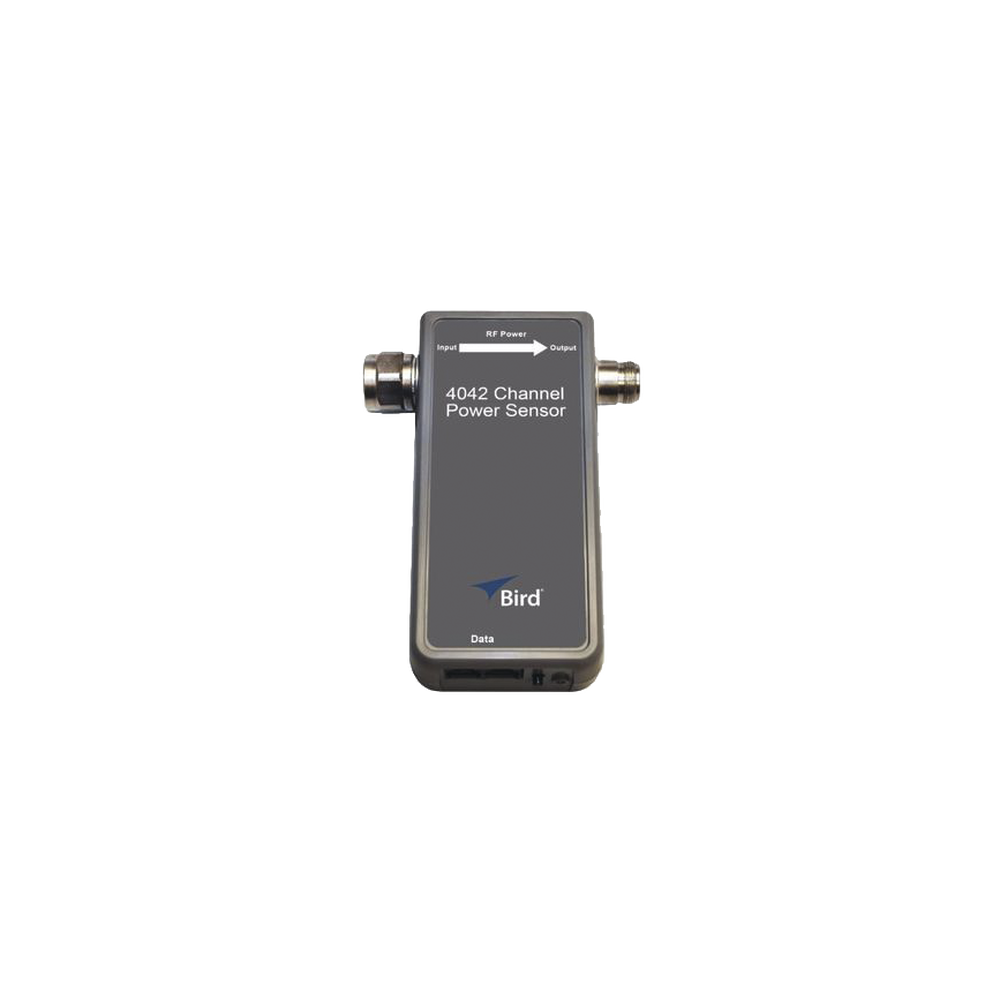

Broadband Channel Power Sensor, 100-1000 MHz.

Broadband Channel Power Sensor, 100-1000 MHz.

Broadband Channel Power Sensor, 100-1000 MHz.

• Model: 4042
• Description: Channeled Directional Power Sensor.
• Frequency Range: 100 to 1000 MHz (4042-1-430505-0201).
• Direct Average Power (Max): 1 to 500 Watt.
• Average Reflected Power (Max): 0.1 to 50 Watt.
• Dynamic Range: 13 dB.
• Operating Voltage: 7-18 Vdc.
• Operating Power: <500 mA (from 3141).
• Accuracy: +/- 5% of reading.
• Impedance: 50 Ohm.
• Insertion Loss: < 0.2 dB.
• VSWR per Insertion: < 1.15:1
• Intermodulation Distortion: <145 dBc (PIM).
• Instrument Interface: RS-485 via RJ-25 connector.
• RF Connectors: N Male and N Female.
• Power Supply: 7-18 Vdc, < 50 mA.
• Operating Temperature: 0 to 50ºC.
• Dimensions (Length x Width x Height): 132 x 96.5 x 35.5 mm.
• Weight: 0.3 Kg

*Ask for Delivery Time.
