Wireless Hub for Locks: Allows you to open doors via smartphone anywhere in the world!

Now you can open the door from anywhere in the world!

Yale Connect is an ecosystem for unlocking your door via your smartphone with Assabloy's autonomous locks.

Functions:

• Assign access codes to visitors so they can open the lock from anywhere in the world using their smartphone.
• Control access to locks by date and time.

How does it work?

• The lock communicates wirelessly (via proprietary protocol) to the HUB.
• The powered HUB also communicates wirelessly with your home or office router.
• Through the router, the device is registered in the cloud to a YALE server.
• Using your smartphone, you log into your personalized account in the YALE Connect app, and from there you can manage and open the door.

Watch the operation video

Qualities:

• Use your home or office Wi-Fi signal to manage your locks.
• Use of the system is free , there are no monthly charges for use or for additional users.
• Add users to control selected devices, allowing you to restrict usage by schedule (date/time).
• Create user codes (for digital door locks) for users without the Yale Connect app.
• See who has accessed your devices through an audit report.

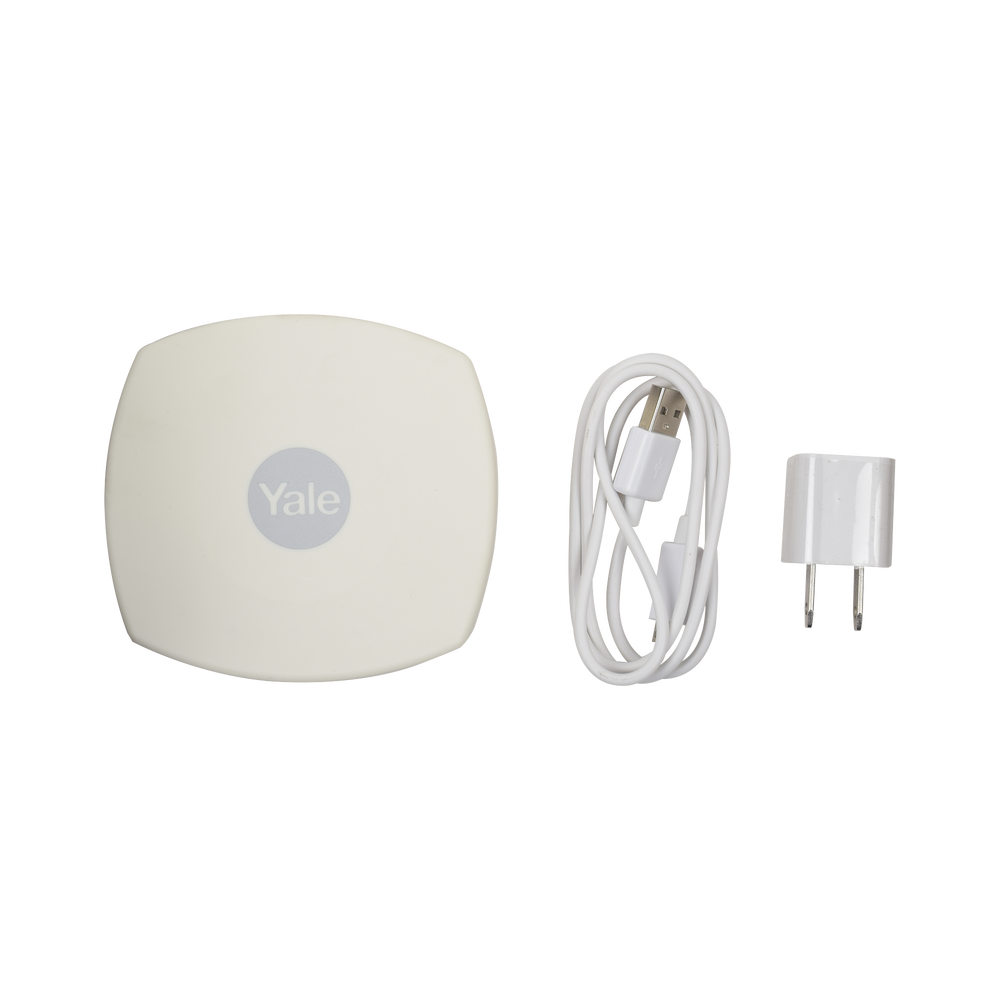

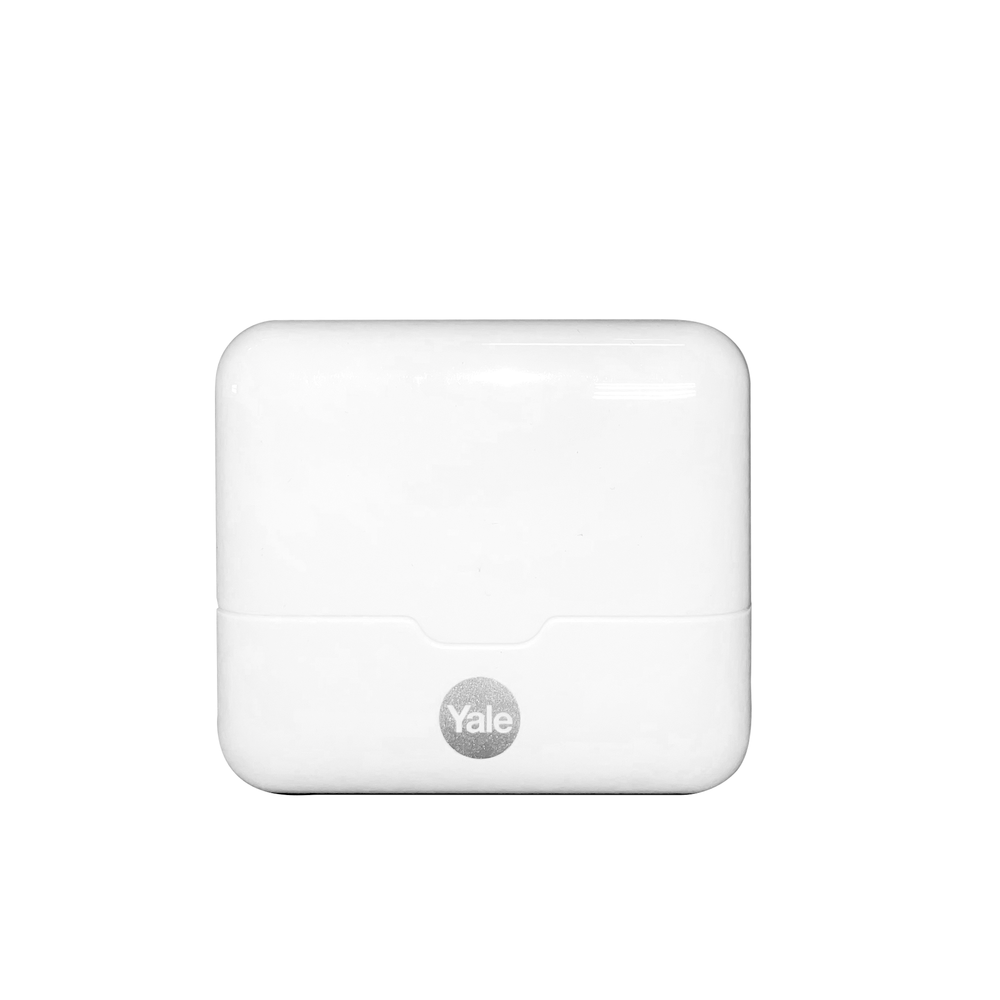

Hub Specifications:

• The Hub allows you to connect up to a maximum of 16 locks.
• Requires a Wi-Fi network for control.
• Compatible with YMF30/40 locks and Real Living series.
• Requires a Smartphone with at least iOS7+ or Android 4.0.3+ operating system
• Power supply: 5V, 1A, consumes 1W (included).
• Micro USB input.
• Compatible with 2.4 GHz Wi-Fi.

Lock compatibility :

• Biometric lock YDF40 ( 89187 ), Biometric lock with handle YMF40 ( 882855 89186 ), (require SMART Connect module 89325 ).
• Real Living Lock with handle YRL221 ( 89066 ), Real Living Lock YRD221 ( YRL-TOUCH ) (requires SMART Connect module 89324 ).

Ready-to-install kits!

• Real Living Kit

• Real Living Kit with handle

• YDF40 Biometric Kit

• YMF40 Biometric Kit with handle

• Electric Lock Kit 321DC Right

• 321DC Left Electric Lock Kit

Frequently Asked Questions:

• How many Hubs can I associate with the application?
  • You can associate 16 Hubs with the application, considering 16 locks per Hub you can have up to 256 locks in the application.

• How many administrators does the application support and how many simultaneous users can be associated per HUB?
  • • You can only have one administrator account, which can be logged in on multiple devices at the same time.
• How long does it take to change a password for a specific Hub?
  • There is a delay of less than a minute when registering a new guest.

• How long does the battery last on each device?
  • With average use, the battery lasts approximately 1 year; with more than normal use, it can last up to 6 months. The lock gives an alarm when it is about to run out of battery, both locally and through the cell phone application.
• Do you have a demo I can access of the already installed app associated with Hub and smart locks?
  • At this time, there is no demo system; however, a basic system with one lock and one Hub would be necessary for testing.
• Is all equipment management done through the application, or can it also be done through computer software or web access?
  • All administration is done through the mobile app; it's not possible through computer software or web access.
• Can the system generate reports on opening and closing, pre-alarms or faults, for example, a device battery failure, and report them to the application and/or platform?
  • The system displays opening and closing usage records, whether by keypad, manual, or app. It also has push notifications that indicate the lock's status, whether it's open or closed. NOTE: This only indicates the status of the lock, not the door itself. If the door was forced in any way without modifying or forcing the lock, the app will not display it.
• Is there a way to know if the door is open or closed? Does the device have a position sensor or magnetic status contact to differentiate between open and closed, and is this reflected in the app?
• As mentioned in the previous question, the app does have the status of the lock, but not the door, even when there is a magnetic contact.
• Do you have any presentation or video that I can present to my client?
  • You can watch the following video: https://www.youtube.com/watch?v=_gLu33hS47o&feature=emb_logo
