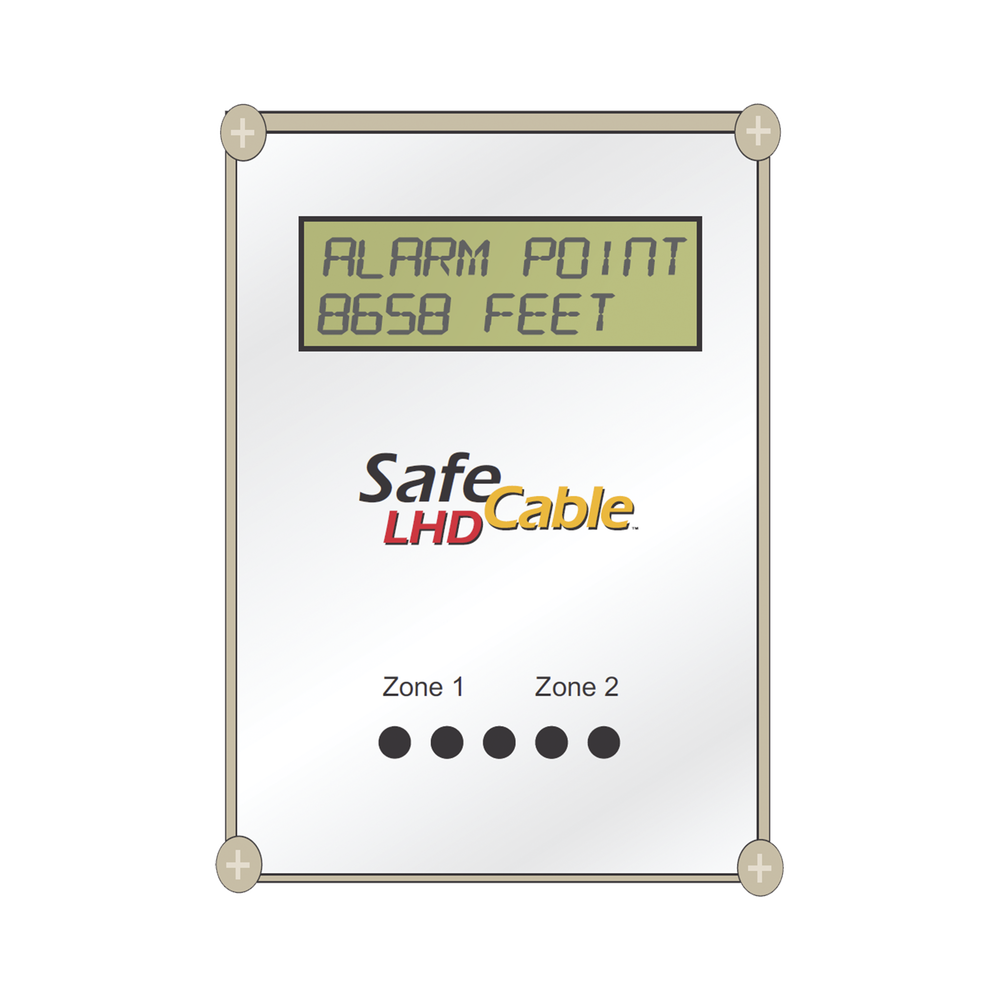

Dual Zone Distance Locator Module for Heat Detector Cable

Dual Zone Distance Locator Module for Heat Detector Cable

• UL Approved
• It can be one or two zones
• Single or cross zone
• Displayed in feet or meters
• Each zone can use the same or different temperature cables.
• If two different temperatures are used, one can be a pre-alarm
• Can be used with ANY UL Listed Panel
• Compatible with cable for linear temperature detection model:

TC-155NG
TC-190NG
TC-220NG
TC-365NG

• Operating temperature: -20°C to 50°C
• Power supply: 24VDC
• Standby current: 8 mA
• Alarm current: 28 mA
• Enclosure: NEMA 4x
• Maximum LHD Length: 4,571 m
• Dimensions: 180 x 120 x 60.5 mm
