600 lbs Magnetic Plate with LED/ Plate Lock Sensor/ Timer

600 lbs Magnetic Plate with LED/ Plate Lock Sensor/ Timer

$190.378 COP
$208.226 COP $190.378 COP
Sale Sold out
Shipping calculated at checkout.

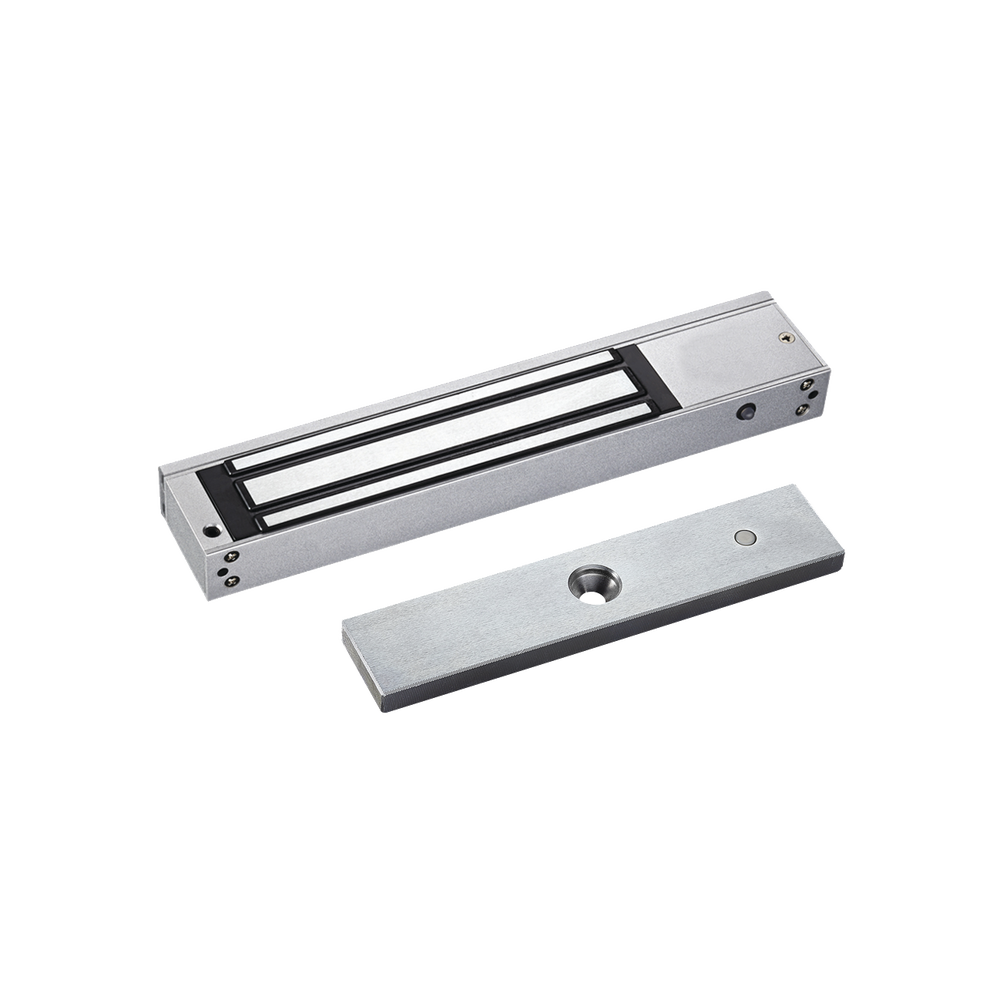

600 lbs Magnetic Plate with LED/ Plate Lock Sensor/ Timer

The MAG600TLED magnetic lock includes a timer for when you need to delay the door closing, for example in a simple button and lock application.
  • Holding force: 280 kg, (600lbs).
  • Lock timer of 0, 3, 6 or 9 seconds.
  • Voltage: 12/24 Vdc+10% (selectable by jumper).
  • Current consumption:12V/500mA,24V/250mA.
  • Operating temperature: 10 to 55 oC (14- 131 oF).
  • Operating humidity: 0 to 90% (non-condensing).
  • NO/NC door sensor
  • Magnet finish: Anodized aluminum.
  • Plate finish: zinc.
  • Magnet dimensions: 250 x 48.5 x 25 mm.
  • Plate dimensions: 180x38x11 mm.
  • Weight: 2.1 kg.

For installation it requires bracket model BZL600N.
Compatible with braces:
BU600LED U-type mounting for glass doors

*1 Year warranty.

    Out of stock

    MODELO: MAG600-TLED
