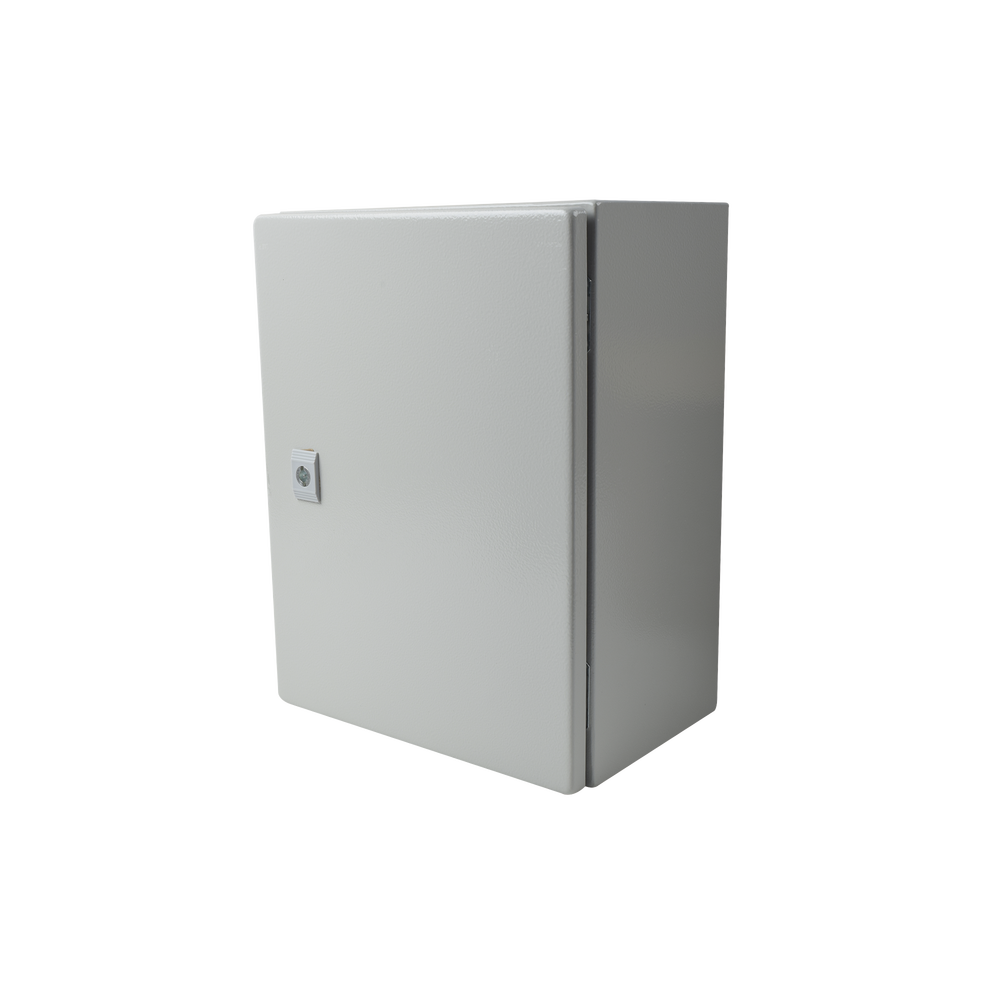

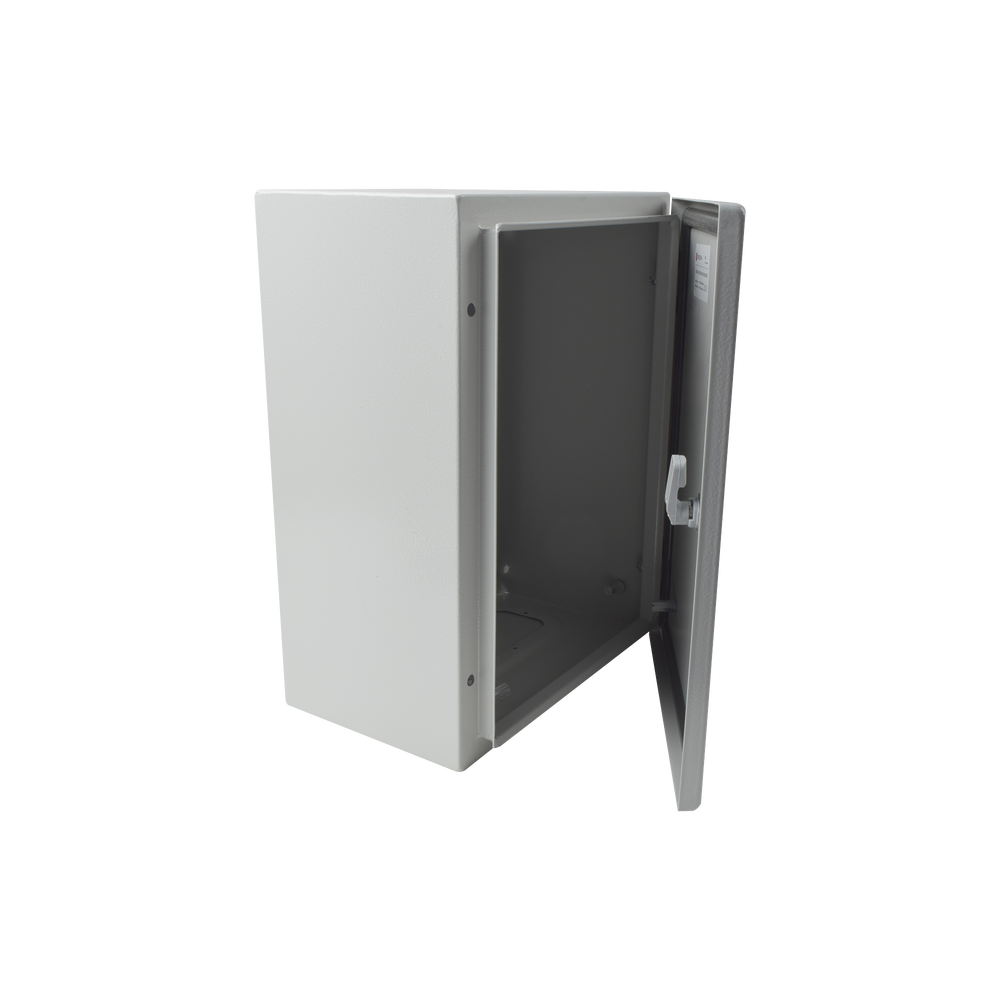

IP66 Outdoor Steel Cabinet (300 x 400 x 200 mm) with Inner Back Plate and Bolt-on Bottom Door (Includes Key and Key).

IP66 Outdoor Steel Cabinet (300 x 400 x 200 mm) with Inner Back Plate and Bolt-on Bottom Door (Includes Key and Key).

Steel enclosure for use in outdoor applications such as poles, telecommunication towers, or walls where protection against rain or excessive dust is not available.


Physical characteristics:
Material: Steel.
Paint: Polyester-based powder.
Protection level: IP66
Impact resistance: IK10
Back plate material: Galvanized steel.
Weight: 7.07 kg
Dimensions: 300 x 400 x 200 mm (width x height x depth).
Maximum storage weight: 30 kg.

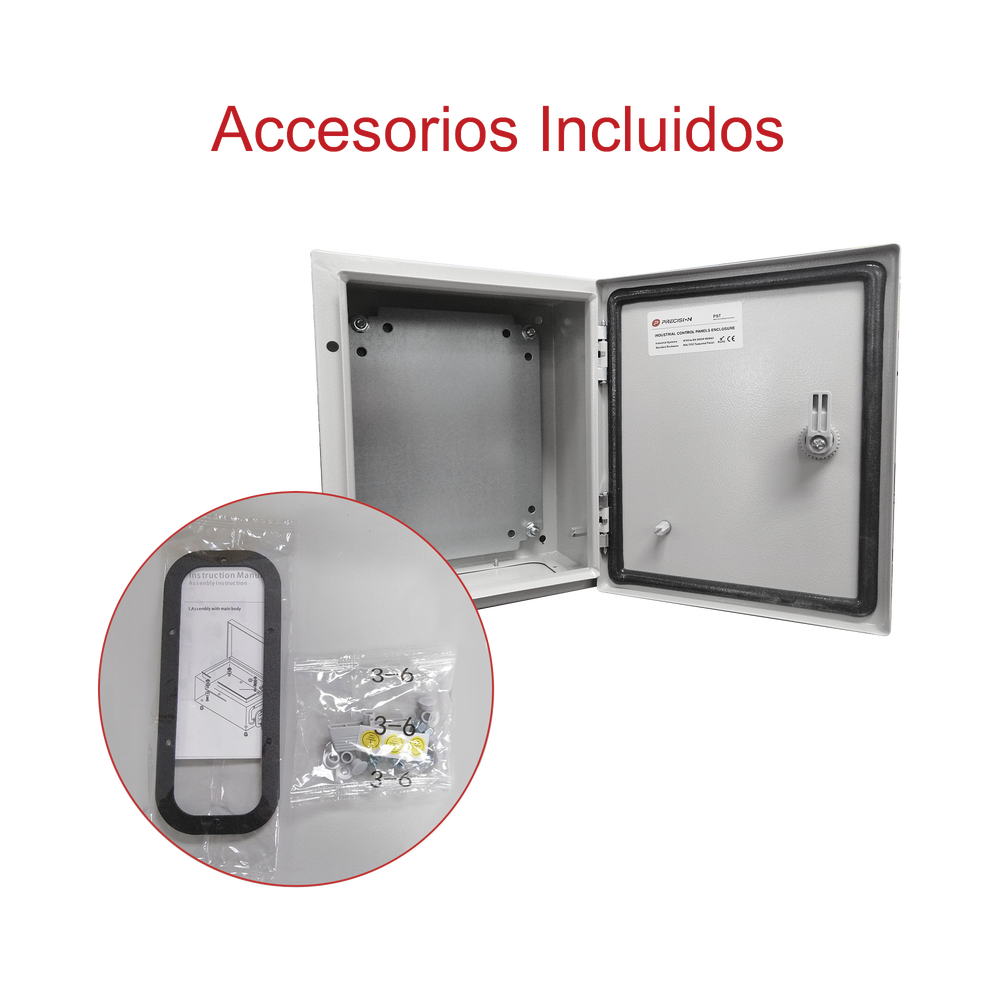

Includes:
Steel body and door.

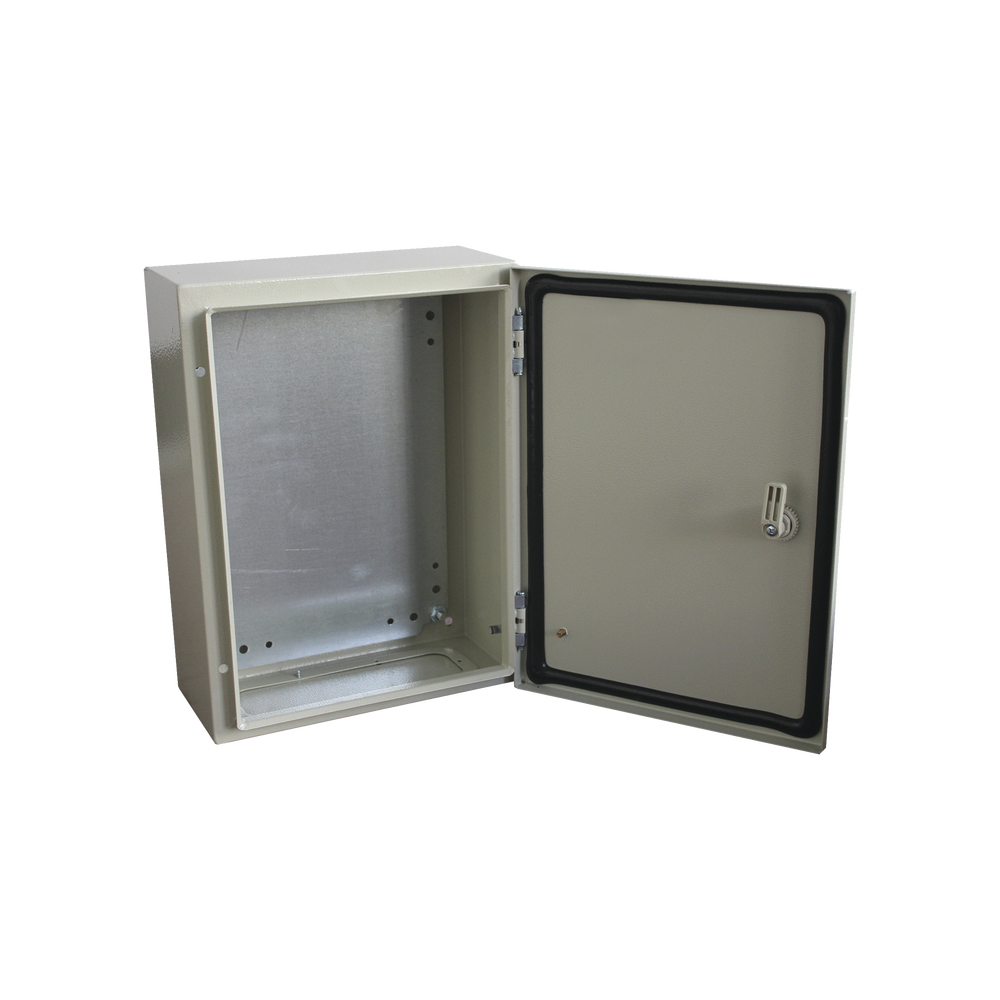

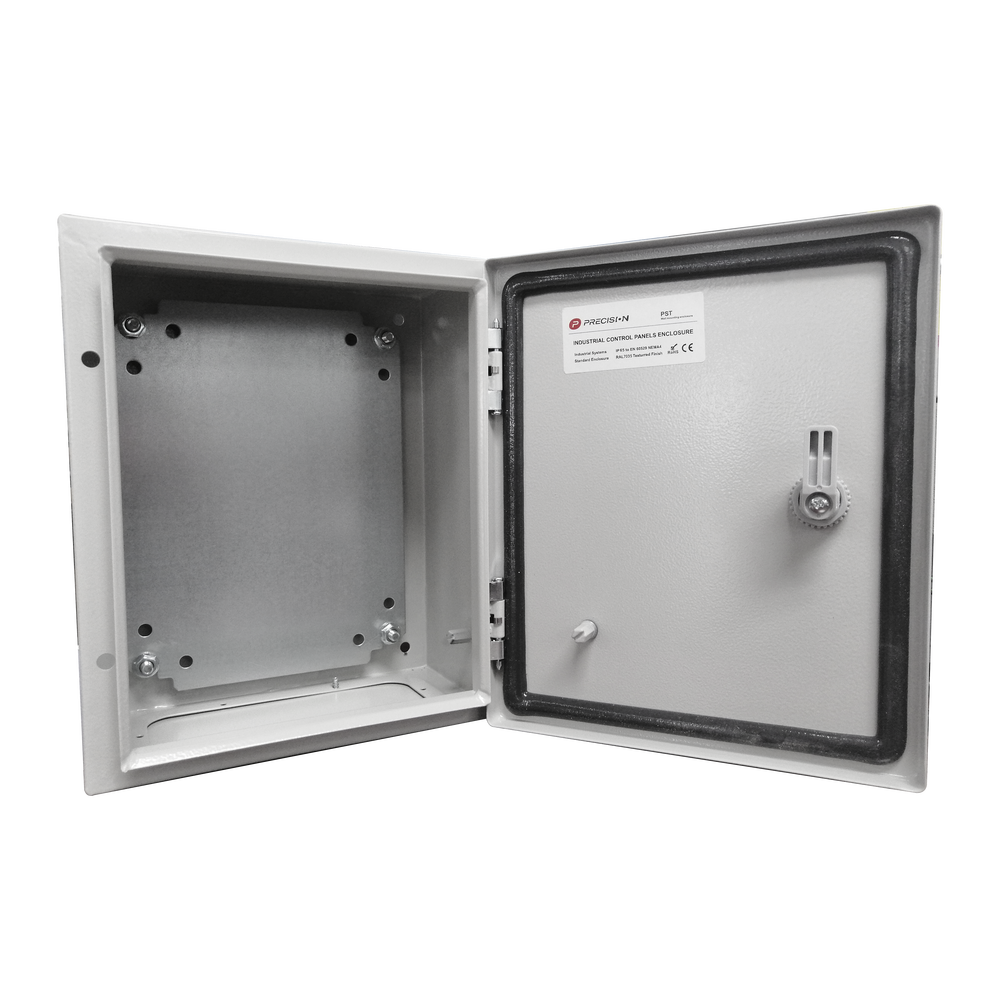

Back plate for mounting equipment.
Security lock with key.

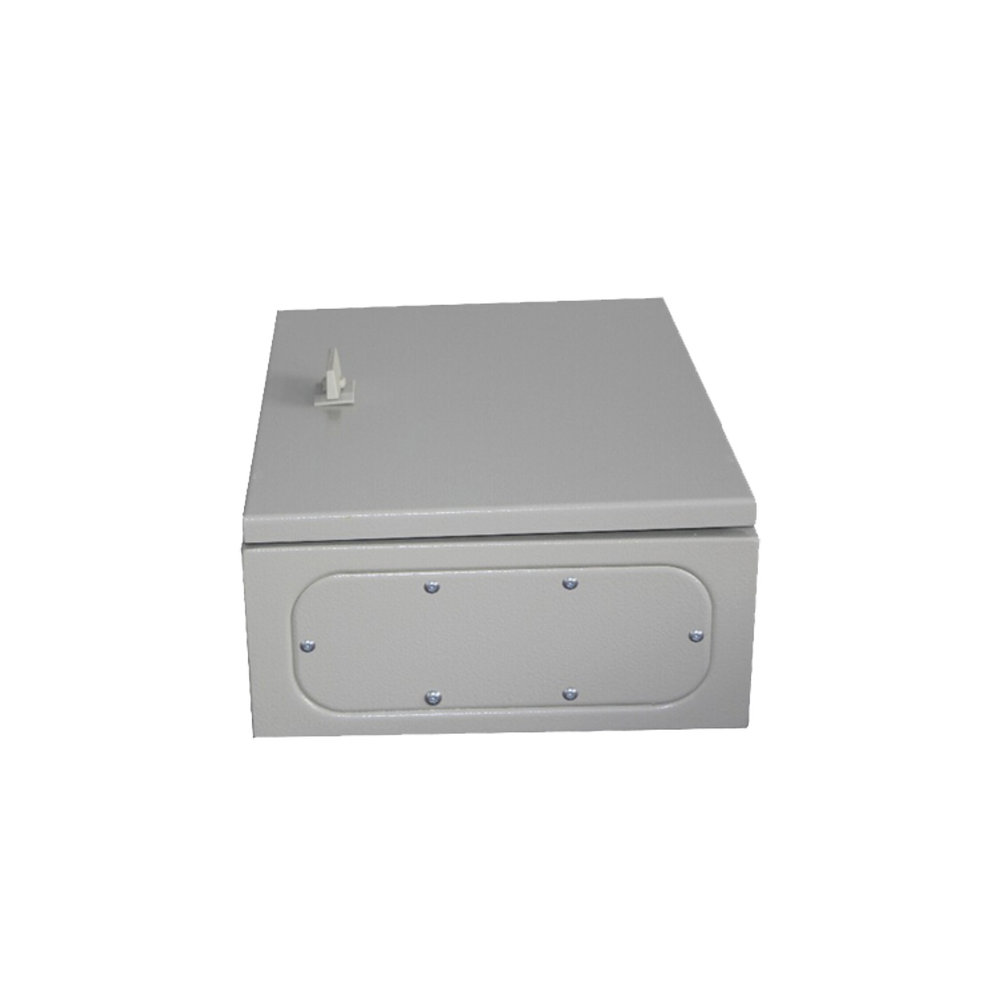

Bottom cover for installing gland type connectors.
Packing

Application:
Installation of POE's on a tower, pole or wall.
Battery storage (recommended to add breather).
Protection of surge protectors, fuses or electrical boards.

It is recommended to use gland type connectors for wiring output ( See models ).

Technical note: Fan installation is possible, however the holes must be manually drilled into the cabinet.
