• Conector 4.3-10 Macho Para Cable de 7/8 AVA5-50 y AVA5-50FX
1 1

ANDREW / COMMSCOPE

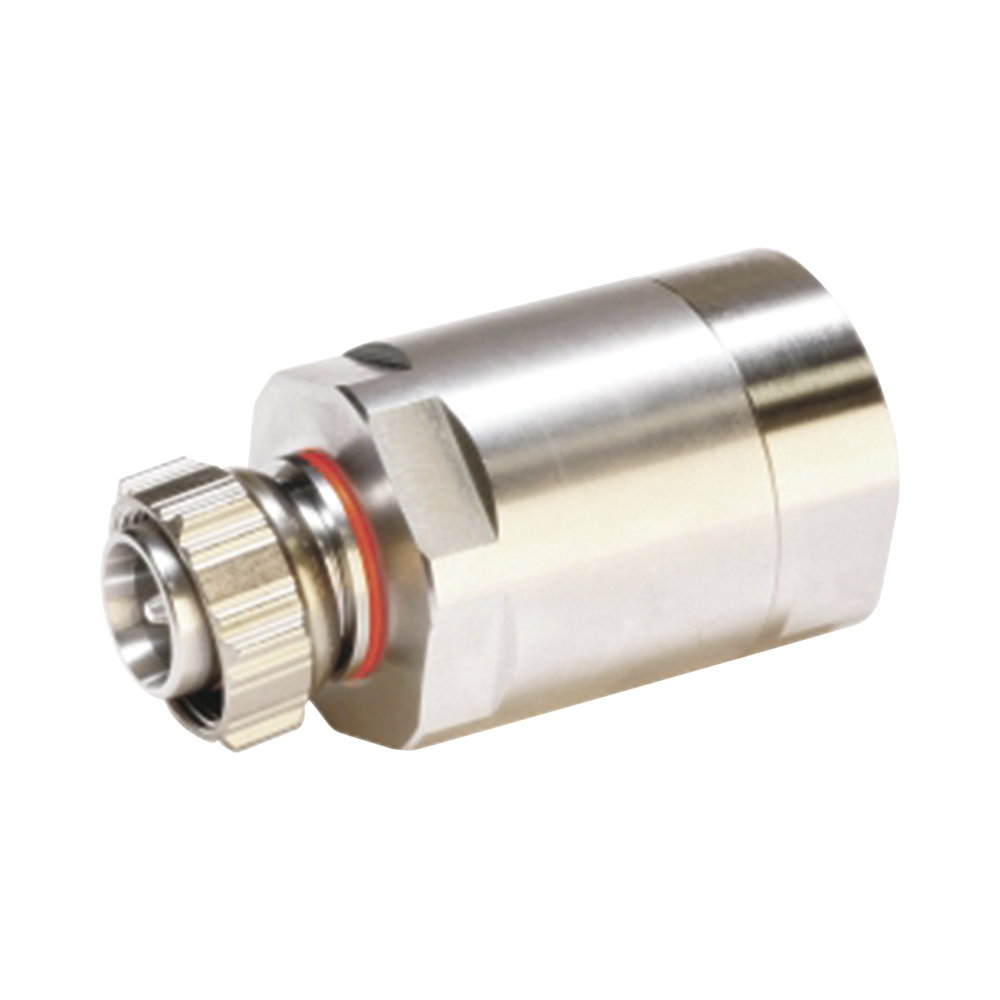

4.3-10 Male Connector For 7/8 AVA5-50 and AVA5-50FX Cable

4.3-10 Male Connector For 7/8 AVA5-50 and AVA5-50FX Cable

$324.645 COP
$355.081 COP $324.645 COP
Sale Sold out
Shipping calculated at checkout.

4.3-10 Male Connector For 7/8 AVA5-50 and AVA5-50FX Cable

General Specifications
Interface  4.3-10 Male
Body Style  Straight
Mounting Angle  Straight
Ordering Note  CommScope® standard product (Global)

Electrical Specifications
Connector Impedance  50 ohm
Operating Frequency Band  0 – 5000 MHz
Cable Impedance  50 ohm
3rd Order IMD Dynamic Test Method  Two +43 dBm carriers
3rd Order IMD, typical  -166 dBc @ 1800 MHz
3rd Order IMD Test Method  Two +43 dBm carriers
RF Operating Voltage, maximum (vrms)  1415.00 V
DC Test Voltage  4000 V
Outer Contact Resistance, maximum  1.50 mOhm
Inner Contact Resistance, maximum  0.40 mOhm
Insulation Resistance, minimum  5000 MOhm
Average Power  3.0 kW @ 900 MHz
Peak Power, maximum  40.00 kW
Insertion Loss, typical 0.05 dB
Shielding Effectiveness  -130 dB

    Out of stock

    MODELO: A5HM-D
