Unmanaged Desktop PoE Switch 5 ports 10/100 Mbps, 4 PoE ports, 58 W

Unmanaged Desktop PoE Switch 5 ports 10/100 Mbps, 4 PoE ports, 58 W

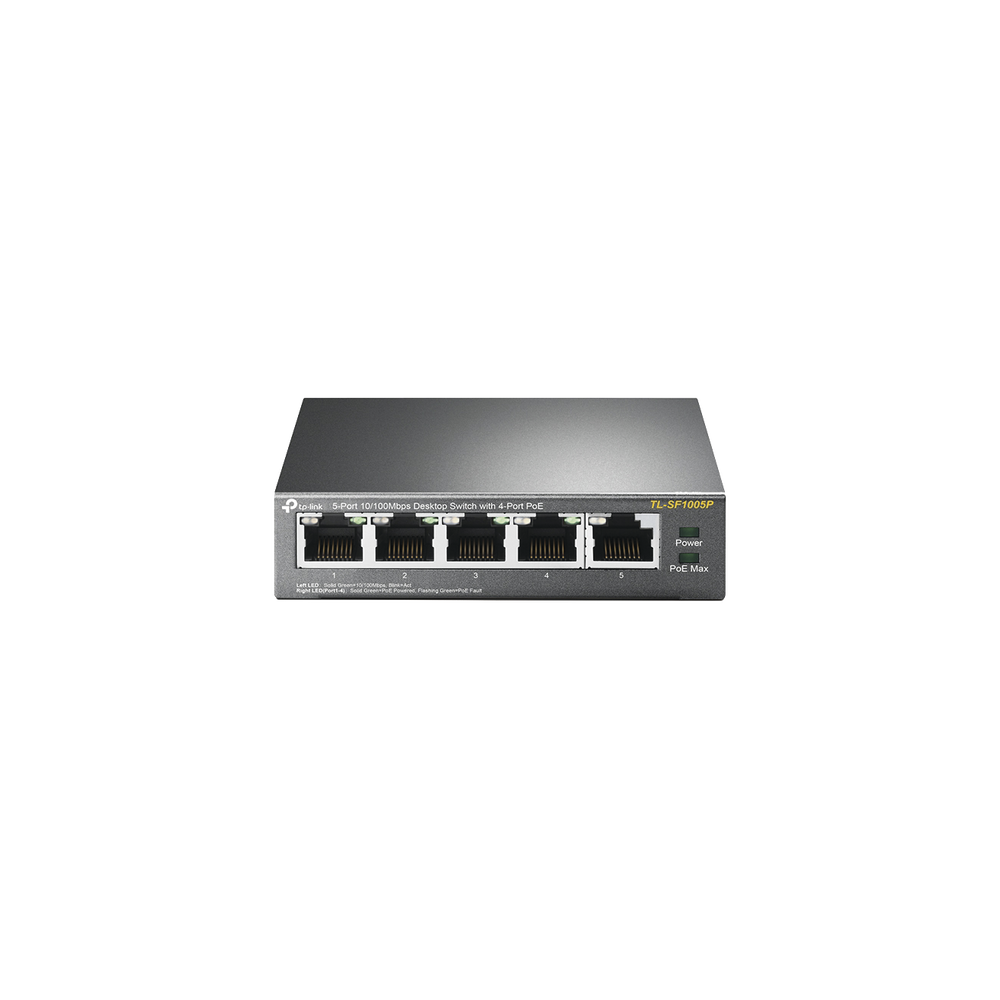

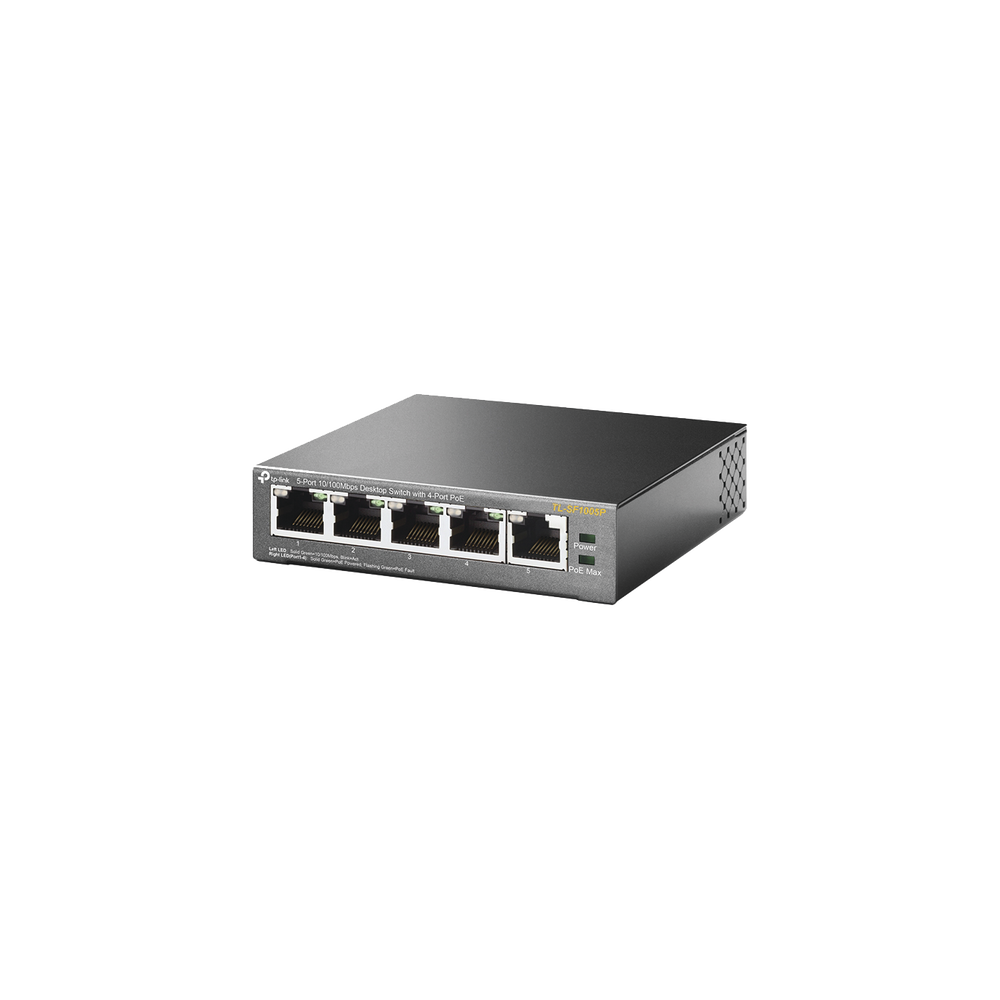

The TL-SF1005P is a 5-port, zero-configuration, 10/100Mbps unmanaged switch with 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power to all IEEE 802.3af-compliant powered devices (PDs). In this situation, power is transmitted along with data on a single cable, allowing you to expand your network to where there are no power lines or outlets, such as where you want to service devices such as APs, IP cameras, or IP phones.

Ports

• 5 10/100 Mbps Ports

PoE Features

• 802.3af Standards
• PoE Ports: 4 Ports
• 58 W

Characteristics

• 5 10/100Mbps RJ45 ports
• With four PoE ports, transfer data and power with a single cable
• By working with IEEE 802.3af compliant PDs, the home and office network is expanded
• Supports PoE Power up to 15.4W per PoE port
• Supports PoE Power up to 58W for all PoE ports
• No configuration or installation required

Includes

• TL-SF1005P
• Power adapter
• User Guide

Physical and Electrical Characteristics

• Operating temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
• Storage temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Operating humidity: 10% ~ 90% RH non-condensing
• Storage humidity: 5% ~ 90% RH non-condensing
• Power Consumption: 1.70 watts (maximum without PD connected) 63.51 watts (maximum with 58w PD connected)
• Dimensions 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
