Fire Detection Panel / Addressable / Up to 150 Points / 75 Detectors and 75 Modules with SK or IDP Technology / 2 NACs / Network Connection up to 32 Panels

Fire Detection Panel / Addressable / Up to 150 Points / 75 Detectors and 75 Modules with SK or IDP Technology / 2 NACs / Network Connection up to 32 Panels

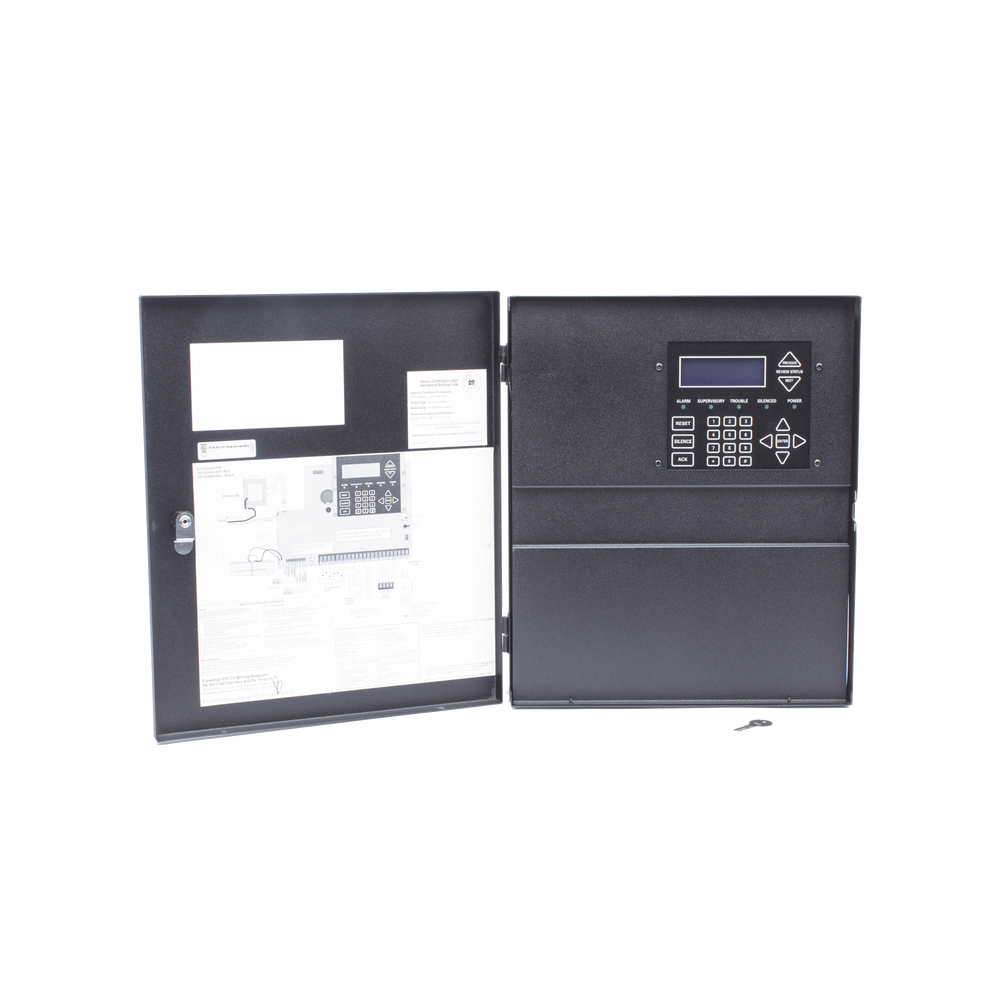

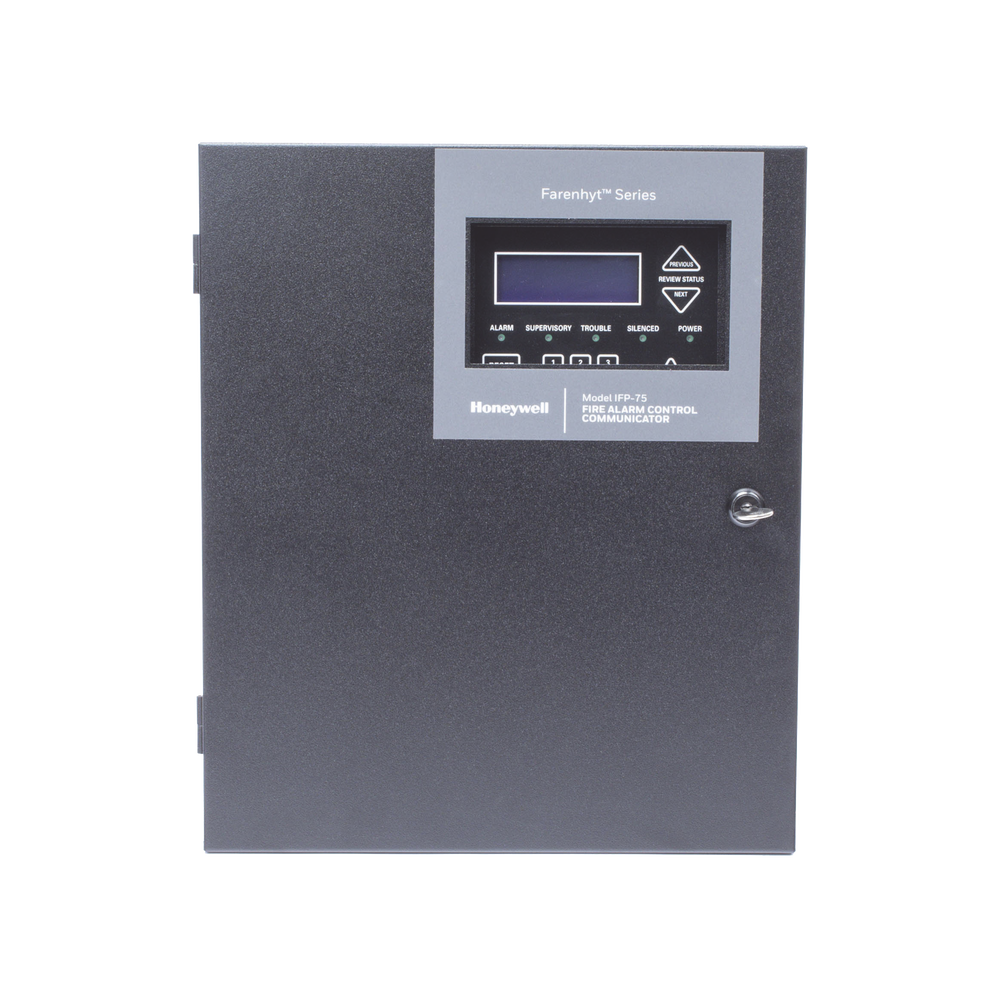

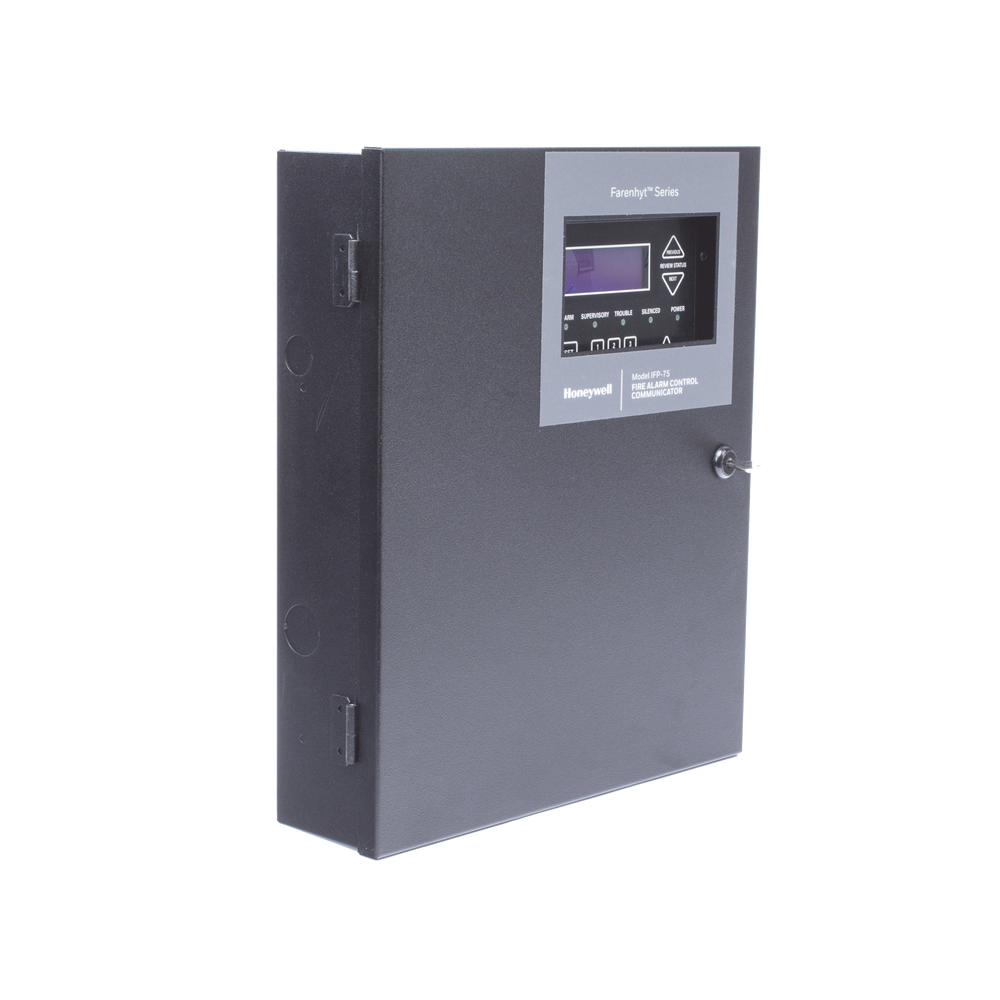

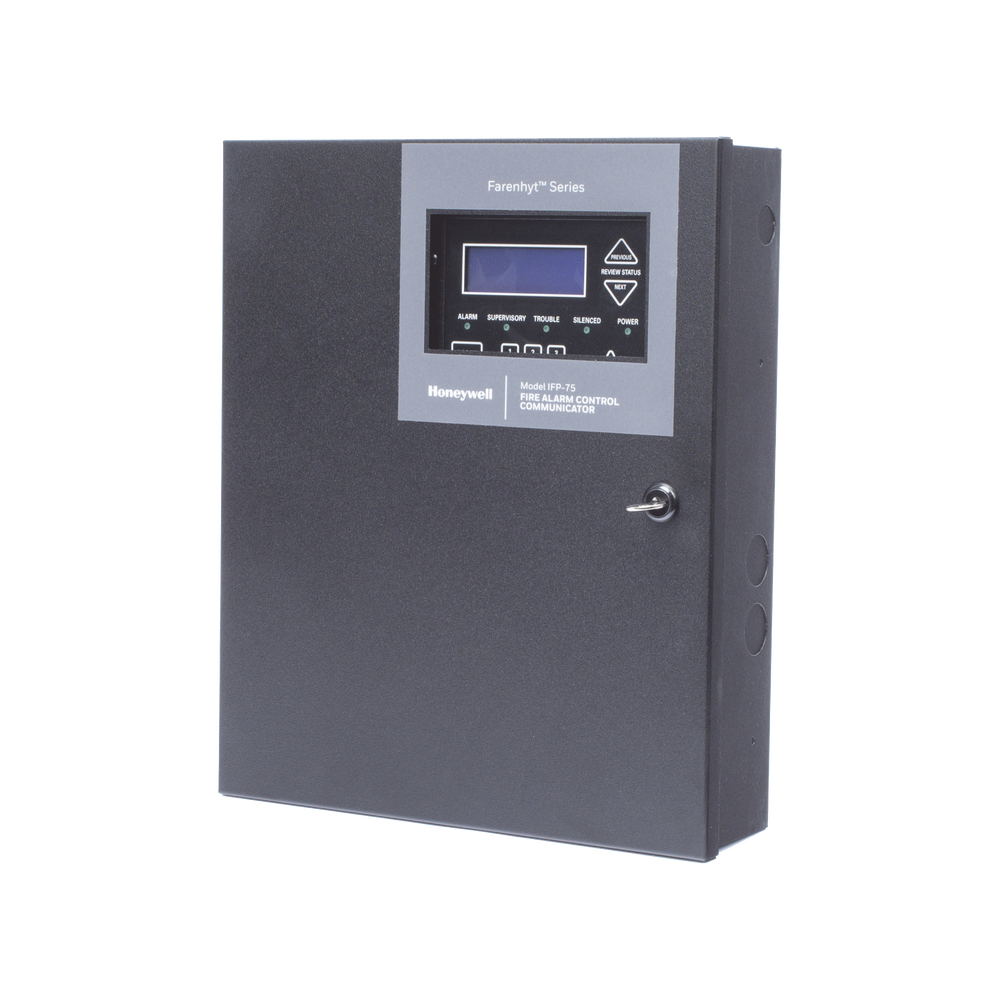

The IFP-75 (red) and IFP-75B (black) are addressable analog fire alarm control panels (FACPs). The IFP-75 has a single line circuit (SLC) for connecting addressable detectors, which can support 75 IDP/SK sensors and 75 IDP/SK modules or 75 SD devices per loop. For System Sensor devices, the point capacity is a maximum of 150 points per panel, or for Hochiki (SD) devices, the total point capacity is up to a maximum of 75 points per panel.

The IFP-75 has the ability to network up to 32 panels. The network offers two operating modes: multiple panels covering a large building, or multiple independent buildings. To network panels, use the SK-NIC network interface card. Copper and fiber optic cables can be used within the same network system.

The IFP-75 has a built-in dual-line IP telephone digital communicator with optional cellular communication module, Form C trouble relay, and two programmable Form C relays.

The IFP-75 offers powerful features such as detector sensitivity, day/night thresholds, drift compensation, pre-fault maintenance alert, and calibration problem alert. The IFP-75 supports a variety of devices, including RA-2000, RA-1000, or RA-100 remote annunciators, a 5824 parallel/serial printer interface module, an RPS-1000 power module, and IDP, SK, or SD devices.

Supports SWIFT wireless devices, Built-in IP communicator, Pathway compatible
