Fire Detection Panel / Addressable / Up to 2100 Points / 159 Detectors and 159 Modules with SK or IDP Technology per SLC Loop / 4 NACs / Network Connection up to 32 Panels

Fire Detection Panel / Addressable / Up to 2100 Points / 159 Detectors and 159 Modules with SK or IDP Technology per SLC Loop / 4 NACs / Network Connection up to 32 Panels

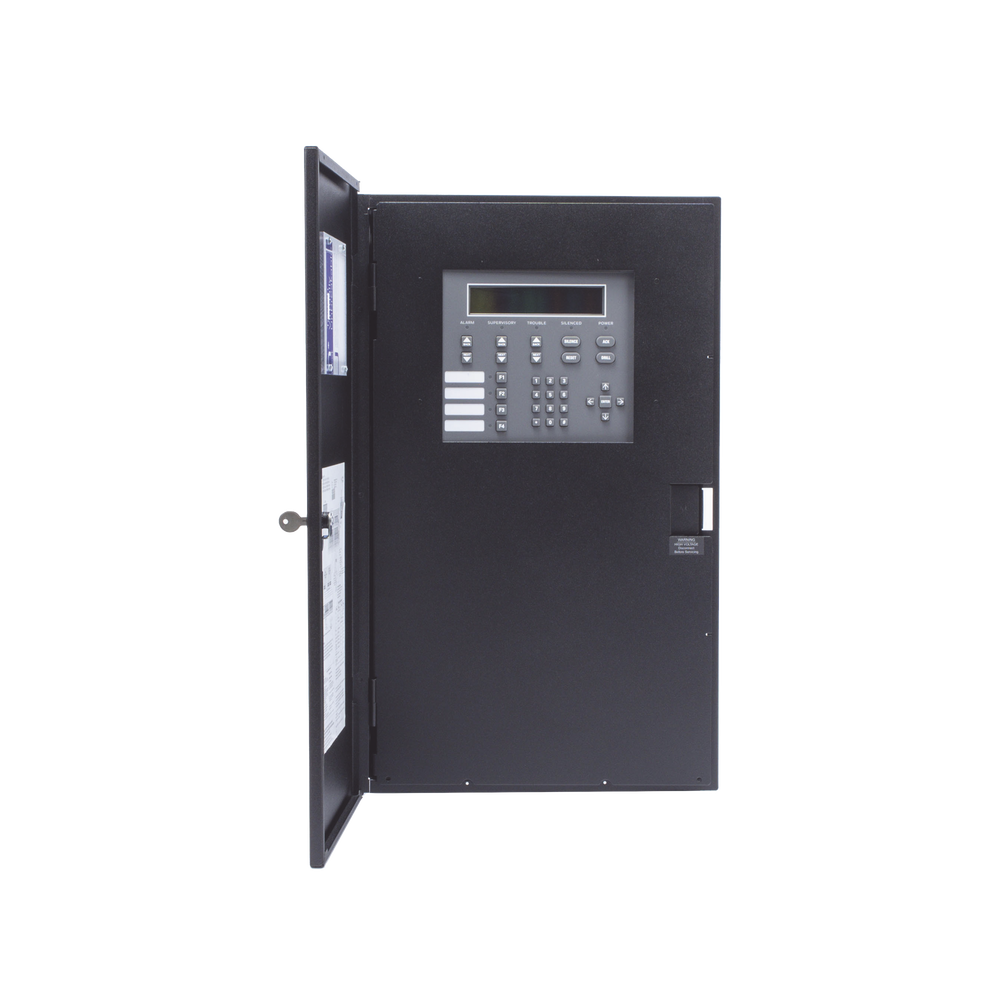

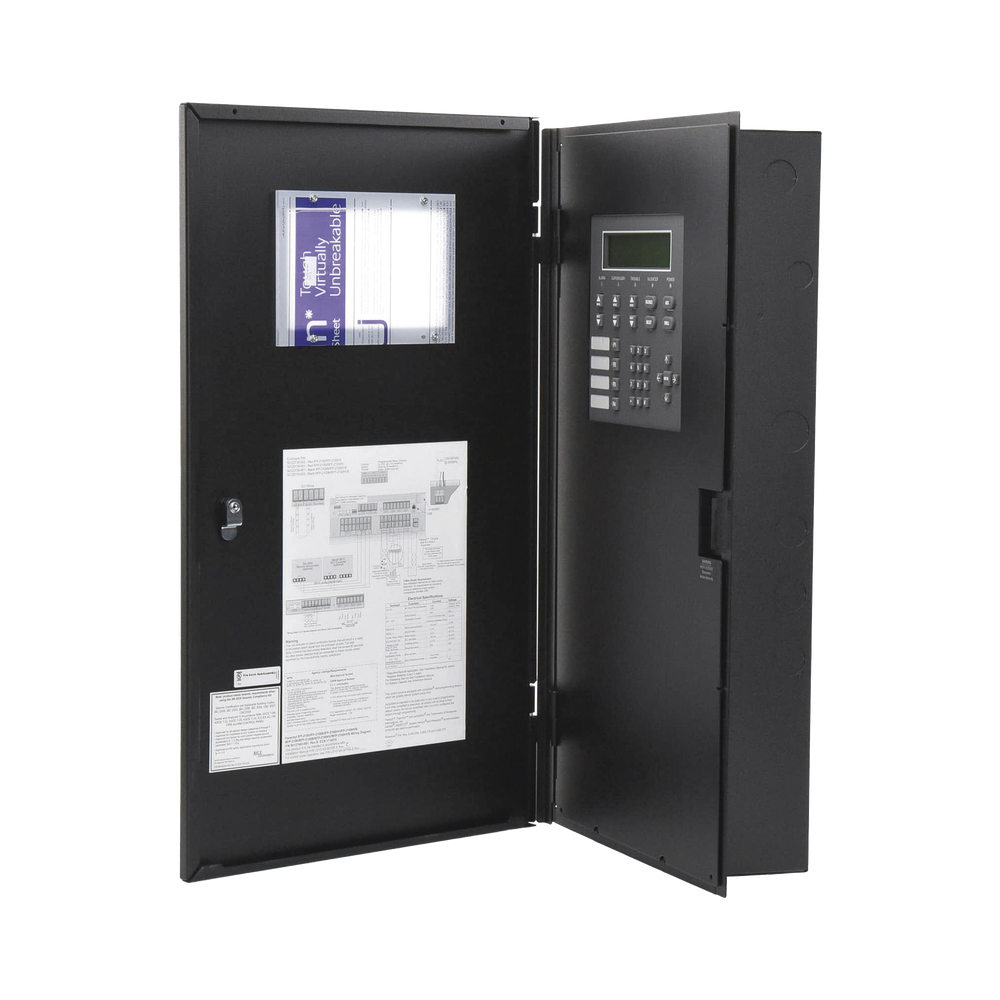

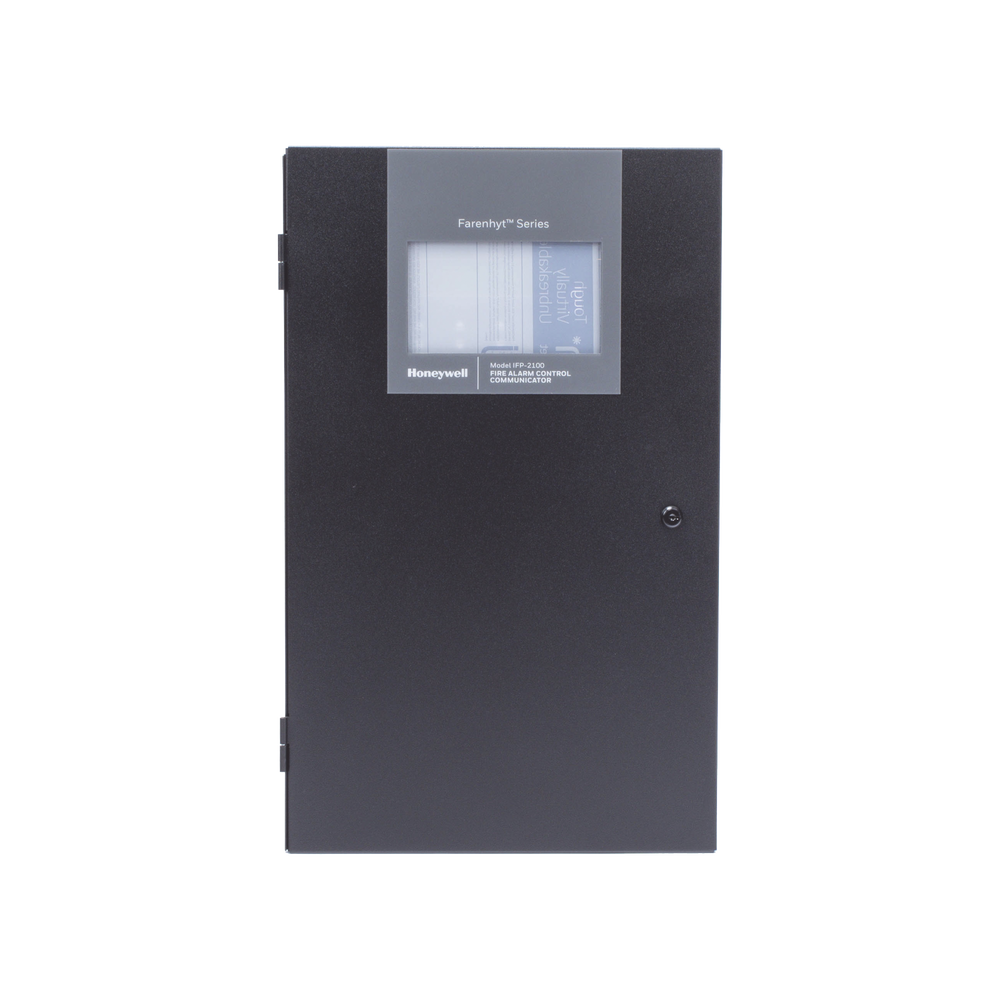

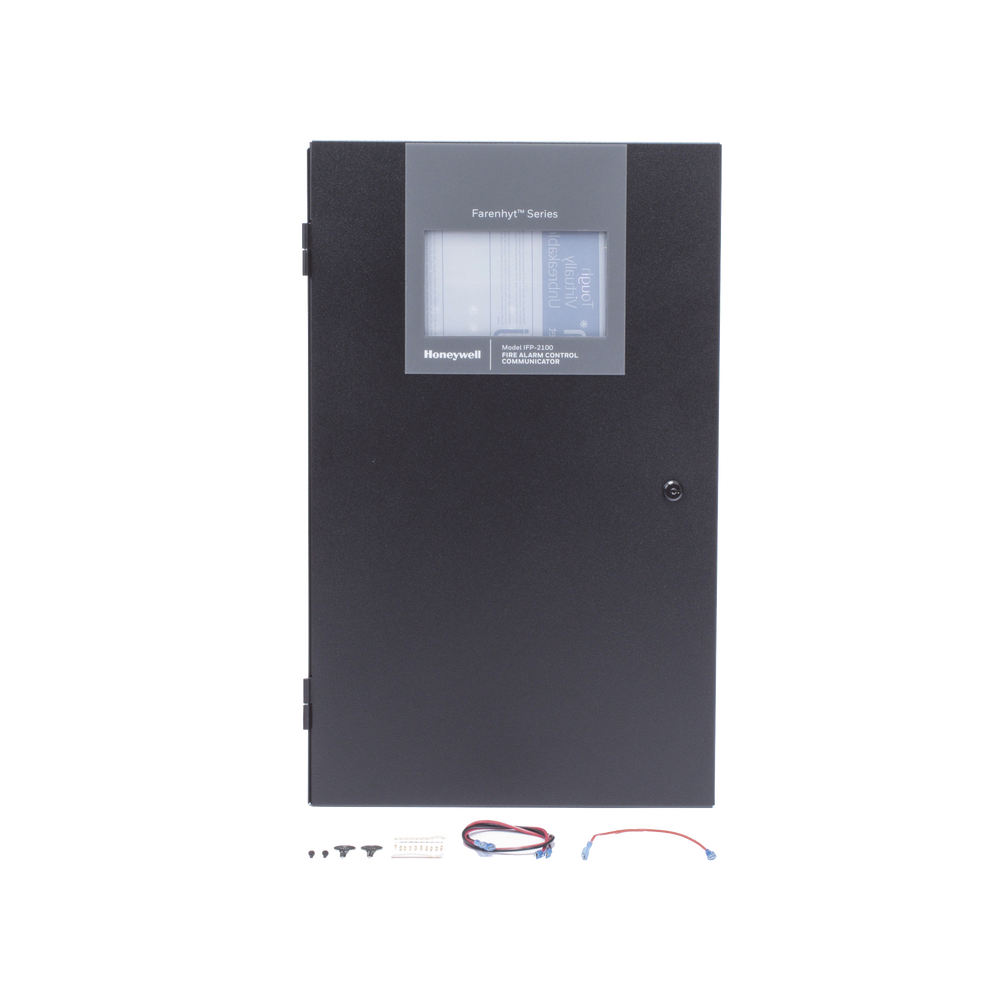

The IFP-2100 (red) and IFP-2100B (black) are addressable analog fire alarm control panels (FACPs). The basic IFP-2100 panel contains a built-in Signaling Line Circuit (SLC), supporting 159 IDP/SK sensors and 159 IDP/SK modules or 127 SD devices. Additional SLC loops can be added using the Model 6815 SLC Expander for System Sensor Devices (IDP/SK) to increase the total point capacity to 2,100 points per panel; or the Model 5815XL for Hochiki (SD) devices to increase point capacity to a maximum of 2,032 points per panel.

The IFP-2100 has the ability to network up to 32 panels. The network has two operating modes: multiple panels covering a large building, or multiple independent buildings. The RFP-2100 (red) or RFP2100B (black) can be used in a networked system where at least one IFP-2100 is in the system; this is the same as the IFP-2100 without the display.

The IFP-2100 has eight Flexput™ ICs that can be configured for auxiliary power, notification outputs, NO dry contact inputs, or conventional smoke detector inputs (Class A or Class B). The FACP also has built-in communicators; a dual-line digital alarm transmitter (DACT), an IP communicator, and an optional cellular communicator. It contains one Form C trouble relay and two programmable Form C relays.

The IFP-2100 offers powerful features such as detector sensitivity, day/night thresholds, drift compensation, pre-fault maintenance alert, and calibration problem alert. The IFP-2100 supports a variety of devices, including the RA2000, RA-1000, or RA-100 remote annunciators, the 5824 parallel/serial printer interface module, the RPS-1000 power module, and IDP, SK, or SD devices.

Supports SWIFT wireless devices, Built-in IP communicator, Pathway compatible
