Addressable Fire Detection Panel / 100 Points: 50 Detectors and 50 Modules with SK Technology / 2 NACs / Network Connection up to 17 Panels

Addressable Fire Detection Panel / 100 Points: 50 Detectors and 50 Modules with SK Technology / 2 NACs / Network Connection up to 17 Panels

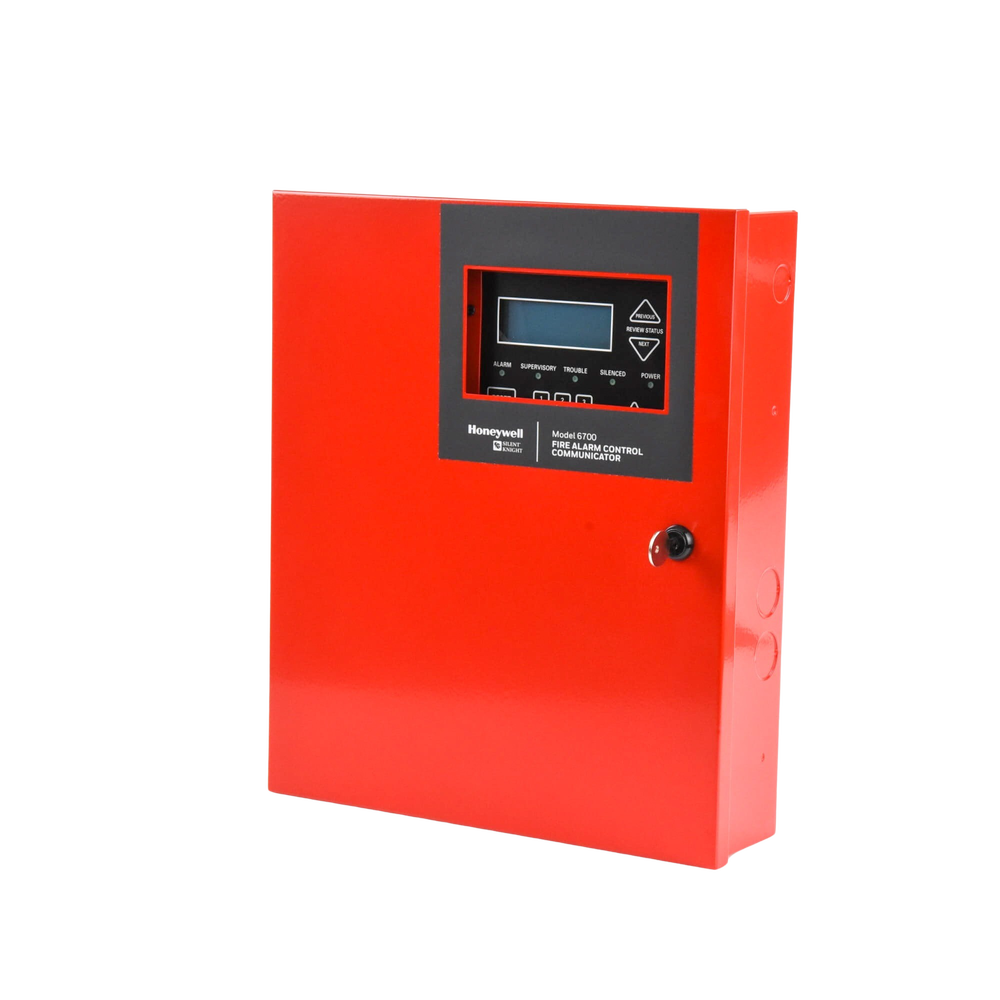

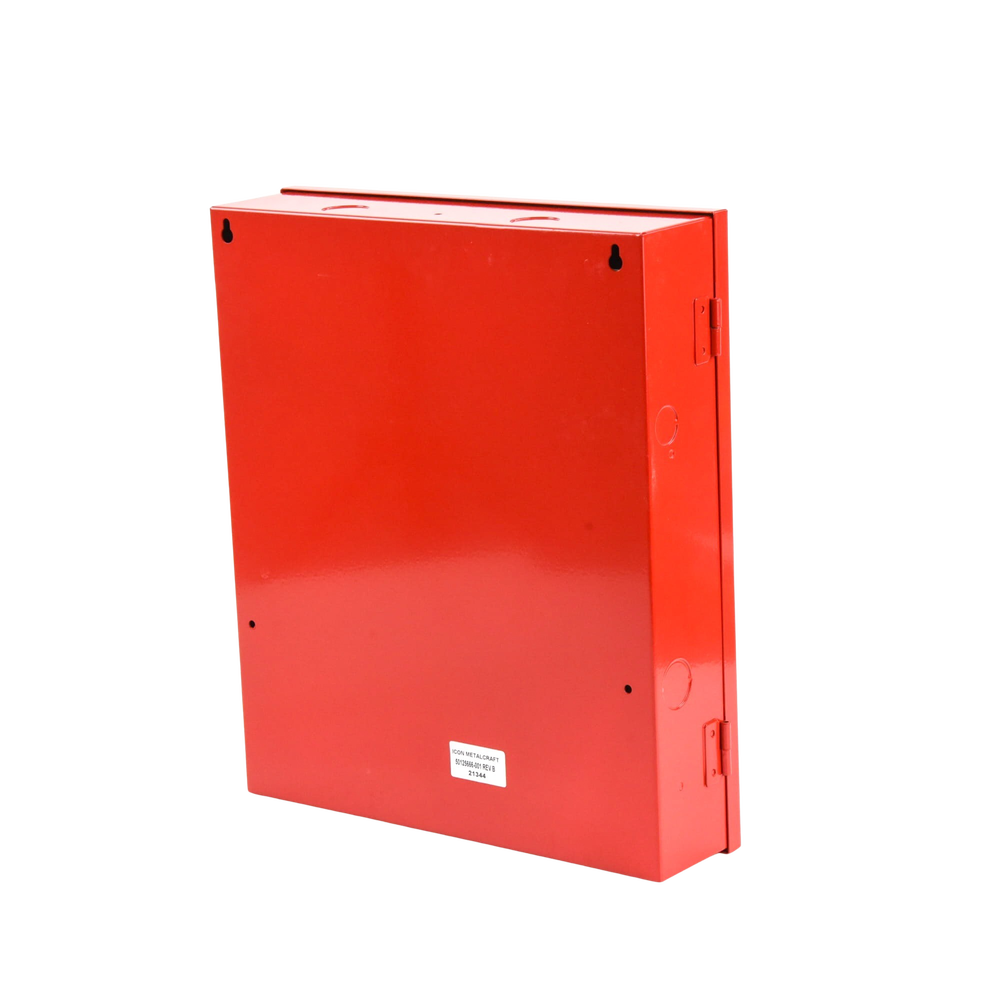

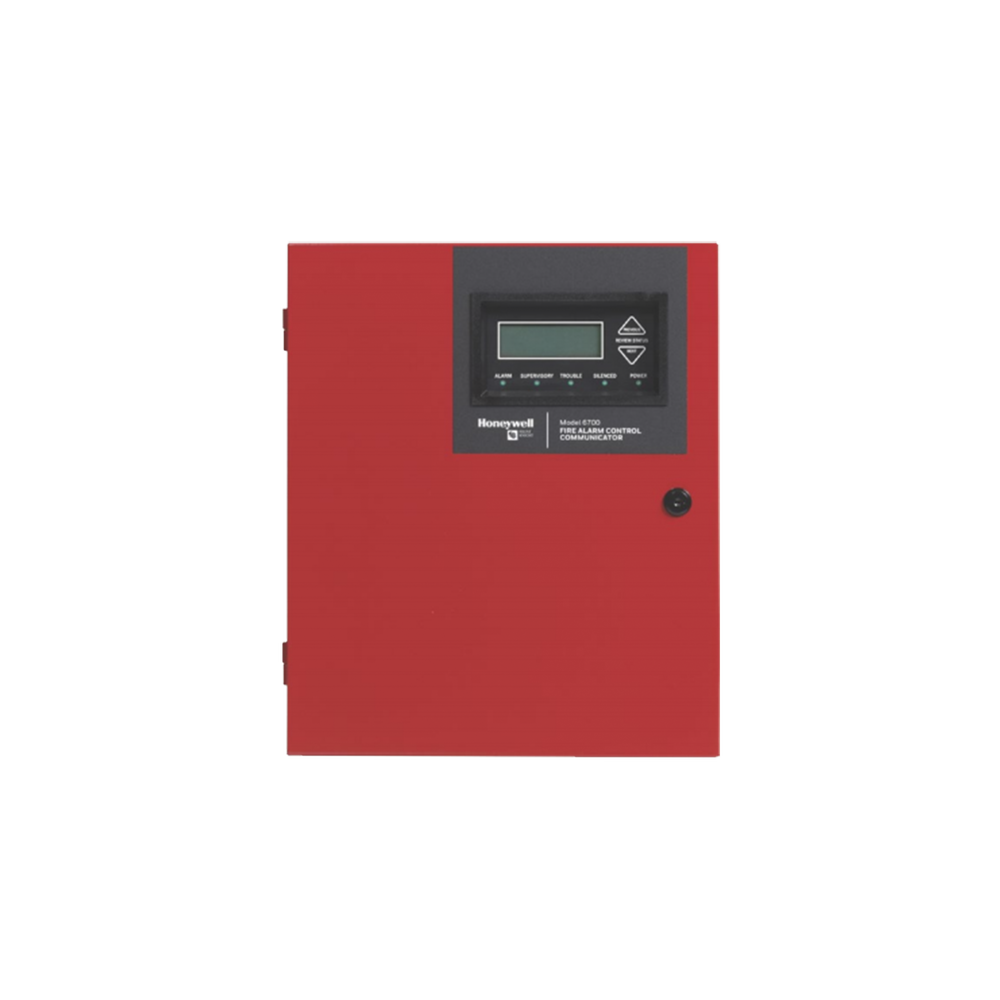

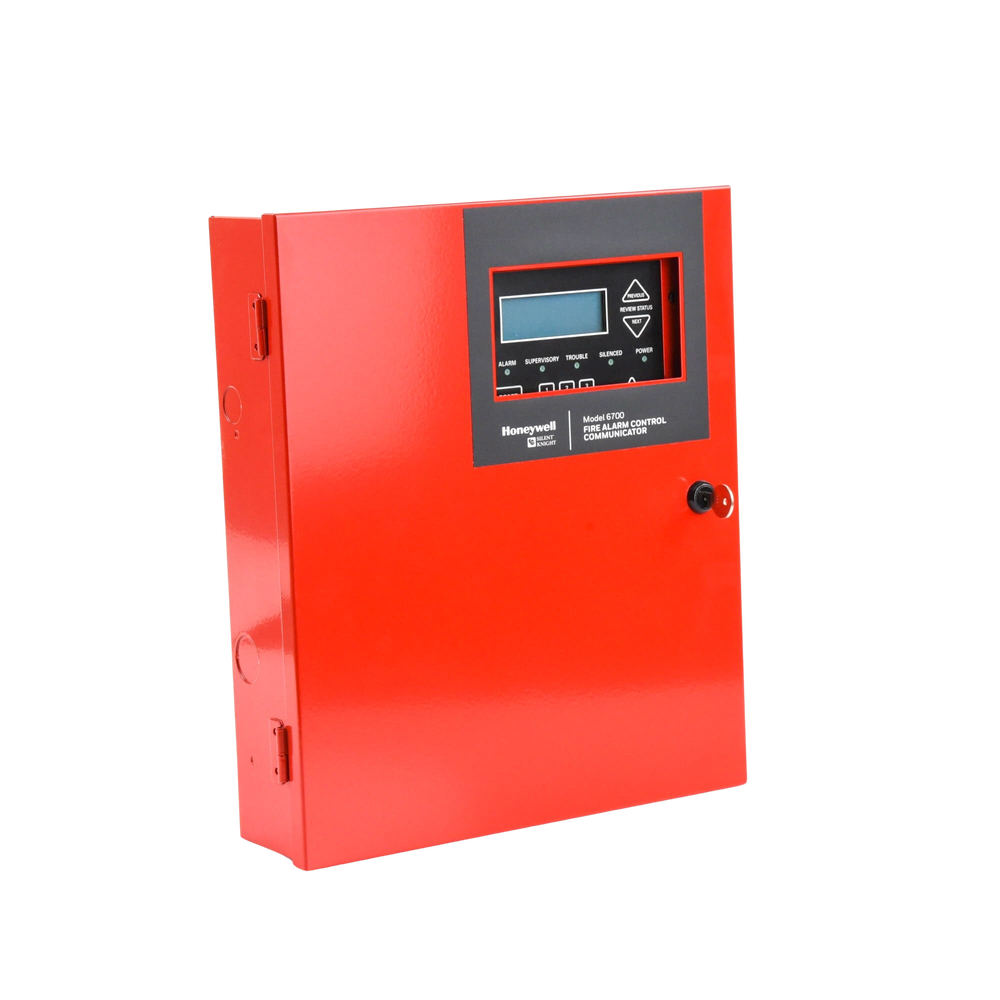

The 6700 is an addressable fire detection panel (FACP) that can be configured to support up to 100 points. It features a built-in signaling line circuit (SLC) that can support 50 detectors and 50 System Sensor® (SK) modules or 50 Hochiki® (SD) devices.

A common communication and annunciation path for up to 17 panels can be connected via copper or fiber optics. A designated panel is configured as the communicator for the other panels within the network. It also has a dual-line POT telephone communicator and an IP communicator, and a cellular communicator can be installed optionally.

The 6700 can be enhanced using modules such as the 6860 remote annunciator, which has four programmable function keys that help automate tasks and reduce time spent at the panel.

Compatibility with SWIFT® wireless devices provides intelligent detection options via a Class A mesh network. This is ideal for locations where wiring is not permitted, or for simple installation of a new fire detection system.
SWIFT devices can be combined with other wired devices compatible with the 6700. SWIFT devices are only compatible with System Sensor (SK) devices. They are not compatible with Hochiki (SD) devices.

The 6700 also has a Form C trouble relay, and two Form C programmable relays, as well as powerful features such as dirt compensation, pre-trouble and maintenance alert, and calibration trouble alert.

Supports SWIFT wireless devices, Built-in IP communicator, Pathway compatible
