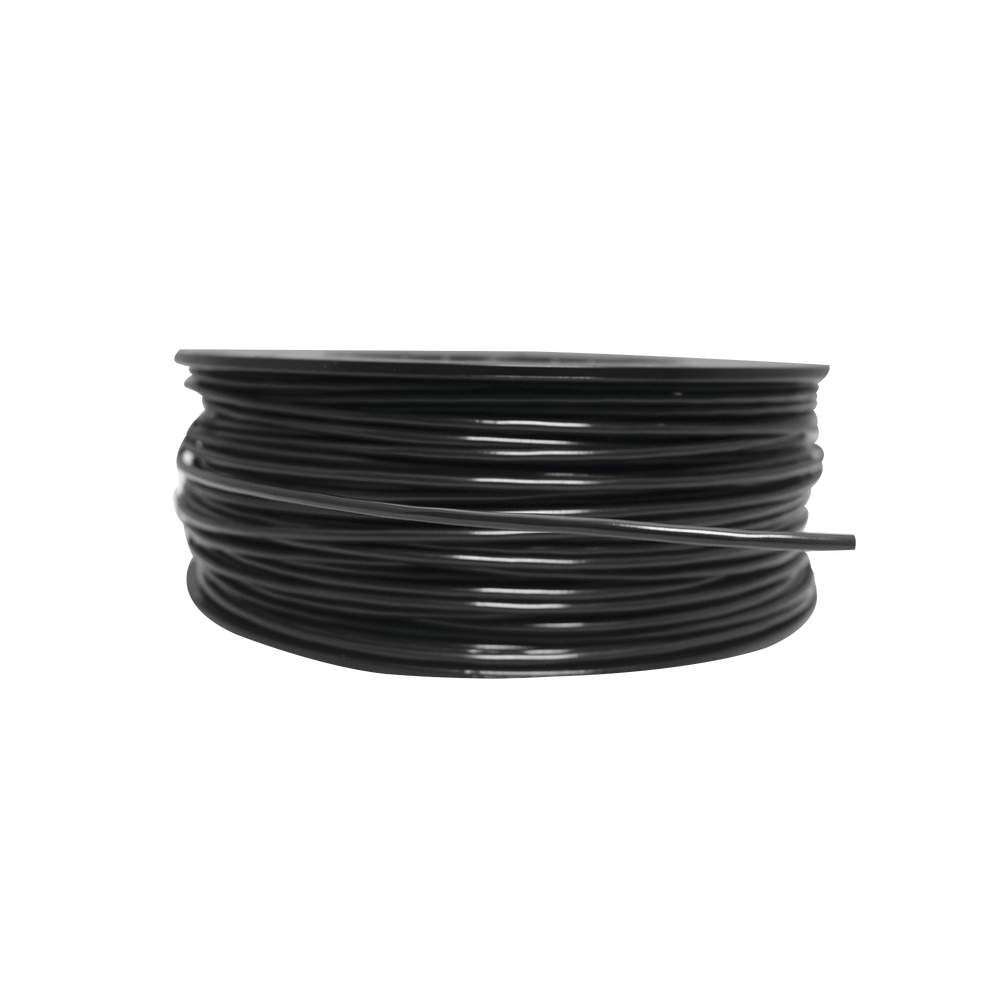

152 Meter Spool of Heat Detector Cable, Fixed Temperature 104°C, Black Nylon Coated for Outdoor Applications, with Steel Guide
152 Meter Spool of Heat Detector Cable, Fixed Temperature 104°C, Black Nylon Coated for Outdoor Applications, with Steel Guide
Couldn't load pickup availability
152 Meter Spool of Heat Detector Cable, Fixed Temperature 104°C, Black Nylon Coated for Outdoor Applications, with Steel Guide
SAFE Linear Heat Detection (LHD)
It uses advanced polymers and a newly developed alloy to provide exceptional detection, durability, and design flexibility. At the core of SafeCable is a twisted pair of extremely low-resistance tri-metallic conductors, which are sheathed with new, advanced thermal polymers. These polymers are chemically engineered to decompose at specific, fixed temperatures, allowing the twisted conductors to make contact and initiate an alarm.
Bring fire detection to difficult locations where point detectors are ineffective
Refrigerated warehouses and commercial freezers
A cold storage warehouse (commercial freezer) is a location for refrigerated or frozen storage of perishable goods such as fruits, vegetables, meats, and beverages. It maintains a controlled interior temperature as low as -25°C. Given these temperature conditions, conventional spot-type temperature detectors fail due to moisture condensation, causing irreparable damage to the equipment. Heat-sensing cables are the best option for this purpose. Each centimeter of the cable acts as a spot temperature detector.
Fire protection
Freezers and chillers can contain combustible materials such as wood, cardboard, paper, grease, and electrical equipment, which are potential sources of fire due to overheating. The LHD solution adapts to any cold room installation and can be installed in racks, ceilings, on any type of gas tank, and in many other locations.
Ammonia pumping room
These types of areas in addition to cold rooms as well as electrical rooms must be protected using the LHD heat detector cable.
Characteristics
- Alarm temperature fixed at 104 °C
- Compatible with any Fire Detection panel
- Up to 4,572 meters of linear coverage per zone
- Excellent durability for outdoor environments
- Multiple alarm temperatures in one zone
- It is not necessary to replace the entire cable after an alarm.
- Approved for up to 10.7 meters of spacing
- The lowest drag of any LHD
- Guide wire, for easy installation
- Resistance: 0.164 homs/m
- Maximum rated voltage: 30VAC, 42VDC
Important note: Price per 152 meter coil
Out of stock
MODELO: TC-220NG-500
