50 Ohm, 0-1000 MHz, 35 Watt Dry Coaxial Phantom Load with N Male connector.

50 Ohm, 0-1000 MHz, 35 Watt Dry Coaxial Phantom Load with N Male connector.

50 Ohm, 0-1000 MHz, 35 Watt Dry Coaxial Phantom Load with N Male connector.

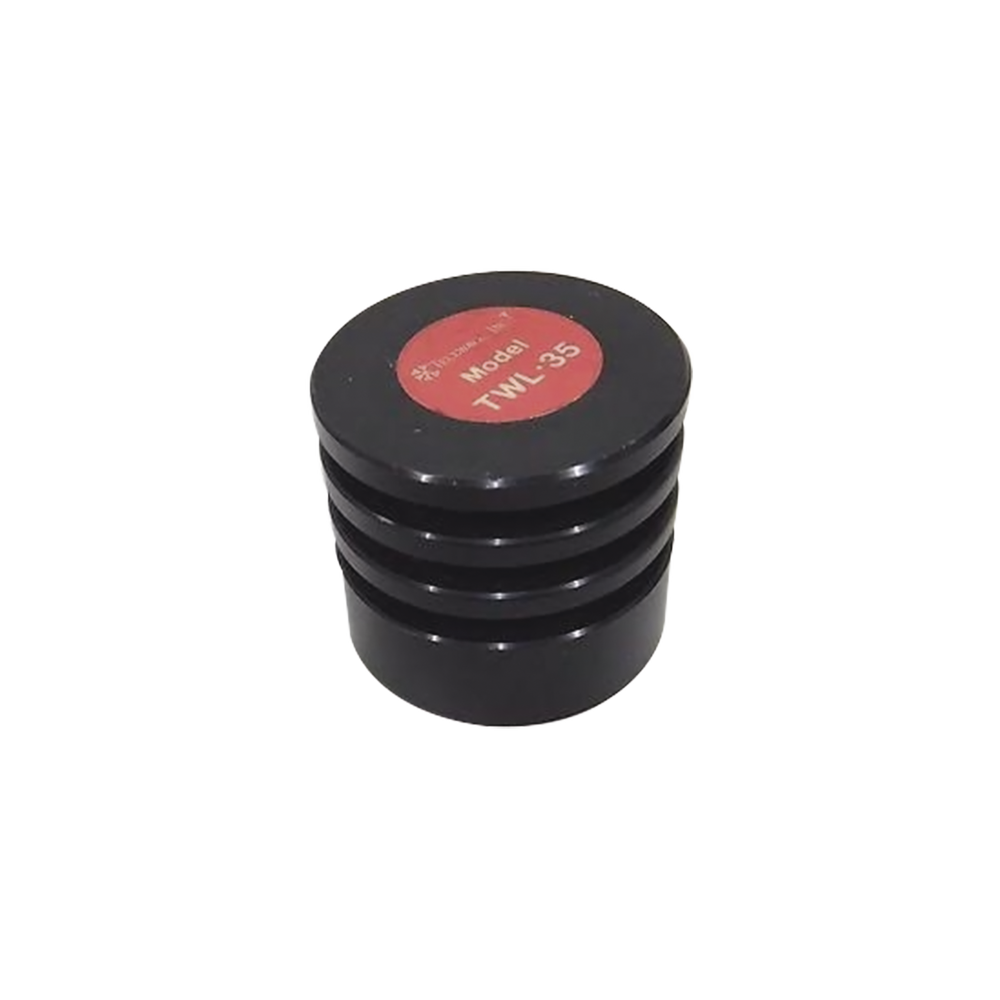

• Telewave TWL-35 35-watt coaxial loads are machined to withstand any bench or work field.
• Its power rating provides substantial overload protection.
• The loads feature a recessed N-Type Male connector or an optional UHF Male connector for small size and ease of use, with a silver-plated center pin.
• The load has a nominal impedance of 50 ohms, a wide frequency range of 0-1000 MHz and extremely low VSWR 1.05:1.
• Telewave's compact coaxial loads offer extremely low VSWR.
• All loads are machined to withstand any bench or field use, and their power rating provides substantial overload protection.
• Unlike oil-filled loads, these dry coaxial loads can be operated in any position.
• The connectors have a silver-plated center conductor.
• TWL-60 feature recessed male connectors for small size and ease of use.
• Applications include hybrids, isolators, power monitors, wattmeters, and coaxial port terminations.

Characteristics:

• Extremely low VSWR.
• CW power up to 35 W.
• Dry cargo.
• Wide frequency range.
• Robust construction.
• N, BNC or UHF male connector (specify connector type).
• Frequency range: 0-1000 MHz.
• Maximum average CW power: 35 W.
• Impedance: 50 ohms (nominal).
• Temperature Rating: 100% of rated power at 40°C, 50% of rated power at 95°C.
• 50% overload rating: 2 minutes.
• Connectors: N or UHF male.
• Dimensions: 4.1 x 3.6 cm.
• Weight: 0.11 kg.

*Ask for availability.
