GENESIS
4 x 22 AWG CM-CL2 Cable Reel / 305 m / For Indoor Use / Unshielded / For Intrusion Alarm Applications / Access Control / Automation / Paging
4 x 22 AWG CM-CL2 Cable Reel / 305 m / For Indoor Use / Unshielded / For Intrusion Alarm Applications / Access Control / Automation / Paging
Couldn't load pickup availability
4 x 22 AWG CM-CL2 Cable Reel / 305 m / For Indoor Use / Unshielded / For Intrusion Alarm Applications / Access Control / Automation / Paging

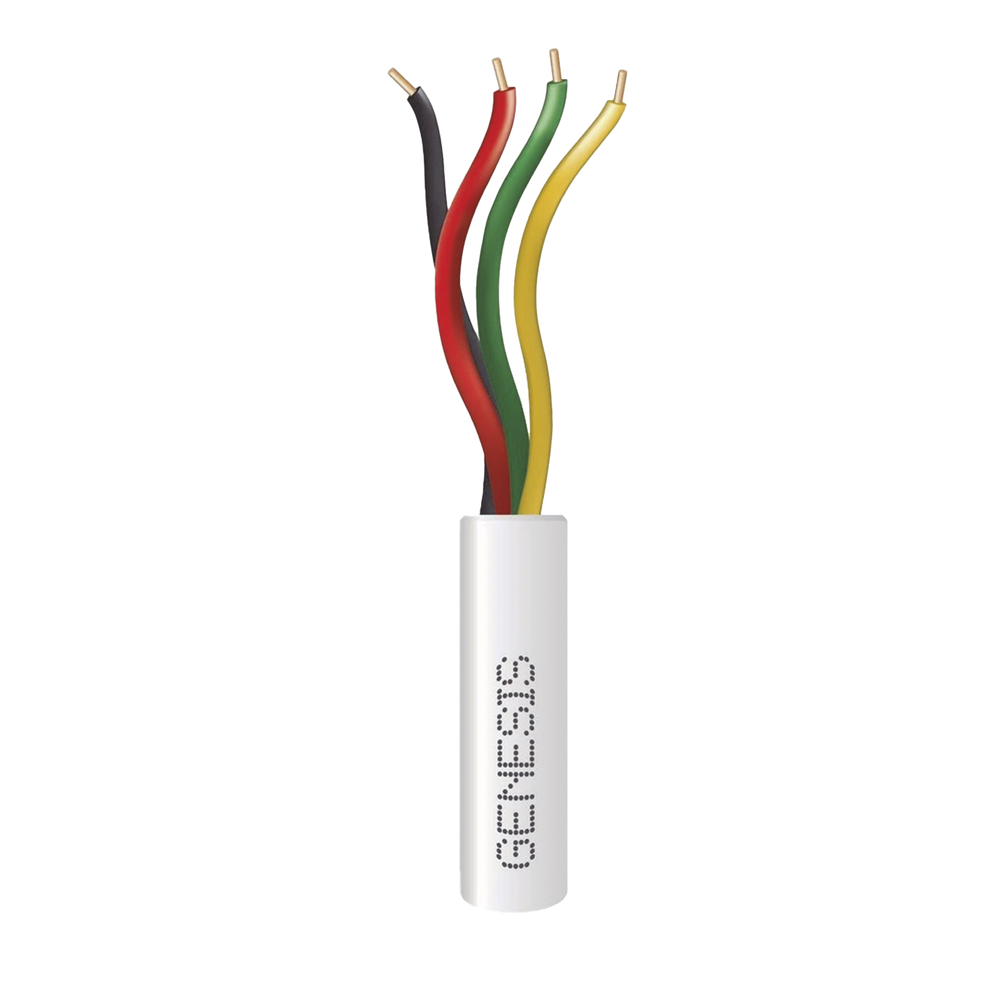

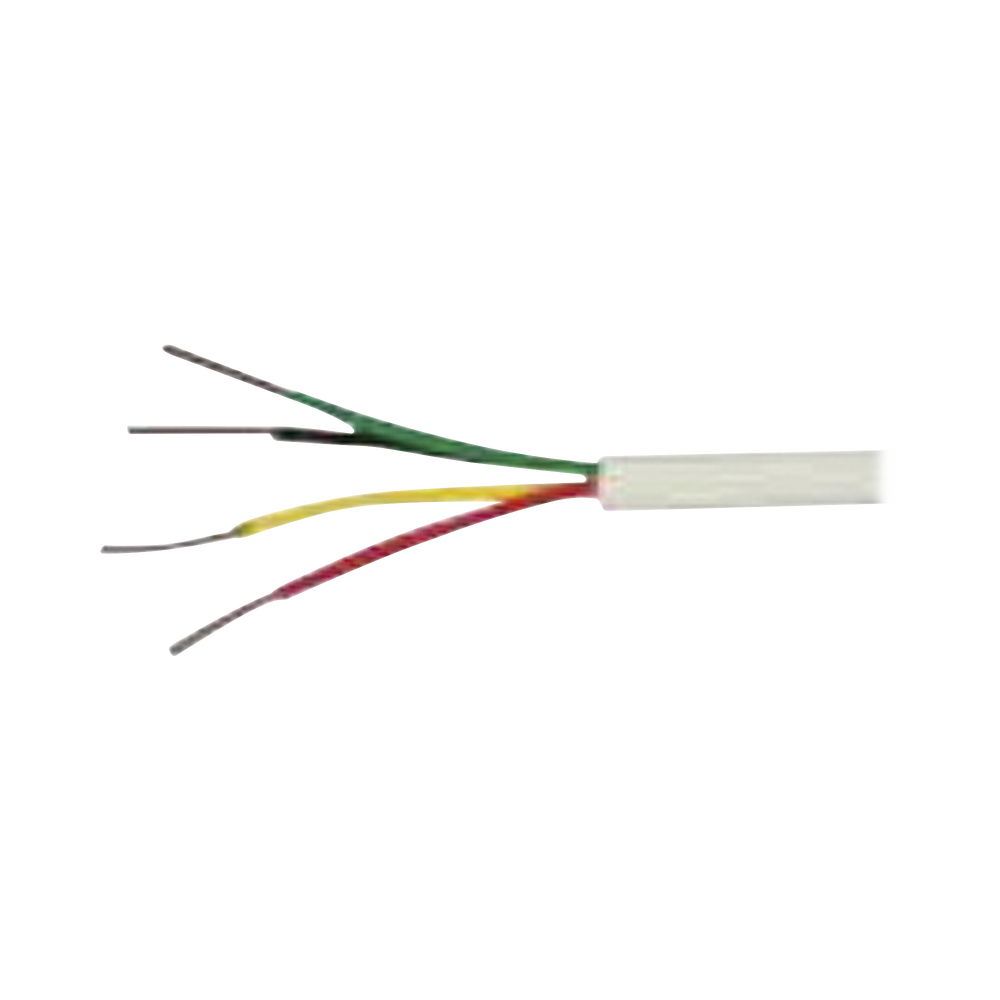

22 gauge 4-conductor cable with white jacket, applications in intrusion alarms, access control, automation and paging.
In automation, access control, and alarm systems, Honeywell's Genesis® brand brings us 4 x 22 AWG stranded cable, a true masterpiece of electrical engineering. This exceptional cable, manufactured with meticulous attention to detail and the highest quality standards, represents the ultimate choice for those who demand maximum performance from their electrical systems based on reliability.
Solid soft copper conductors with PVC insulation, used in alarm applications, sensor wiring, siren wiring, and automation systems.
- Insulation colors: Black , Red , Green and Yellow .
- Ripcord: No.
- Nominal Outside Diameter: 0.29464cm (0.116 inches).
- Solid or multifilament: Solid.
- Conductor material: Bare copper.
- Conductor insulation material: Polypropylene.
- Jacket material: PVC.
- Shielding: No.
- Operating temperature: -20° to 60°C
- Nominal voltage (max.): 300 V.
- Direct Current Resistance (max): 17.3 ohms/1000 ft at 20°C.
- Capacitance (nominal): 15 pF/ft.
- Impedance (nominal): 100 Ohms.
Cable Listing: UL 13, UL 444, NEC 725.
-
This Genesis® cable features four 22 AWG stranded copper conductors. Choose this cable for a reliable wiring solution for communications, alarms, and automation systems.
* Price per 305 meter coil.
- 4 x 22 AWG Cable Reel, 305 m, Indoor Use, General Purpose, Solid Cable
140 in stock
MODELO: 1103-1101/1000
