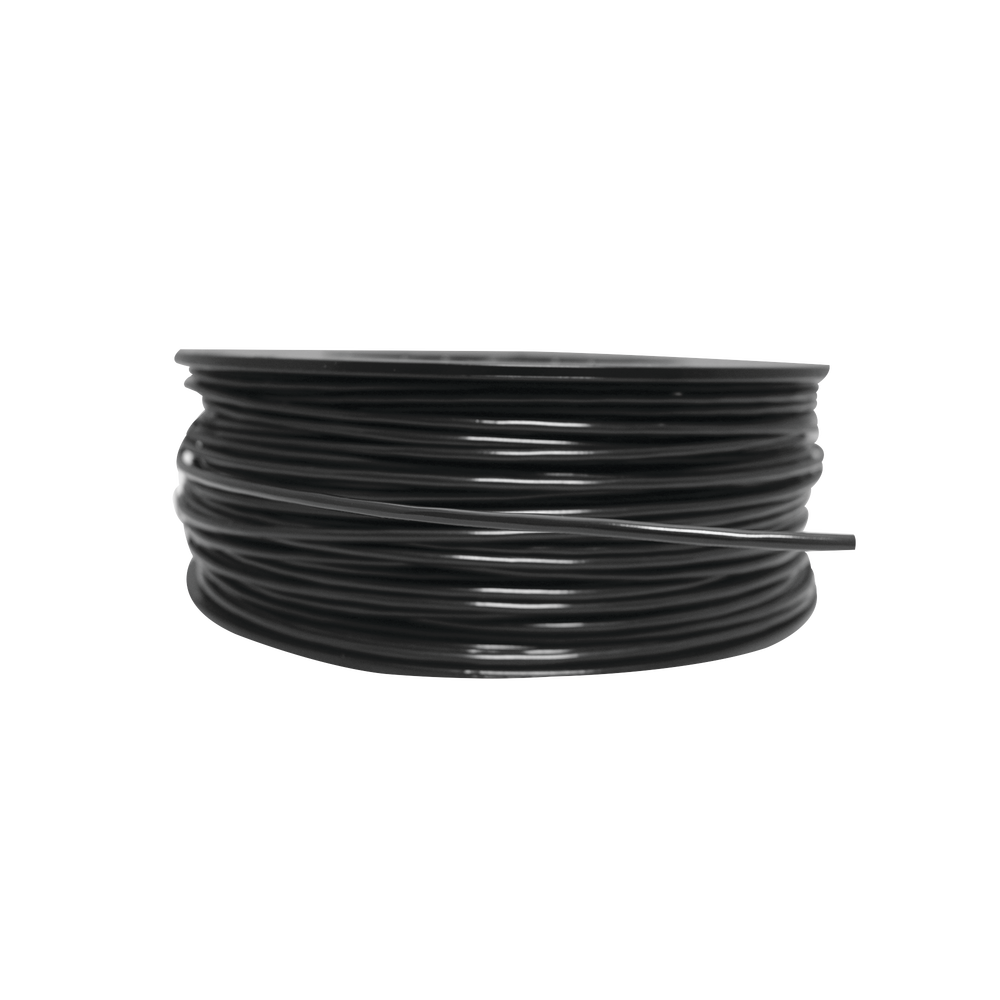

152 Meter Spool of Heat Detector Cable, Fixed Temperature 185°C, Black Nylon Coating for Outdoor Applications, with Steel Guide

SAFE Linear Heat Detection (LHD)

It uses advanced polymers and a newly developed alloy to provide exceptional detection, durability, and design flexibility. At the core of SafeCable is a twisted pair of extremely low-resistance tri-metallic conductors, which are sheathed with new, advanced thermal polymers. These polymers are chemically engineered to decompose at specific, fixed temperatures, allowing the twisted conductors to make contact and initiate an alarm.

Tunnels

A tunnel is an underground or surface passage, dug in the ground or underwater and closed except for an entrance and exit on each side, it can be vehicular, cargo or underground train type, where a fast, easy and effective installation is required, each centimeter of the detector cable is equivalent to a temperature detector, making it the ideal solution to cover this type of projects.

Cable Tunnels

Service and cable tunnels are used to interconnect communications and services between plants, areas and buildings to facilitate service maintenance and expansion.

Characteristics


• Fixed alarm temperature at 185 °C
• Compatible with any Fire Detection panel
• Up to 4,572 meters of linear coverage per zone
• Excellent durability for outdoor environments
• Multiple alarm temperatures in one zone
• It is not necessary to replace the entire cable after an alarm.
• Approved for up to 10.7 meters of spacing
• The lowest drag of any LHD
• Resistance: 0.164 homs/m
• Maximum rated voltage: 30VAC, 42VDC

Important note: Price per 152 meter coil
