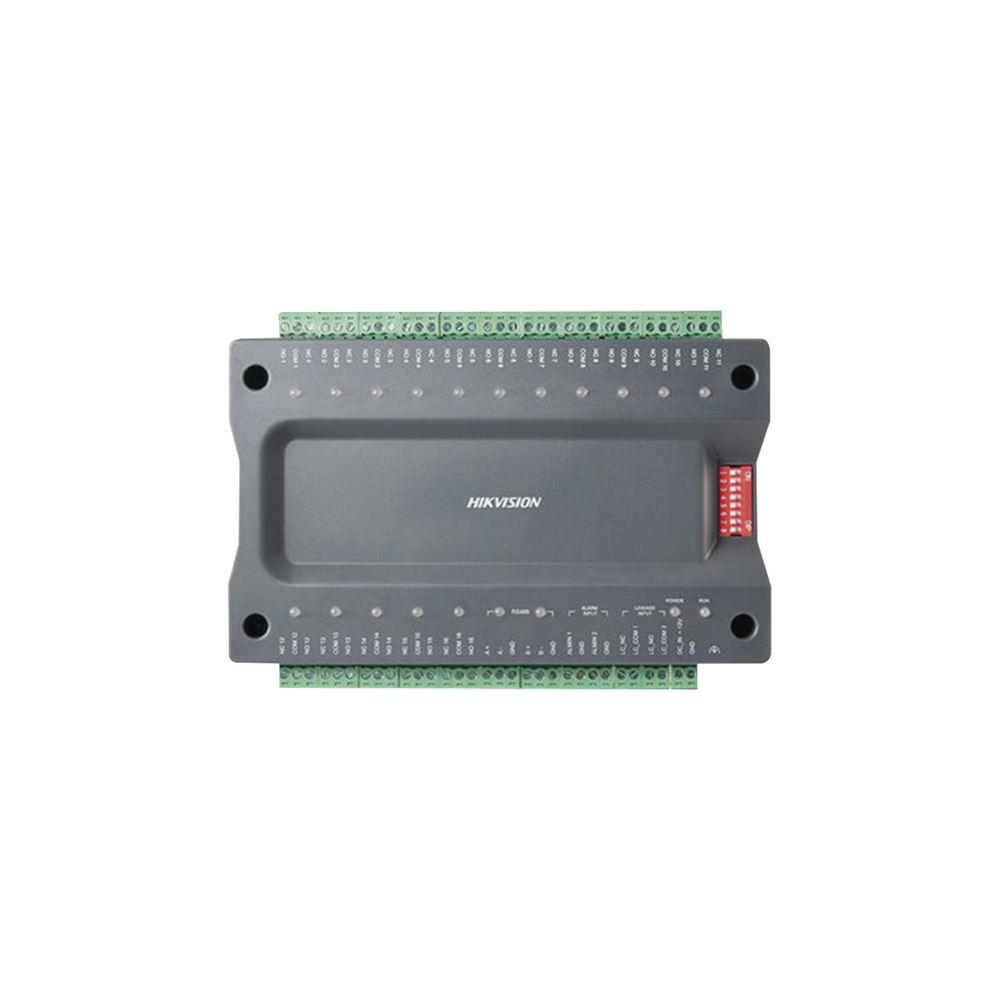

SLAVE Distributor for Elevator Control / Compatible with DS-K2210 Master Controller

SLAVE Distributor for Elevator Control / Compatible with DS-K2210 Master Controller

$1.768.642 COP
$1.934.452 COP $1.768.642 COP
Sale Sold out
Shipping calculated at checkout.

SLAVE Distributor for Elevator Control / Compatible with DS-K2210 Master Controller

Main features:
  • RS-485 communication with the master controller.
  • DIP Switch for RS485 addressing.
  • Supports 16 relay outputs (1 for each elevator floor).
  • Supports 2 alarm inputs.
  • Warranty: 2 Years
Physical and Electrical Characteristics:
  • Operating voltage: 12VD (Not included)
  • Operating temperature: -4°C to 70°C (40°F to 158°F)
  • Dimensions: 167 (L)mm *105 (W)mm *30 (H) mm
Highlighted Features:

The elevator control distributor has 8 DIP switches and 16 relay output terminals, and can communicate with the main elevator controller and relay via RS-485.

This model is only the slave controller , for configuration and start-up the master controller model DS-K2210 is required.

Master Controller REQUIRED

Model: DS-K2210

  • Up to 24 slave distributors with 16 floors to be controlled by each one.
  • Manage permissions for different people , enabling only the floor that person can go to (they must swipe their fingerprint or card to enable the floor corresponding to their access level).
  • Zero complications since it is not necessary to interact with the main control panel of the elevator but rather, an interconnection is made with the elevator button panel (using the relays of the slave distributor DS-K2M0016A ), in such a way that when there is correct access then the button panel is enabled (only the buttons to which the person has access).

In your project you should consider the following for each elevator cabin:

  • 1 DS-K2210 Master Controller.
  • 1 DS-K2M0016A slave controller (at least 1, depends on the number of floors).
  • 1 Wiegand / RS485 reader (e.g. a DS-K1T671M facial reader).
  • Administration is via IVMS4200 ( supports up to two elevator cabins ). HikCentral software is required to control more than two elevator cabins.

Hikvision elevator solution demonstration with real elevator button panel

    Low stock: 1 left

    MODELO: DS-K2M0016A
