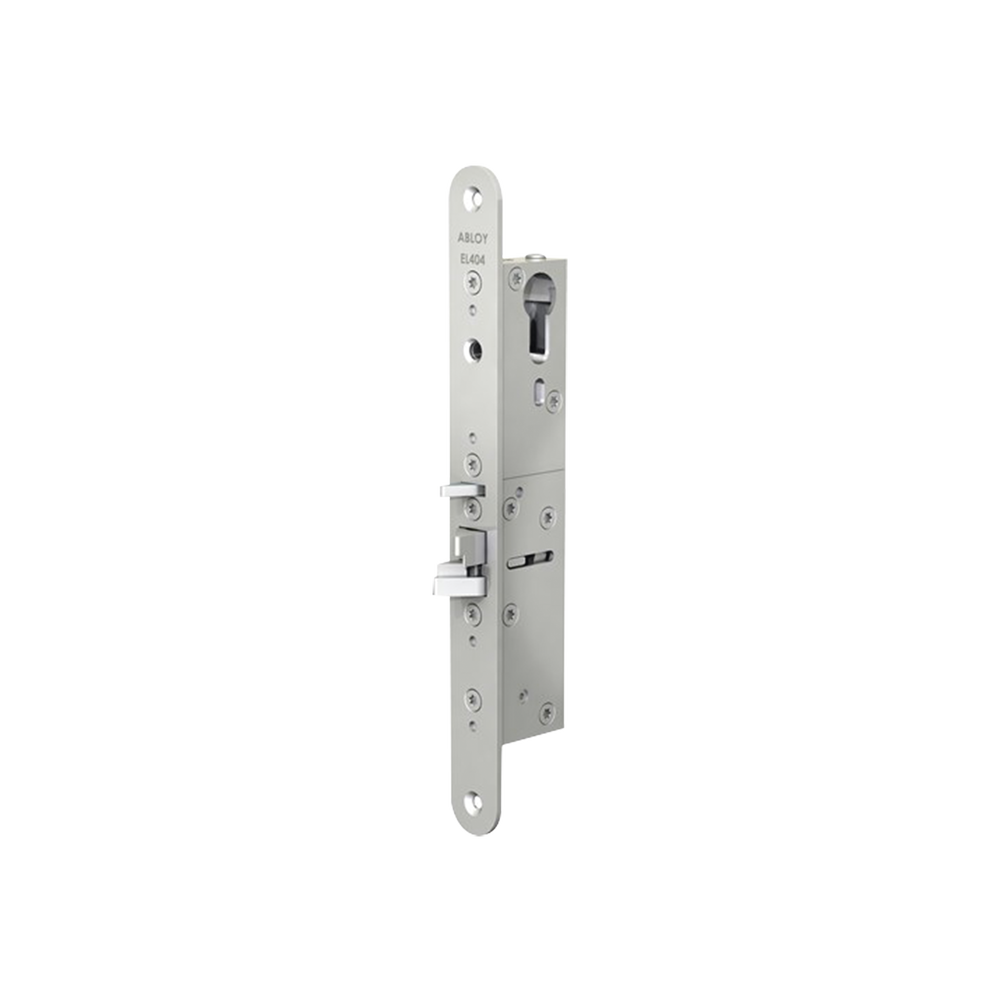

Abloy Electromechanical Lock for Narrow Profile Doors with Solenoid Technology

Abloy Electromechanical Lock for Narrow Profile Doors with Solenoid Technology

Electric lock typically used on exterior doors of apartment buildings and interior doors of commercial premises

• For narrow profile doors
• It can be controlled by a variety of access control devices such as card reader, keypad or timer.
• Horizontal mounting on the door is also possible.
• Due to its unique symmetrical trigger bolt, it can be used on swing doors.
• It can be set to operate open or closed in case of failure.

Required accessories:
- ABL-EA307 Against
- ABL-CY322T Double Cylinder
- ABL-EA221 Connection Cable
- ABL-EA281 Cable glands
- ABL-DP131 Door Handle
- ABL-DC240 Door Closer

Specs:
- Operating Voltage 12 - 24 VDC (-10%/+15%) stab.
- Current consumption: max. 550mA (12 VDC); standby 240mA (12 VDC); max. 270mA (24 VDC); standby 110mA (24 VDC)
- Operating Temperature -20°C…+60°C
- Bolt: 14.5 mm
- Finish: Chrome front

Note:
This lock should not be used on fire doors.
