EPCOM POWERLINE
RS232 to RS485 converter
RS232 to RS485 converter
Regular price
$16.352 COP
Regular price
$17.885 COP
Sale price
$16.352 COP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
RS232 to RS485 converter
485-D

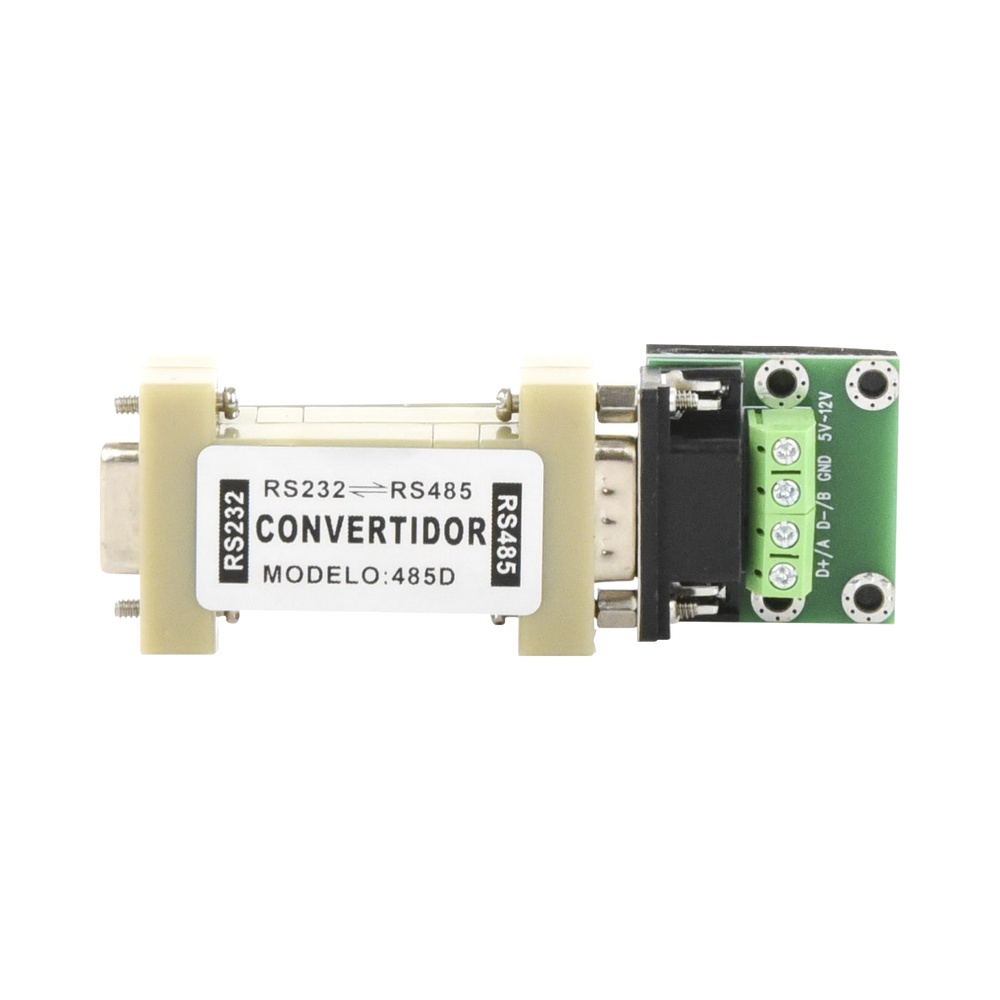

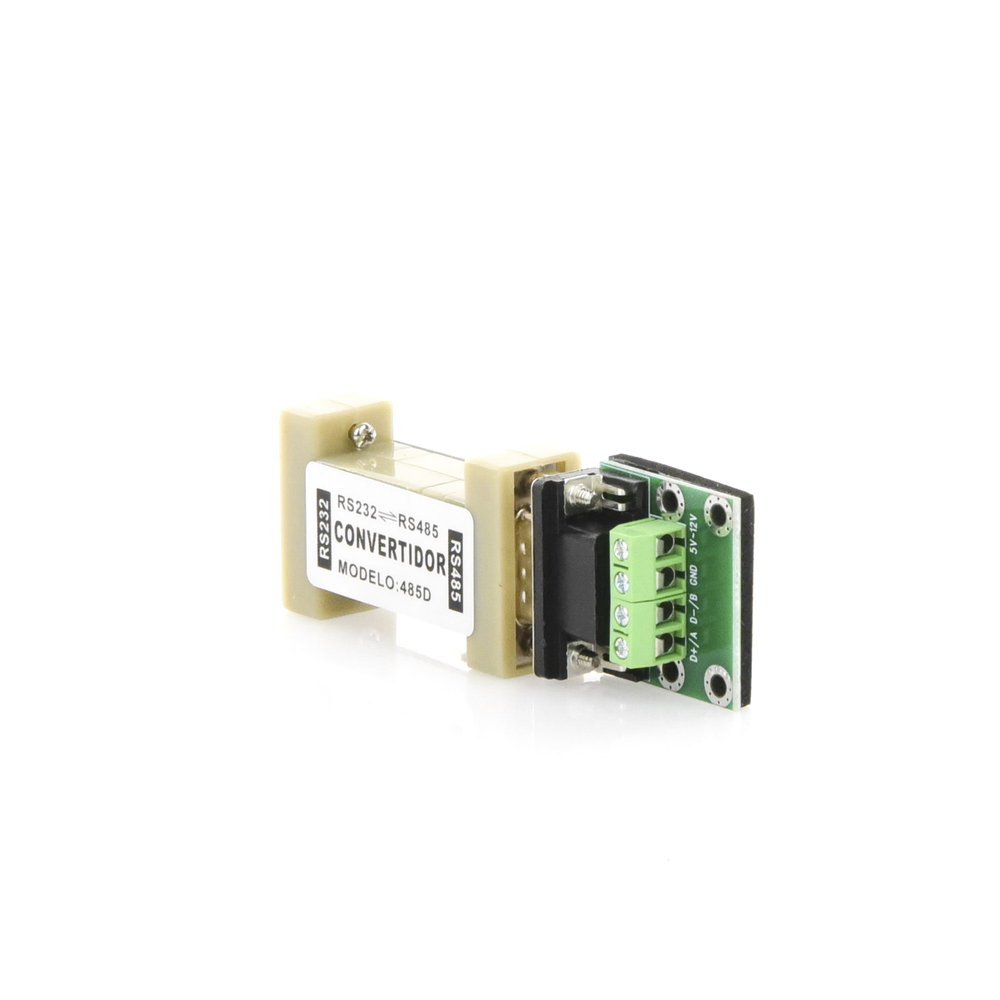

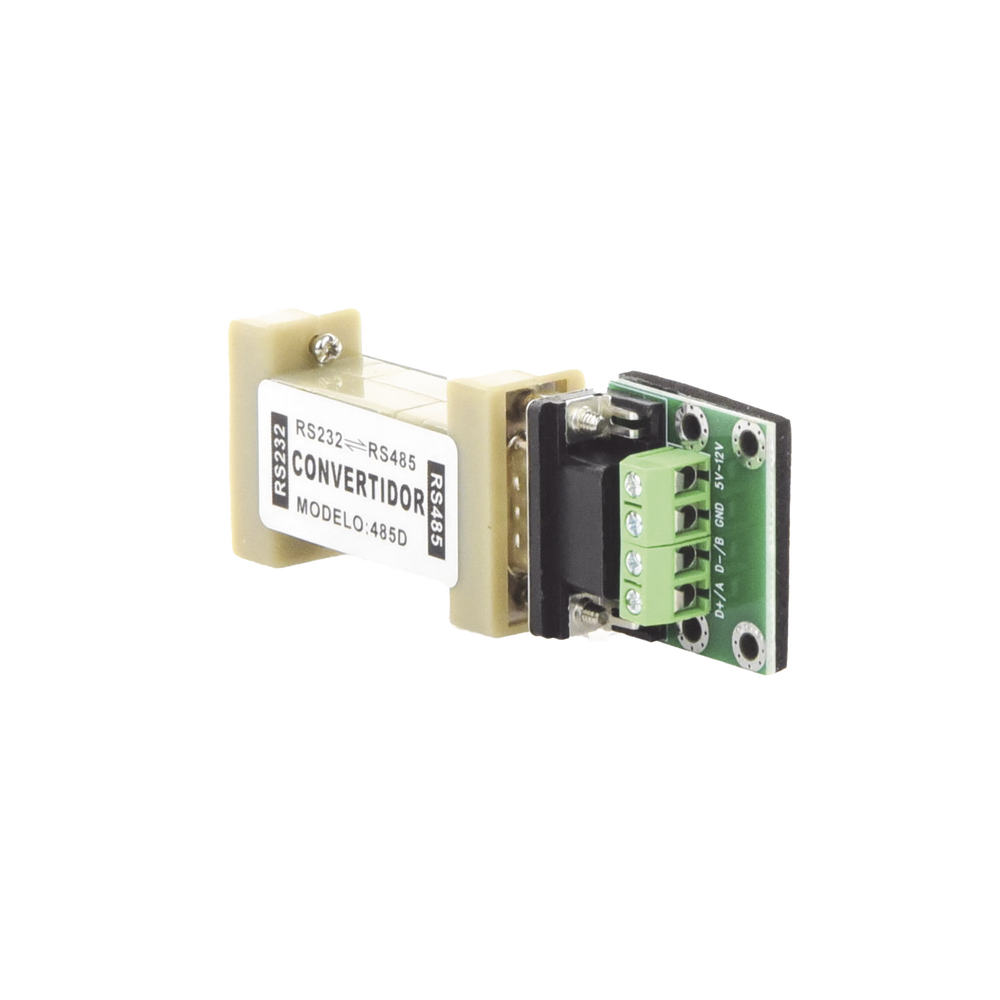

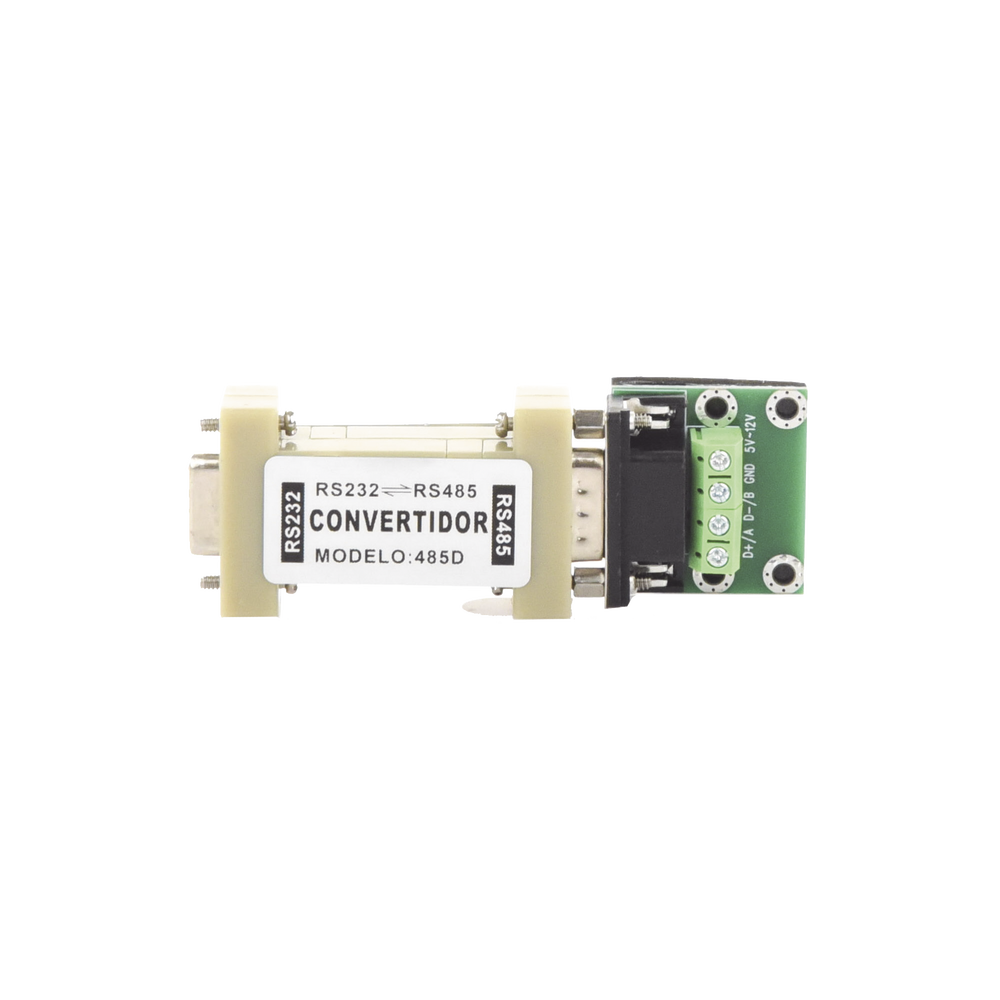

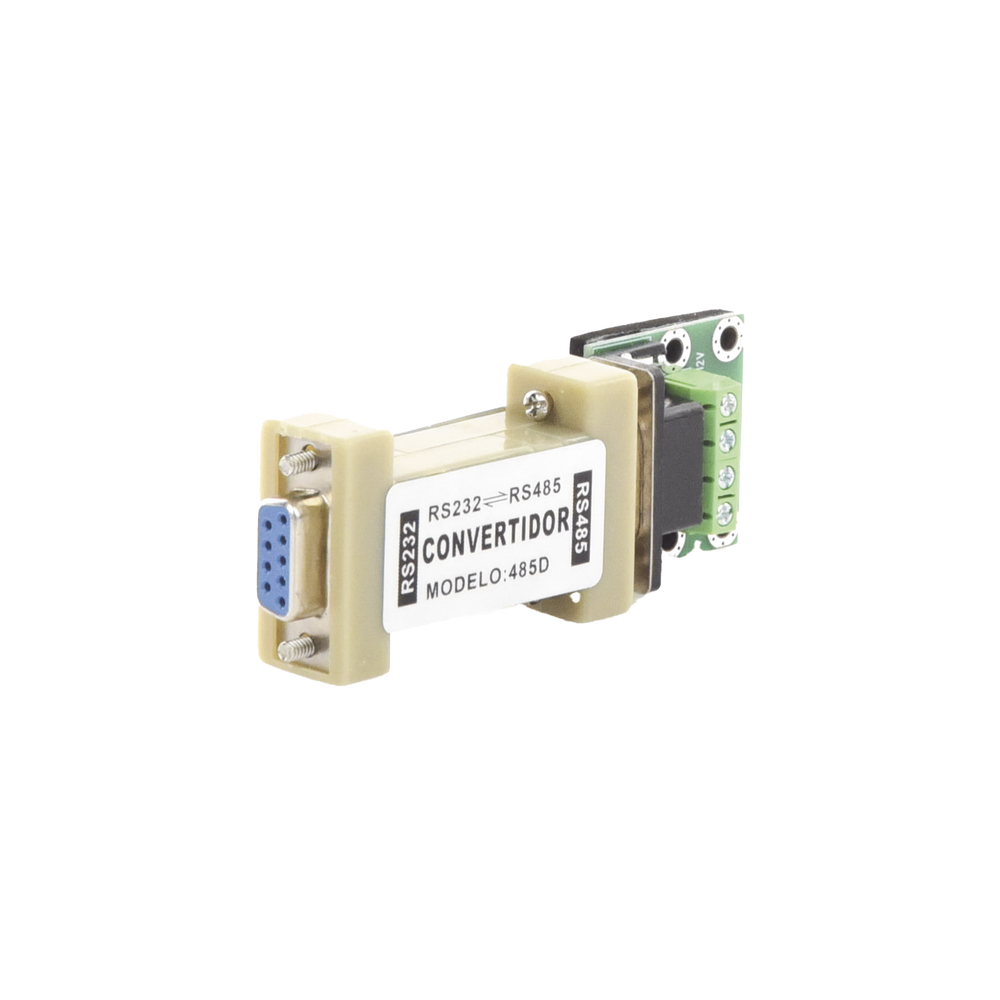

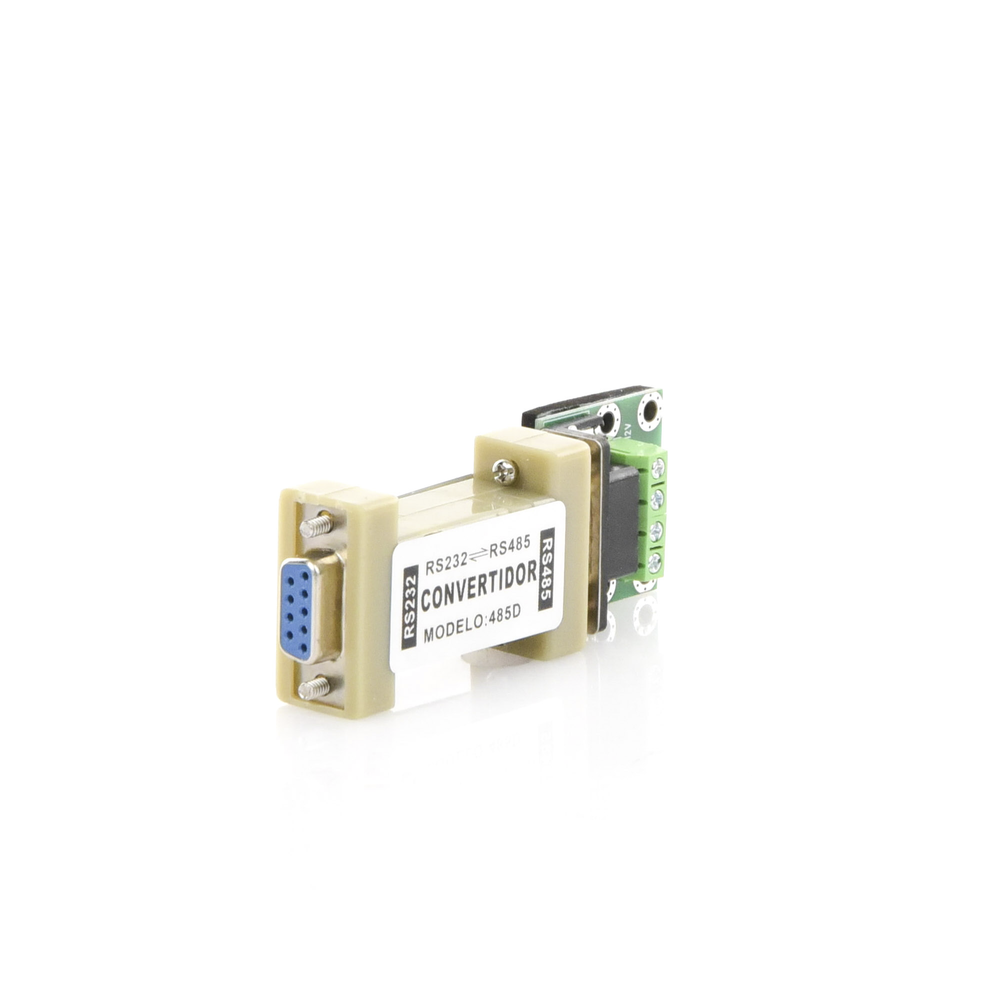

RS232 to RS485 converter
The RS232-RS485 converter is designed to convert signals between an RS232 interface and an RS485 interface. It is often used for CCTV, ACCESS CONTROL and industrial applications. In 2-wire “Half-Duplex” (RS485) mode, the converter can control the direction of transmission on the bus by means of the data flow. In this case, the converter will automatically determine the bus reversal based on the direction of the data being transmitted. This way, it can be used to connect equipment where management is not done by flow control. The maximum data flow rate is 115.2Kbit/s.
Main Features:
- Data Transfer Range: 300-115200bps.
- Operating Distance: 1200m via RS485, 5m via RS232
- Working mode: Asynchronous, half-duplex, differential transmission.
Physical and Electrical Characteristics:
- Power supply: 5~12 V DC (Suggested 12 V DC)
- Ambient temperature: -10C°C to 85C°C, 5% to 95% RH
- Dimensions: 95 x 34 x 17 mm
- Weight: 36 grs.
Highlighted Features:
- Interface: Compatible with EIA/TIA RS-232C standard and RS-485 standard.
- Transmission Medium: Unshielded twisted pair UTP or shielded FTP.
- APPLICATIONS: - CCTV - Access Control.
Out of stock
MODELO: 485D
