Access Control Kit for 2 Readers (Included) / 30,000 Cards / Includes Cabinet and Power Supply / New Generation!

Access Control Kit for 2 Readers (Included) / 30,000 Cards / Includes Cabinet and Power Supply / New Generation!

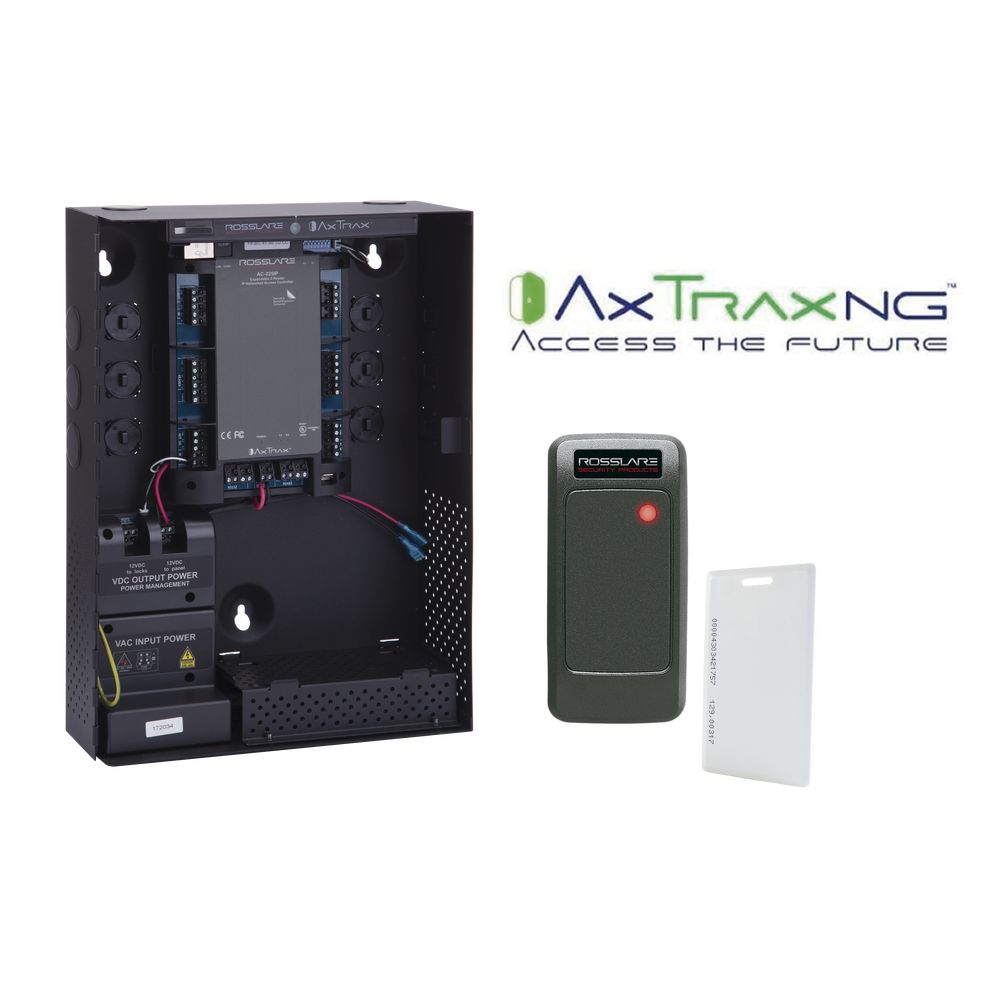

2-Reader Access Control Kit

• Installation software (AXTRAX NG).

• 1 control panel (AC-215IPBU) for 2 readers.

• 2 proximity readers (AYK12).

• 1 Spacer mount (MPK01) for use with AYK12 reader.

• 50 proximity cards (ATR14).

• Includes cabinet and 12 Vdc, 3 A power supply.

Software

• AXTRAX NG software (level 0) in Spanish/English.

• Requires Windows 7 Professional.

• Database in SQL Server.

• Works as a client/server.

• Ability to manage up to 1,023 doors (With licenses*).

• Operator level programming.

• Supports up to 64 controllers (free).

• 32 schedules.

• 128 authorization groups.

• Real-time monitoring.

• Ability to incorporate photographs.

• Antipassback and Global Antipassback function.

• User-friendly reports by user and department.

• Support for manual and automatic programming.

• Virtual map capacity.

Communication

• RS485 (use MD14 ).

• TCP/IP.

Controller

• 30,000 cards.

• 20,000 records.

• Input of 2 readers (Wiegand) 26 bits.

• Configurable for 1 or 2 doors.

• 2 relays for door opening.

• 2 door status sensor inputs.

• 2 auxiliary relays (programmable).

• Built-in alarm horn.

• Removable screw terminals.

• Cabinet with power supply (110 Vac input, 12 Vdc output, 3 A) and battery charger (not included).

• Dimensions: 326 x 263 x 97 mm.

• Weight 2.4 kg.

The sale of this equipment requires a certification course provided by SYSCOM

*1 Year warranty.

Notes: Support is only provided for software supplied with the equipment or provided by SYSCOM, provided it uses the same database engine included. Any other implementation to other software or another database version is the responsibility of the integrator or developer in charge.
