Relay output expansion module compatible with FORCE panel

Relay output expansion module compatible with FORCE panel

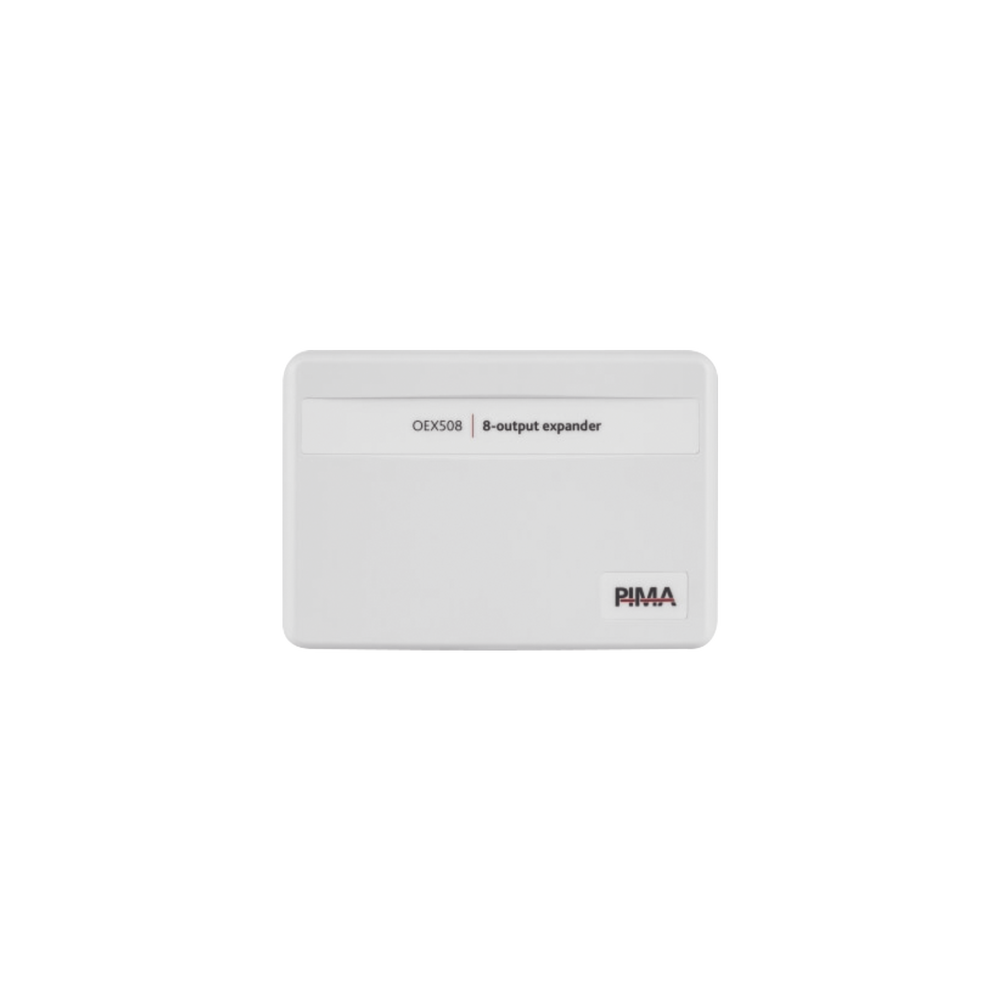

The OEX508 is an 8-output relay remote expander for controlling appliances such as electric gates, lights, etc.

Technical Specifications

• 8 Zone inputs (can be EOL supervised)

• Operating voltage range: 10-15VDC

• Current consumption: 30Ma

• Size: 19 X 15 X 4.5cm (Card only: 8.2 X 15cm)

• Weight: 345gr (With its box)

• CE compliant

• Operating temperature: -10°C to +55°C

8 Relay outputs, Compatible with Force panel
