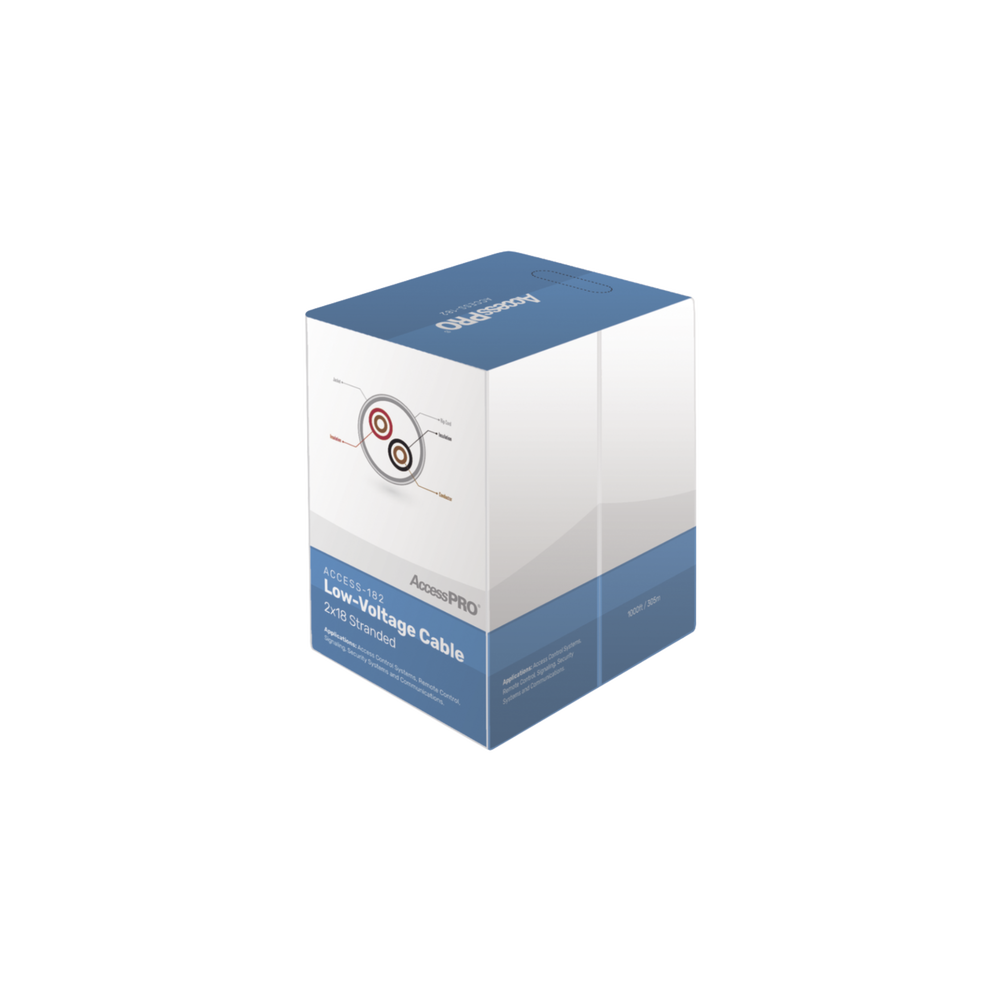

305 meter coil, with two 18 gauge FRPVC CM cables, for access control applications

305 meter coil, with two 18 gauge FRPVC CM cables, for access control applications

2 stranded copper conductors 18 AWG individual insulation of high quality FRPVC

CM flame-resistant PVC outer cover

Applications:

• Industry: Access control applications, analog ON/OFF signals.
• Security: alarms and access control, connecting the control panel to accessories such as motion sensors, magnetic plates, and counters, etc.
• Audio: Speaker connection.

Physical characteristics of the driver:

• Size 0.80mm²
• STR 16/30AWG x 2C Formation
• Pure copper conductor

Isolation:

• Average Thickness 0.25mm
• Nom. Diameter 1.80 ± 0.1mm
• FRPVC material - Fire resistant polyvinyl chloride
• Color: Black, Red

Jacket :

• Average thickness 0.6 mm
• Nom. Diameter 4.8 ± 0.2mm
• CM Material Ratings PVC-Polyvinyl Chloride
• White color
• RoHS Compliant Yes

Mechanical characteristics:

• DC resistance, Max Ohm / km (20) 21.80
• Capacitance 22.80 pF/ft. nom
• Impedance 67 ohms nom
• Temperature -20°C to 60°C
• Maximum operating voltage: 300 volts

Industry standard:

• ISO 9001:2015

Packing :

• 1000FT / 305M

18 Gauge, 2 Conductors
