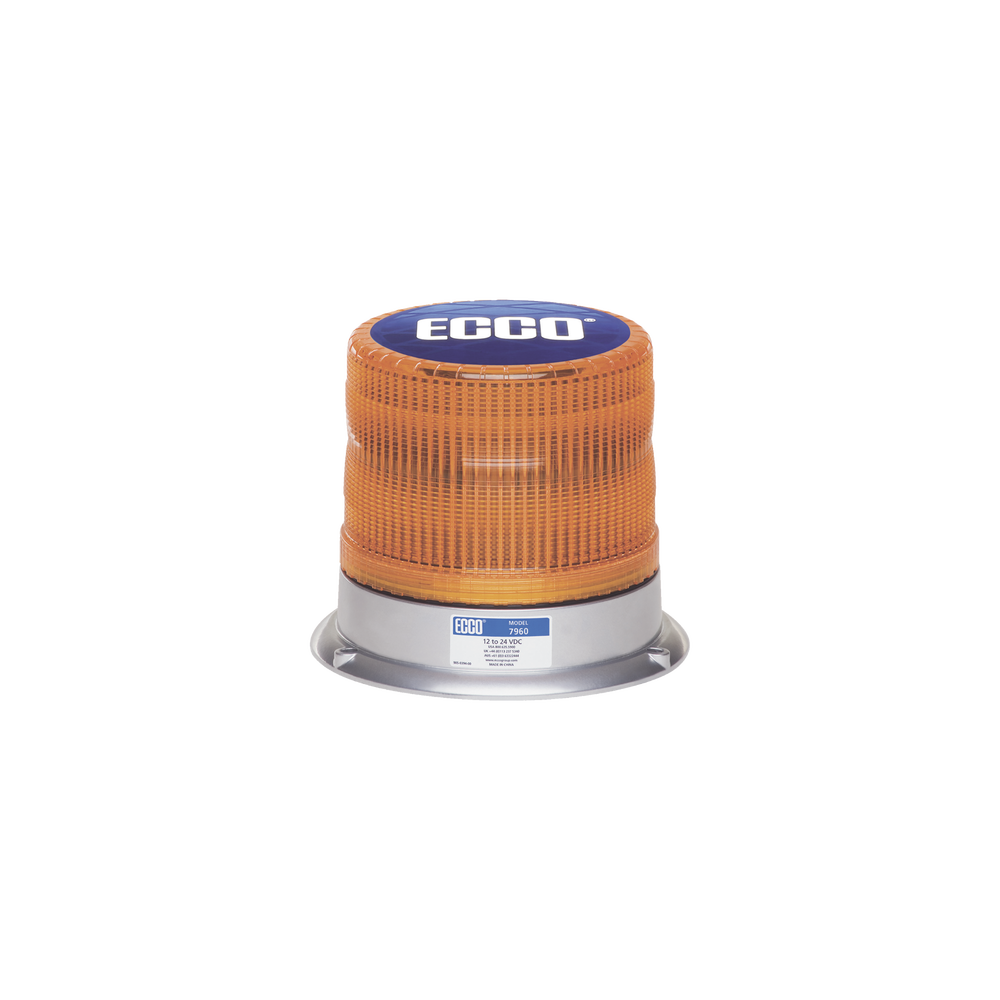

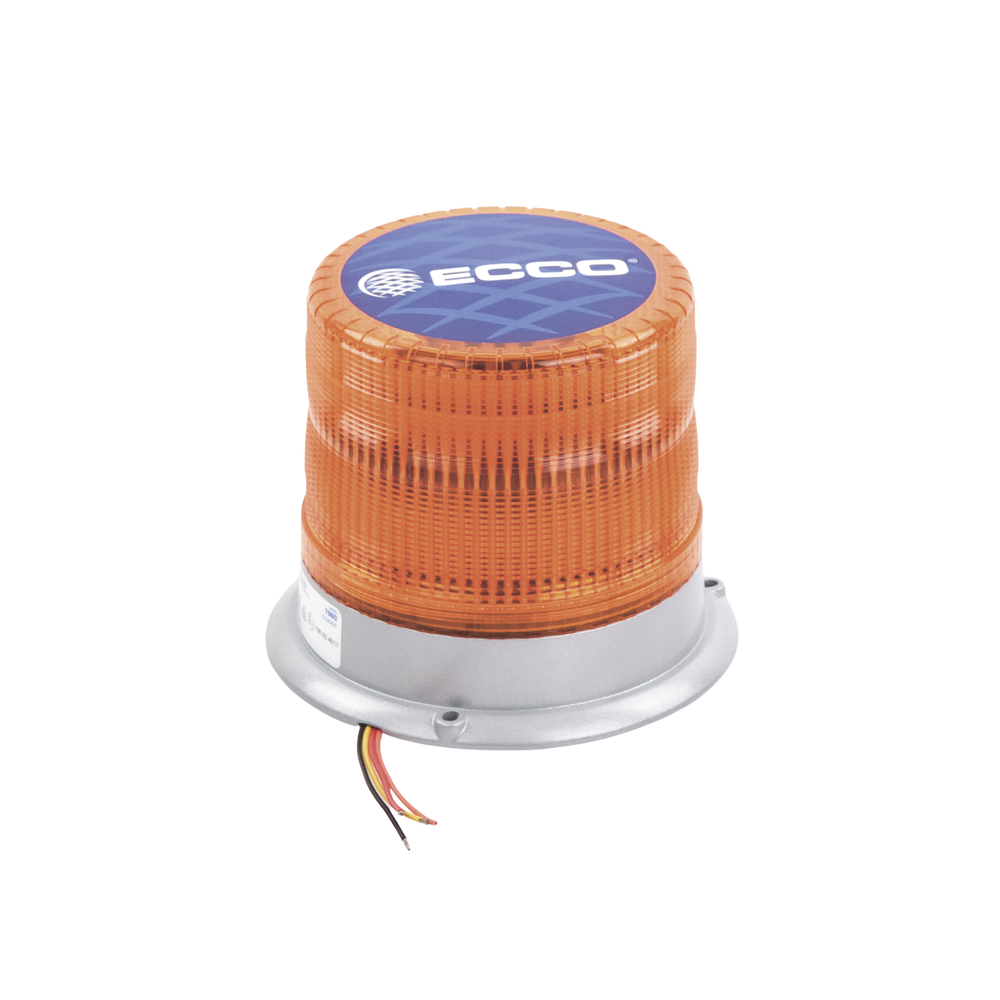

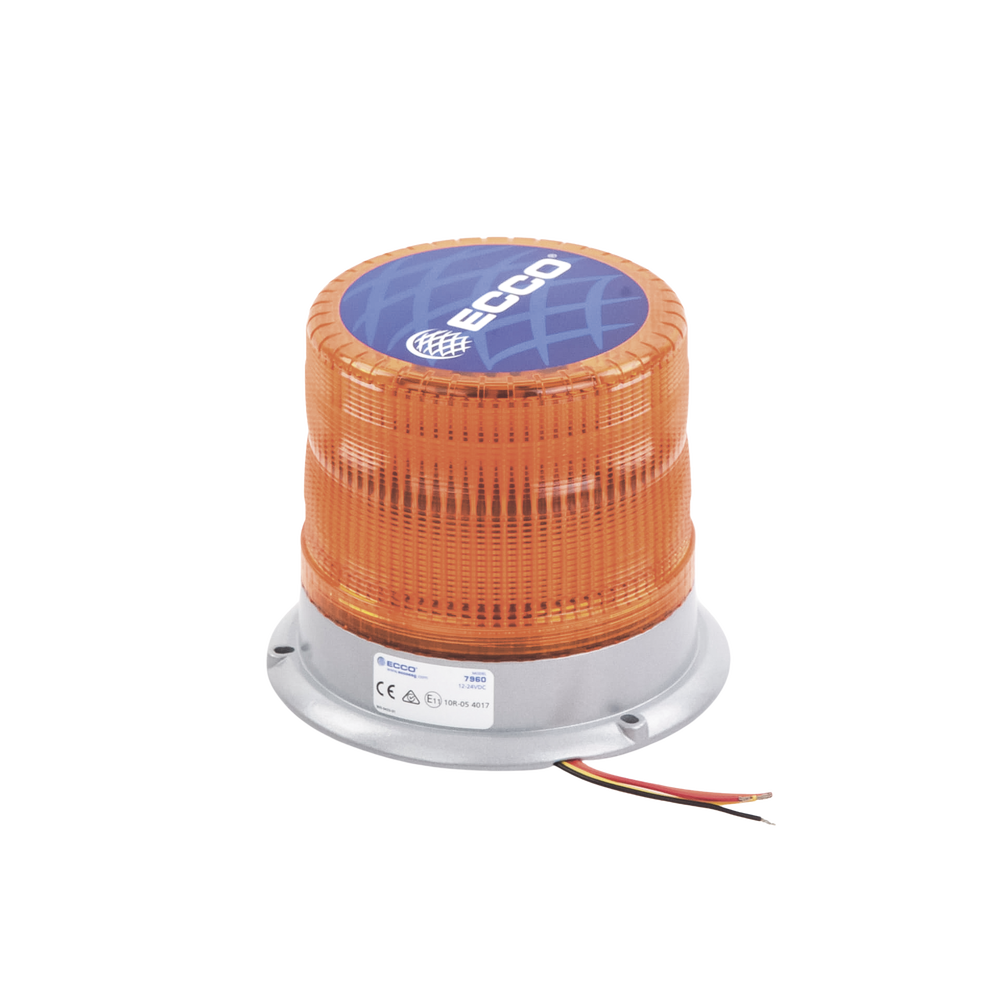

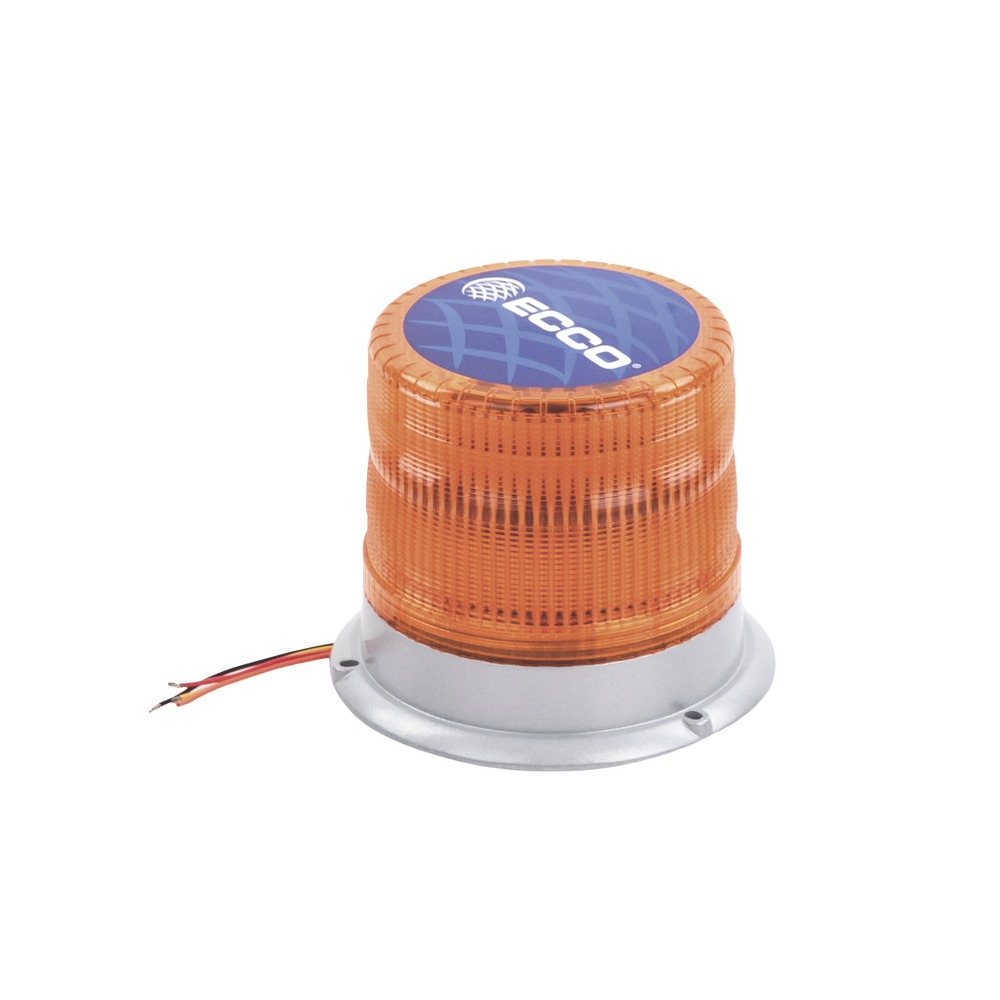

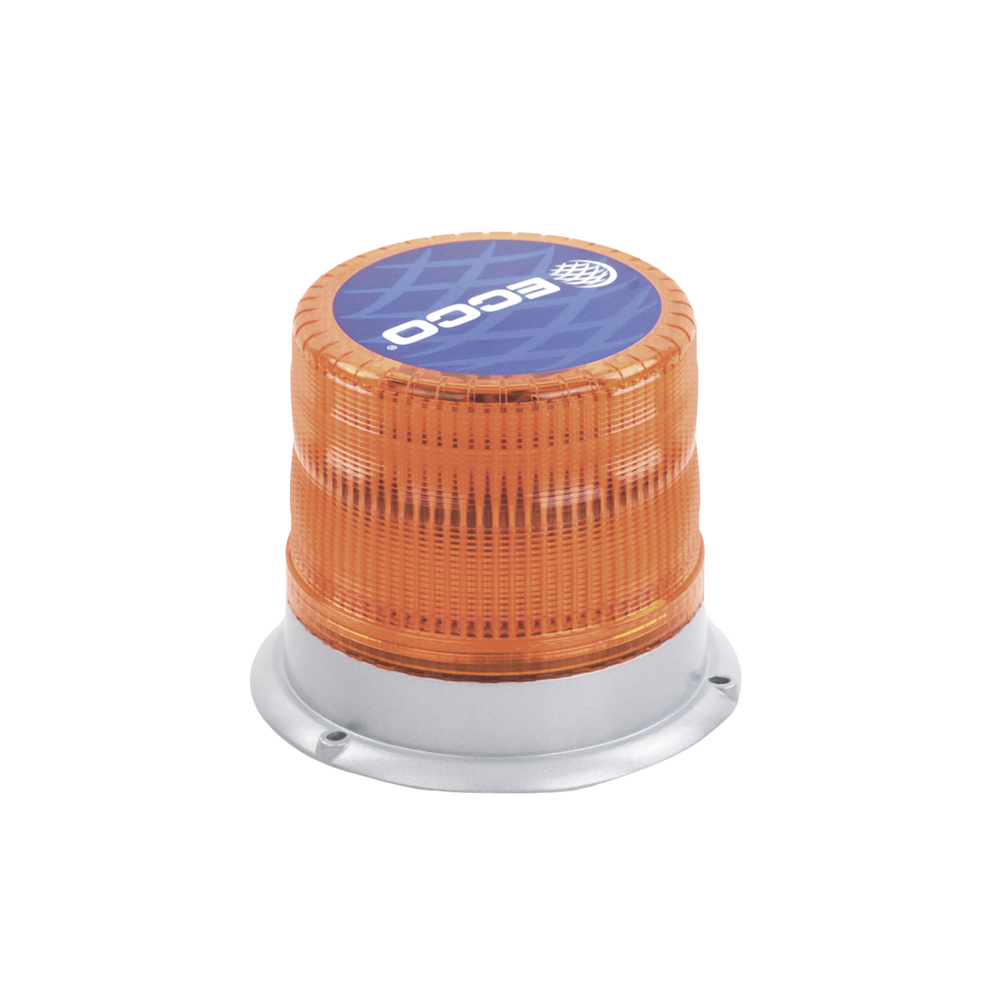

Pulse® 7960 Series SAE Class I Amber LED Beacon

Pulse® 7960 Series SAE Class I Amber LED Beacon

Pulse® 7960 Series LED beacons offer SAE Class I light output and dual or quad flash operation combined with long, maintenance-free life and low current draw, making this beacon a cost-effective choice for many applications.

The cast aluminum base is corrosion-resistant, the electronic components are epoxy-encapsulated for protection against dust, moisture, and vibration, while the threaded polycarbonate lens allows for easy, tool-free flash mode selection (via a microswitch mounted on the circuit board). It easily replaces older rotating beacons or strobes with the latest technology, so ongoing maintenance is not required.

Features:

Permanent 3-bolt mount

Lens Color: Amber

• 16 3W LEDs provide unparalleled flash intensity

• 11 flash patterns with high/low intensity control

• The cast aluminum base is coated against corrosion and designed for vibration resistance and heat dissipation (permanent mount versions are epoxy filled)

• Threaded polycarbonate lens

• Reverse polarity, surge and overvoltage protection

• Temperature range: -22°F to +122°F (-30°C to +50°C)

Meets Standards: SAE Class I, CE, R10, IP56, RoHS, Threaded Polycarbonate Lens, Die-Cast Aluminum Base is Coated Against Corrosion, Designed for Vibration Resistance and Heat Dissipation, 11 Flash Patterns with High/Low Intensity Control
