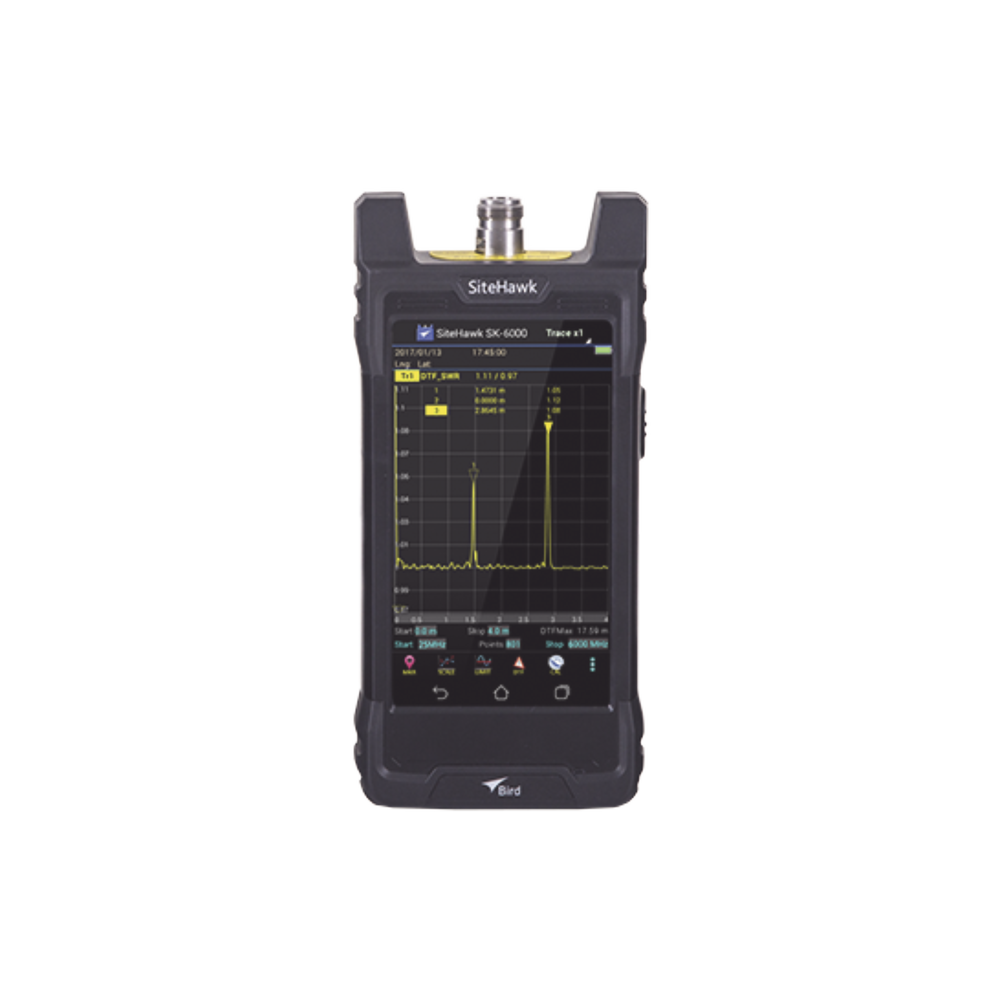

     SITEHAWK Site Analyzer for Antennas and Cable Faults from 1-6000 MHz.

• The SK-6000-TC RF analyzer features an intuitive interface and is easy to operate in the field for new, casual, and experienced users.
• Substantial internal storage eliminates the need to worry about file storage, as it stores thousands of traces on the device for future analysis or reporting.

Characteristics:

• The FDR (Frequency Domain Reflectometry) measurement method results in a highly reliable assessment of the health of critical components in your system, ultimately providing a warning before a failure occurs.
• The fault location or DTF mode indicates the VSWR or return loss levels at each point along the cable and antenna system length.
• The cable loss function measures the insertion loss of the cable system in a given frequency range.
• USB communication port for connection to the storage device and battery charging.
• Three-year warranty.
• Download the free Bird RF Meter app from the Google Play Store.
• For a complete list of compatible sensors, see the Bird RF Meter page.

Specs:

• Frequency Range: 1 to 6000 MHz.
• Accuracy: +/- 2.5 X 10-6 @ 25°C.
• Frequency resolution: 1 kHz.
• Output Power: -10 dBm.
• Return Loss Measurement Range: 0 dB to -60 dB.
• VSWR Measurement Range: 1.0 to 65.0
• Measurement Speed: 1 ms / data port.
• Bandwidth: 100 Hz to 30 kHz.
• DTF Range: 0 to 1500 m.
• Test port connector: N Female (50 Ohm).
• Connectors: Micro USB, USB 2.0
• Power measurement: No.
• Battery: Rechargeable Li-Ion for 4 Hrs. of operation (8 Hrs. / charge).

Applications:

Global Cellular, PCS/DCS Protocols, CDMA, GSM, LTE, 3G, Broadcast, Government, Military Tactical, Microwave, Paging, Public Safety, Trunking, WLAN, TETRA, WLL.

Standard accessories:

Calibration Combo, Test Lead, AC Adapter, Hard Carrying Case, Soft Carrying Case, RF Cable, USB Drive, USB Adapter, Battery and Instruction Manual.

*Ask for Delivery Time.
