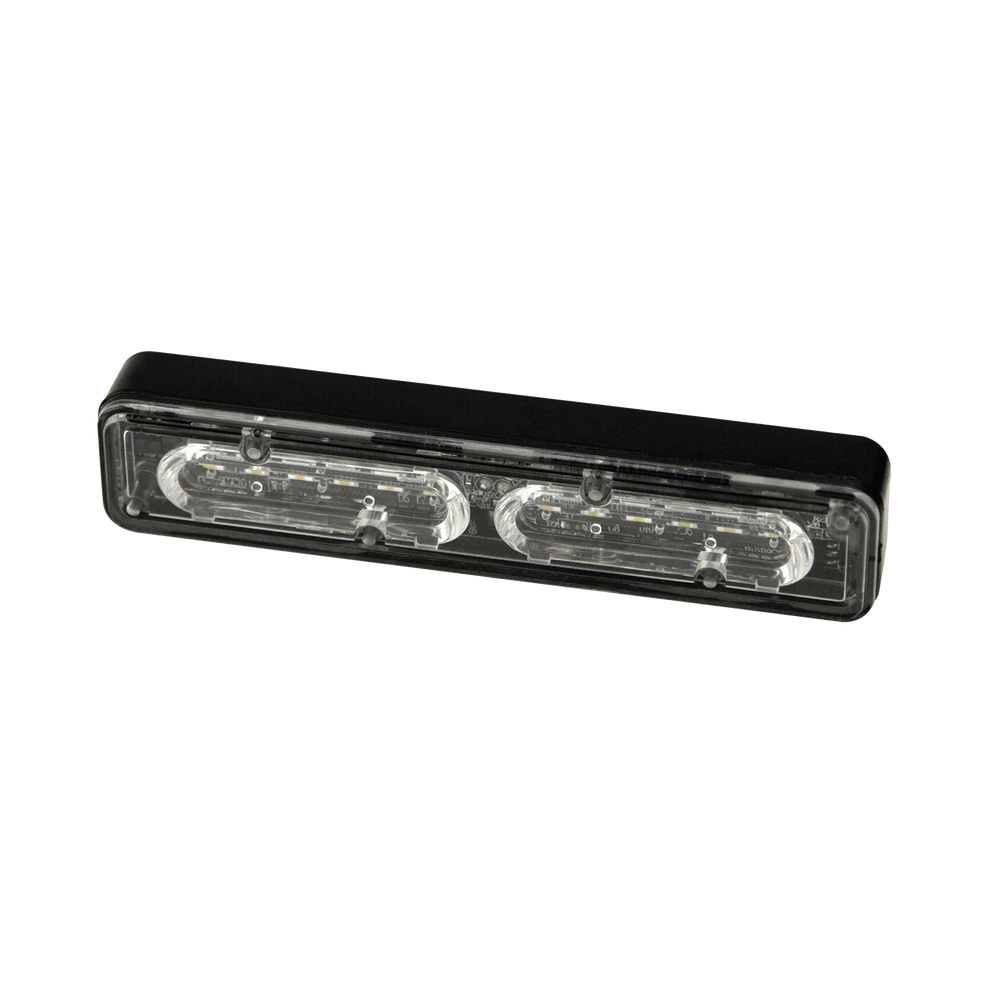

Amber/clear warning light

Amber/clear warning light

ED3712 Series

SAE Class I Dual-o Tri-Color Multi-Mount

The ED3712 series is an ultra-thin, low-profile LED. This compact, dual-color LED is ideal for a wide variety of applications, offering the flexibility of four mounting options: surface mount, tilt bracket, self-adhesive mount, and edge mount (all necessary hardware is included with each light). With 12 flash patterns and sync capability, this super-bright LED is designed for maximum light output at all angles. Each model can be programmed to display individual colors or alternating colors.

Features and Benefits

• 12-24 VDC, 1.25 amps

• 12 High intensity LEDs (ED3712XX)

• 18 High intensity LEDs (ED3712XXX)

• Low profile with 4 mounting options

• Synchronizable

• Aluminum housing, polycarbonate lens

• Temperature range: -22ºF to + 122ºF (-30ºC to + 50ºC)

5 Year Warranty, SAE Class I, CA TITLE 13, R10, R65, RoHS, 13 Flash Patterns, Polycarbonate Lens & Waterproof Housing, 12-24 Vdc, 1.25 Amp
