Addressable photoelectric smoke detector with thermal sensor, white, includes 6" mounting base

Addressable photoelectric smoke detector with thermal sensor, white, includes 6" mounting base

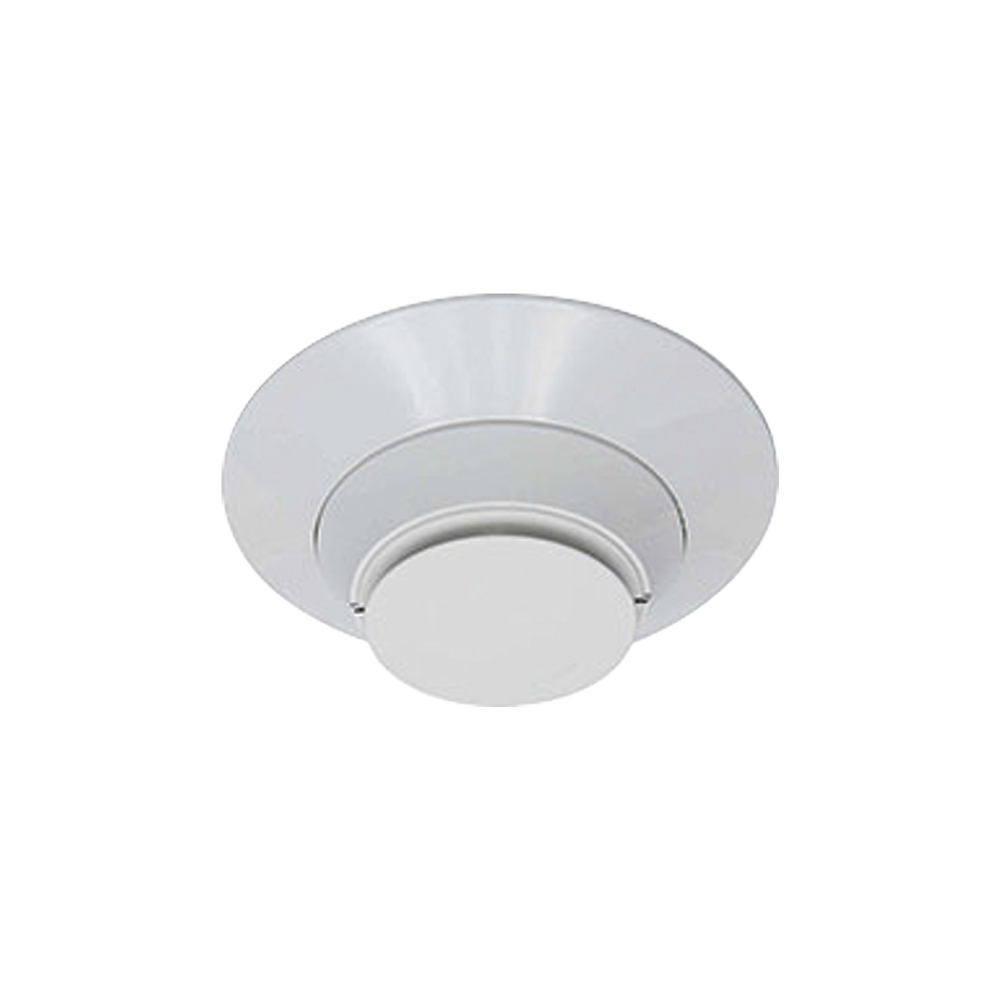

The SD365T model is a plug-in type multi-sensor smoke sensor that combines a photodetector camera  electronics and a fixed 135°F (57.2°C) heat detector, communicating via analog addressing. The sensors transmit an analog representation of smoke density over a communication line to a control panel. Rotary address switches are provided for setting the sensor address. The intelligent photoelectric and temperature detector also transmits an alarm signal upon reaching 135°F (57.2°C) per UL521.

Characteristics:

• Listings and Approvals: UL, ULC, FM, and CSFM
• New modern profile
• Analog communications
• Low current consumption
• Rotary direction switches
• Dual LEDs for 360° visibility
• Color options include white and ivory
• Includes 6' mounting base

*Not compatible with MS9050 panel, if you have MS9050 quote SD365T-IV

Includes 6" mounting base, Use on Fire-Lite addressable panels, Lite-Speed ​​Protocol
