2 x 16 AWG FPLR Fire and Paging Cable Reel / 305 m / Sunlight Resistant / Shielded / Indoor Use

2 x 16 AWG FPLR Fire and Paging Cable Reel / 305 m / Sunlight Resistant / Shielded / Indoor Use

$1.302.550 COP
$1.424.664 COP $1.302.550 COP
Sale Sold out
Shipping calculated at checkout.

2 x 16 AWG FPLR Fire and Paging Cable Reel / 305 m / Sunlight Resistant / Shielded / Indoor Use

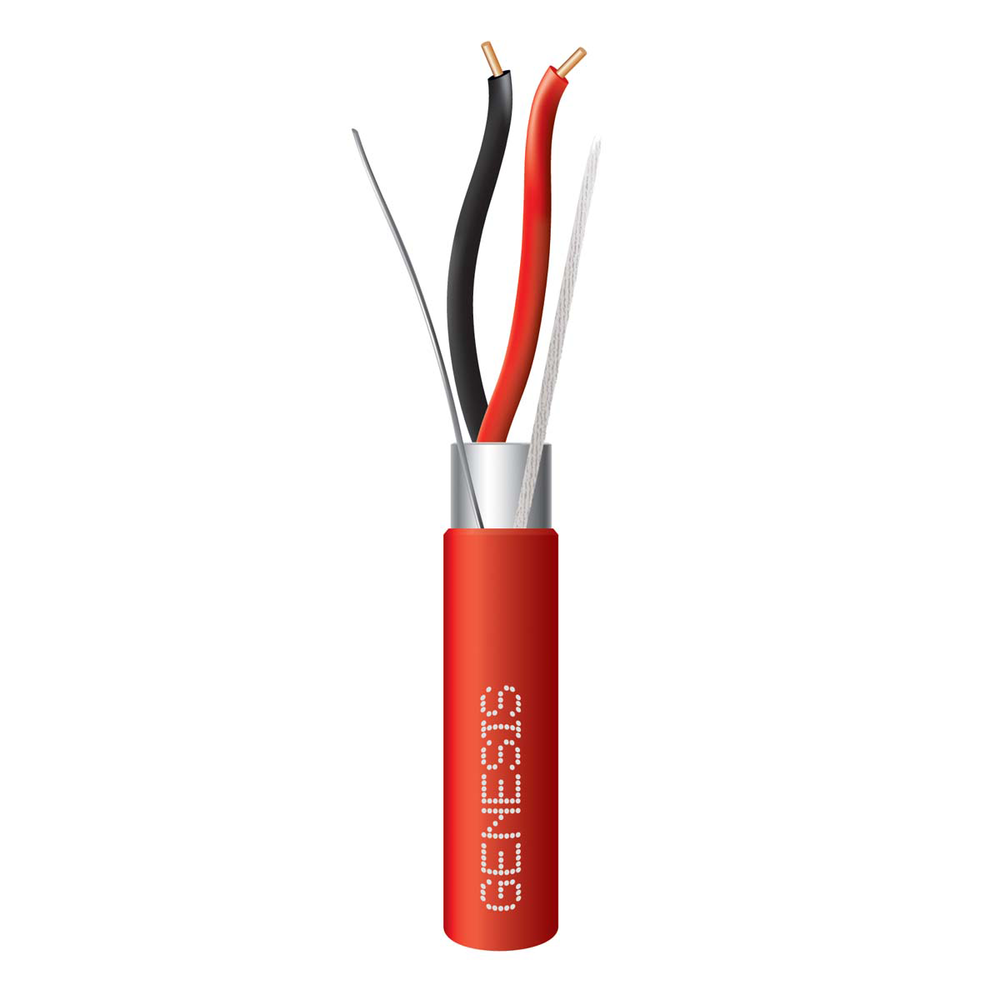

16 gauge 2-conductor cable with red jacket, fire alarm applications.



In the world of fire alarm and evacuation systems, Honeywell's Genesis® brand brings us the 2 x 16 AWG stranded cable that stands out as a true masterpiece of electrical engineering. This exceptional cable, manufactured with meticulous attention to detail and the highest quality standards, represents the ultimate choice for those who demand maximum performance from their electrical systems based on reliable signal delivery and the prevention of false alarms.


Use in alarm applications with conventional and analog addressable technologies, sensor wiring, siren wiring, detector wiring with analog addressable technology, audio evacuation systems.

Characteristics:
  • Insulation colors: Black and Red .
  • Ripcord: Yes.
  • Nominal Outside Diameter: 0.48768 cm (0.192 in).
  • Solid or multifilament: Solid.
  • Conductor material: Bare copper.
  • Conductor insulation material: Polypropylene.
  • Jacket material: PVC.
  • Armor: Yes.
  • Operating temperature: -20° to 75°C.

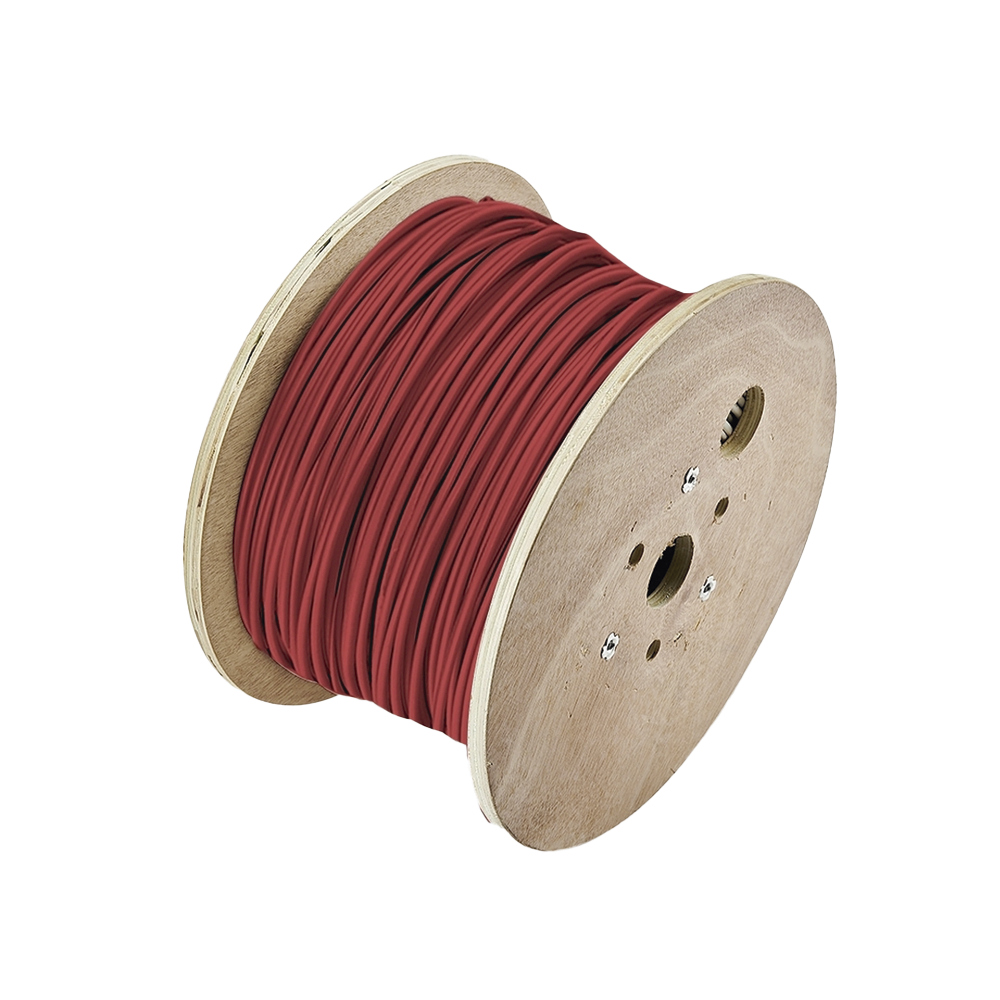

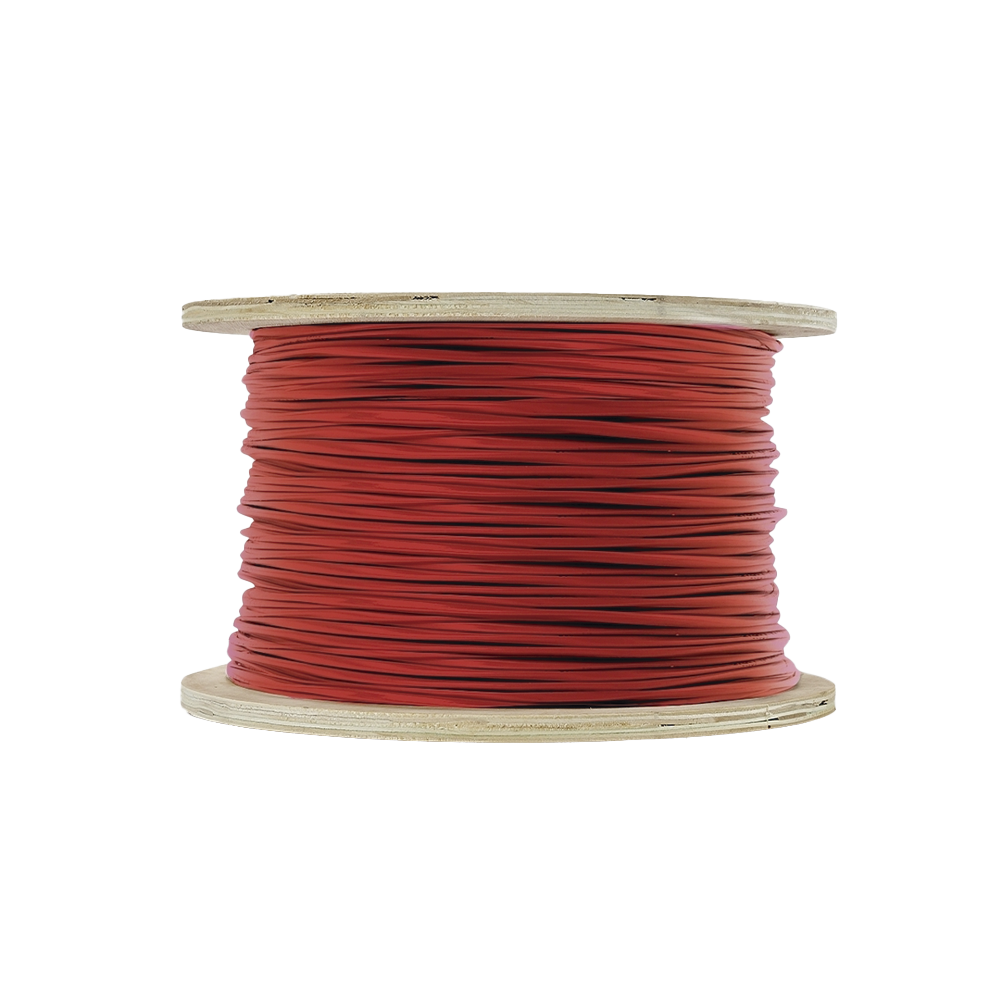

  • Cable packaging: Reel.
  • Length per unit: 305 meters (1000 feet).
  • Dimensions: 29.845 x 29.845 x 18.415 cm (11.75 x 11.75 x 7.25 inches).
  • Weight: 11203.73 g
Physical and electrical characteristics:
  • Nominal voltage (max.): 300 V.
  • Direct Current Resistance (max): 4.1 ohms/1000 ft at 20°C.
  • Capacitance (nominal): 41.7 pF/ft.
  • Impedance (nominal): 37 Ohms.
Highlighted Features:
  • Cable list: FPLR, CL3R, FT4.
  • It can be installed in locations exposed to sunlight, as it has been tested for 720 continuous hours of sunlight without any alterations.
  • This Genesis® cable features two 16 AWG stranded copper conductors. Choose this cable for a reliable fire alarm or paging system wiring solution, depending on your deployment.

* Price per 305 meter coil

    Stranded cable, Sunlight resistant, 2 x 16 AWG spool of 305 meters, Riser type

41 in stock

MODELO: 44061104
