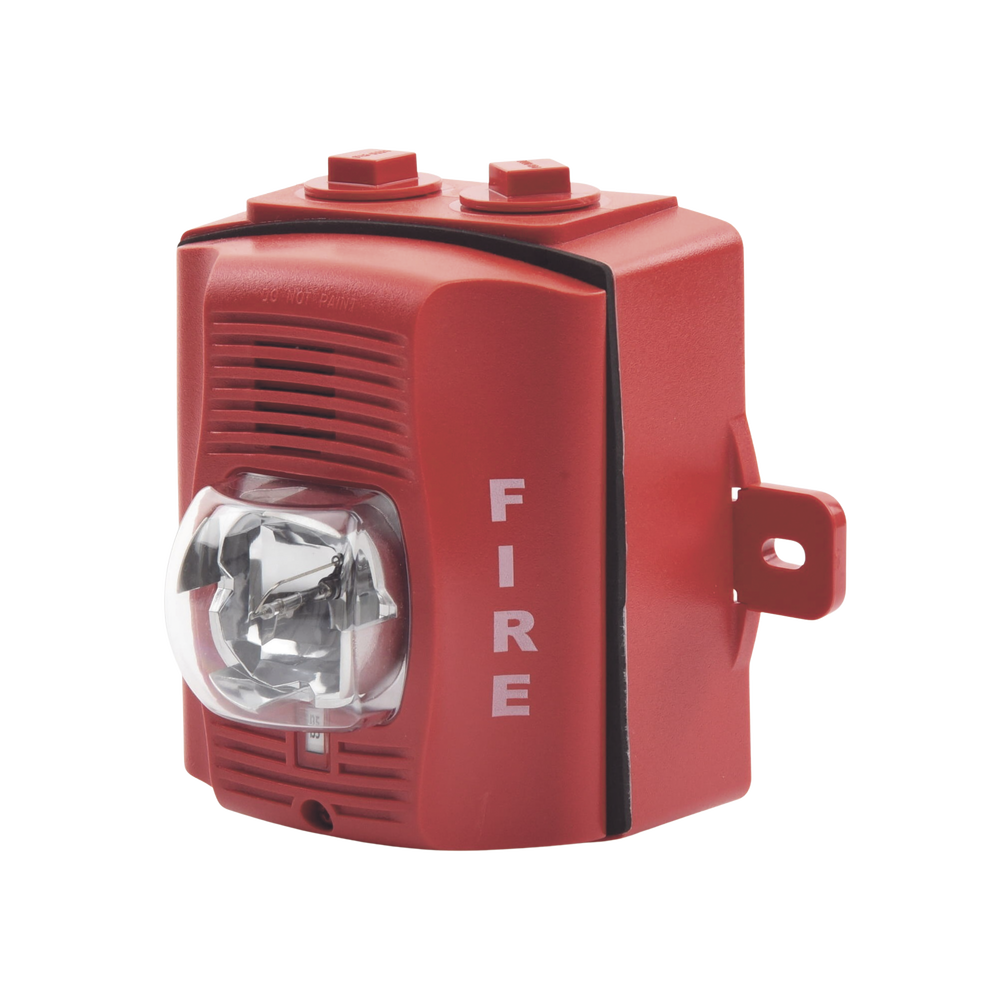

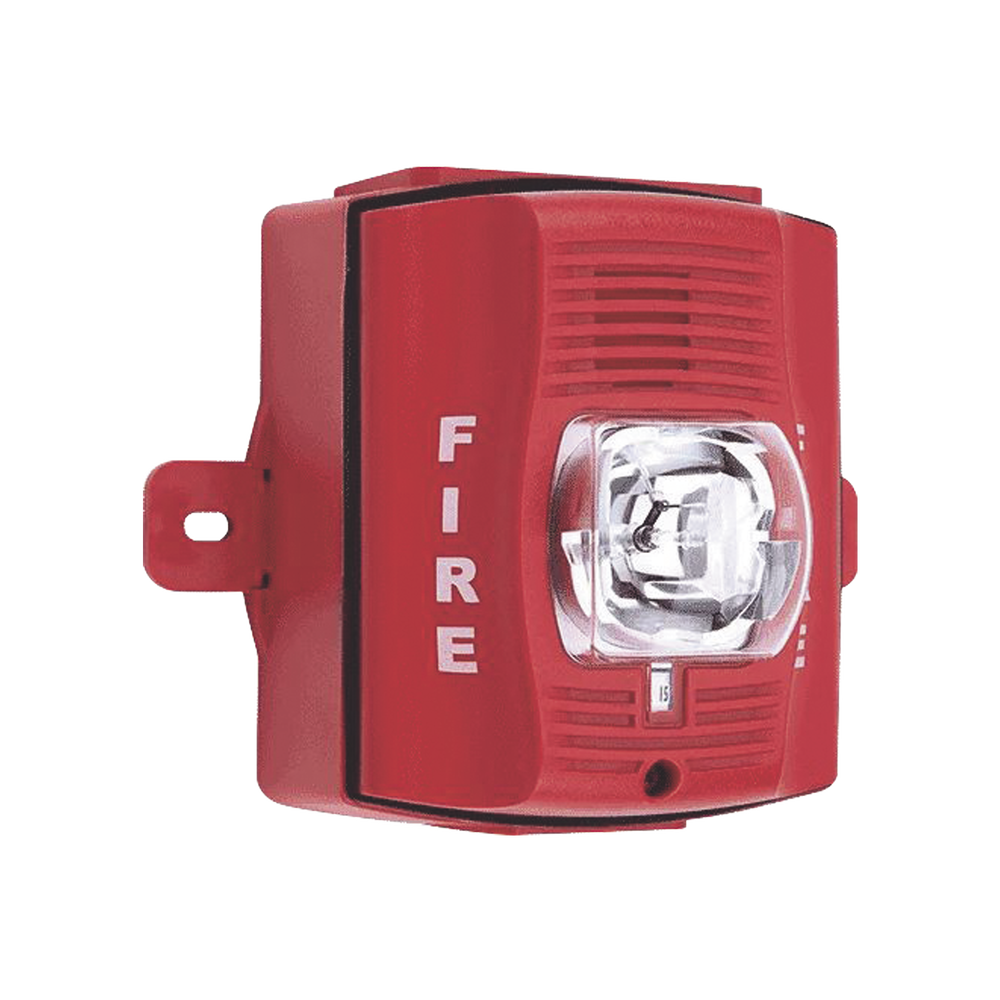

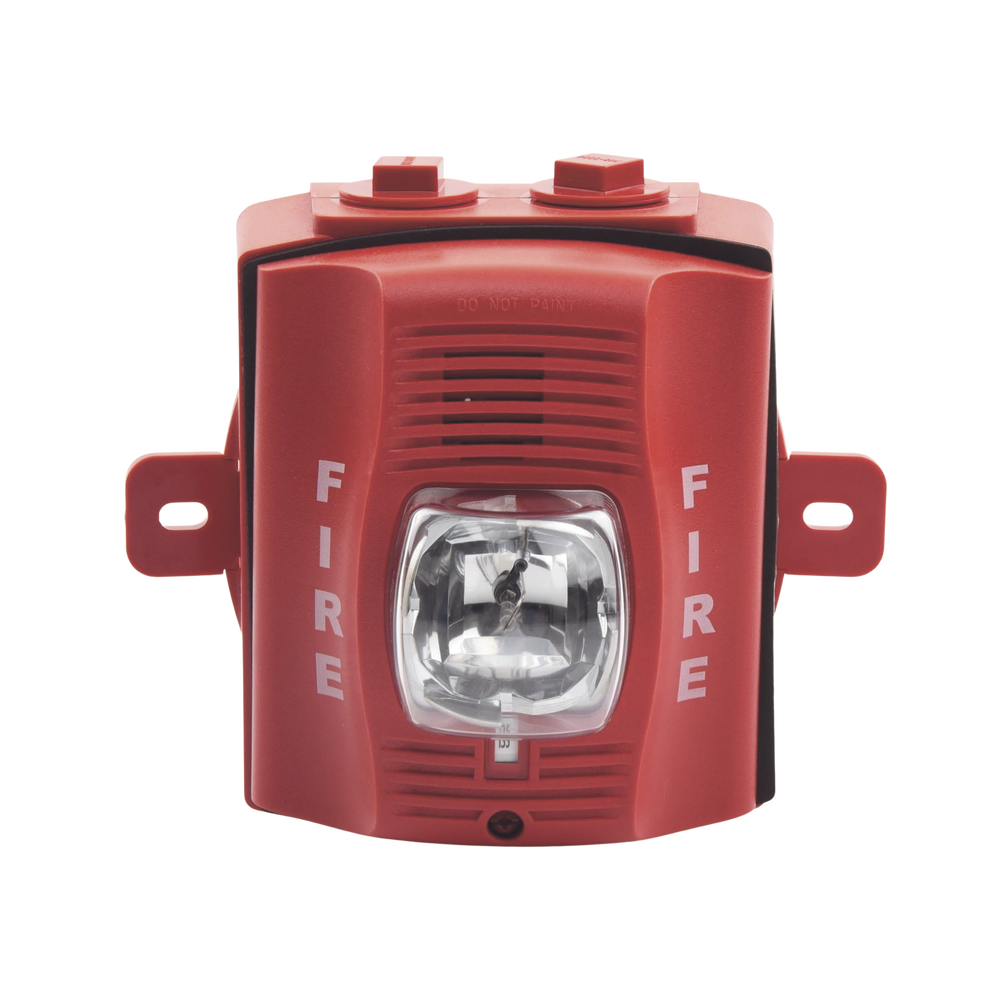

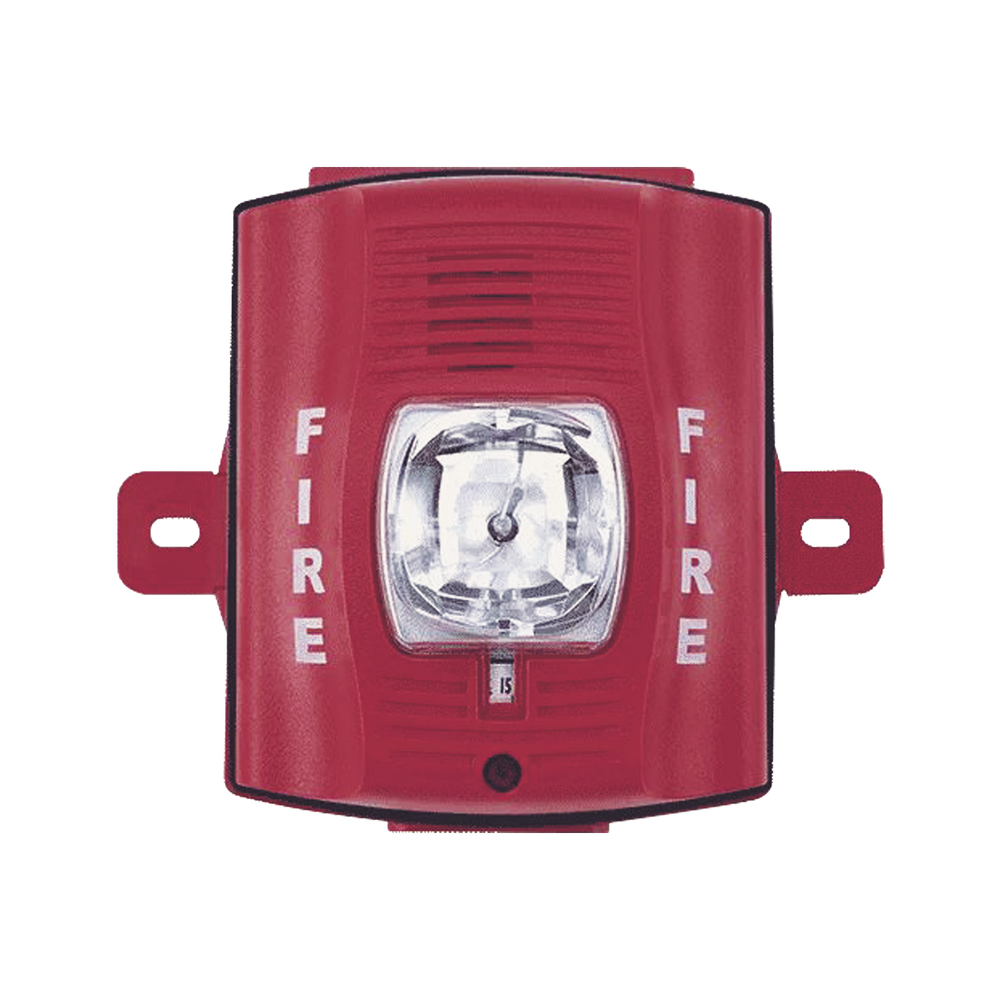

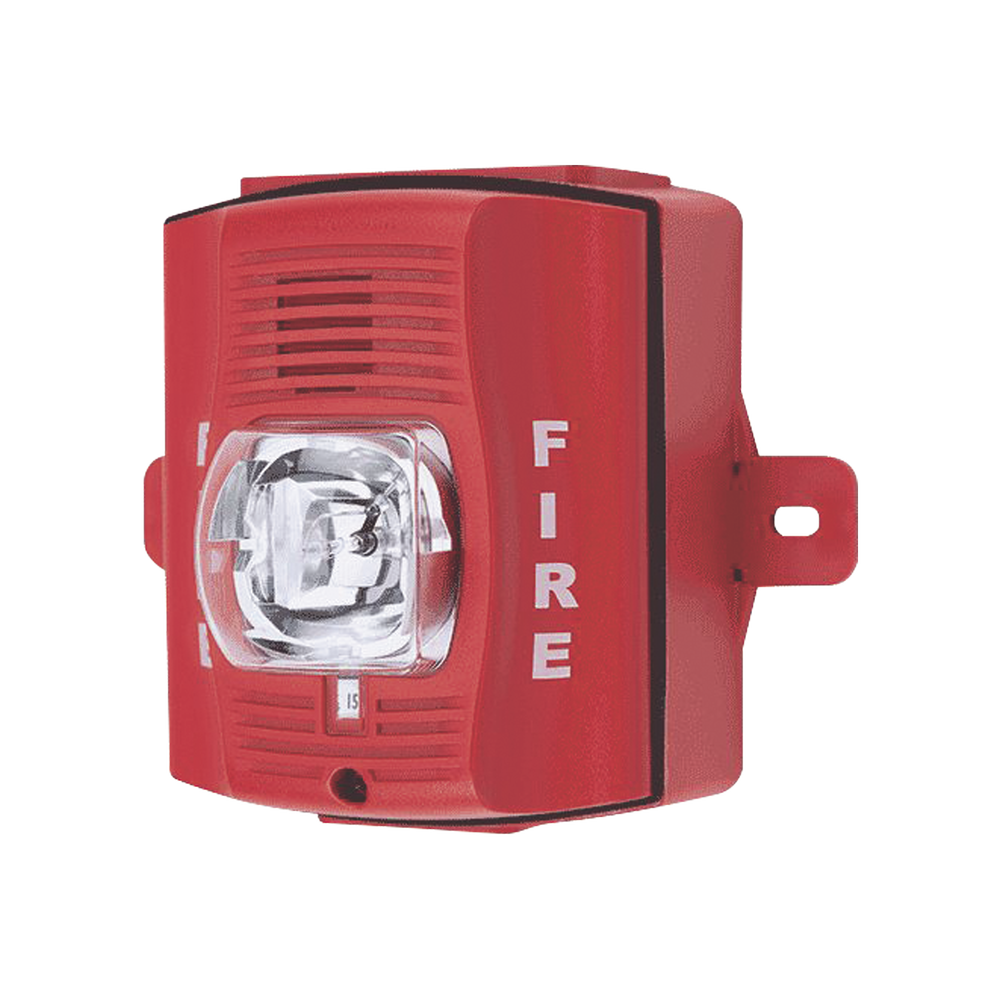

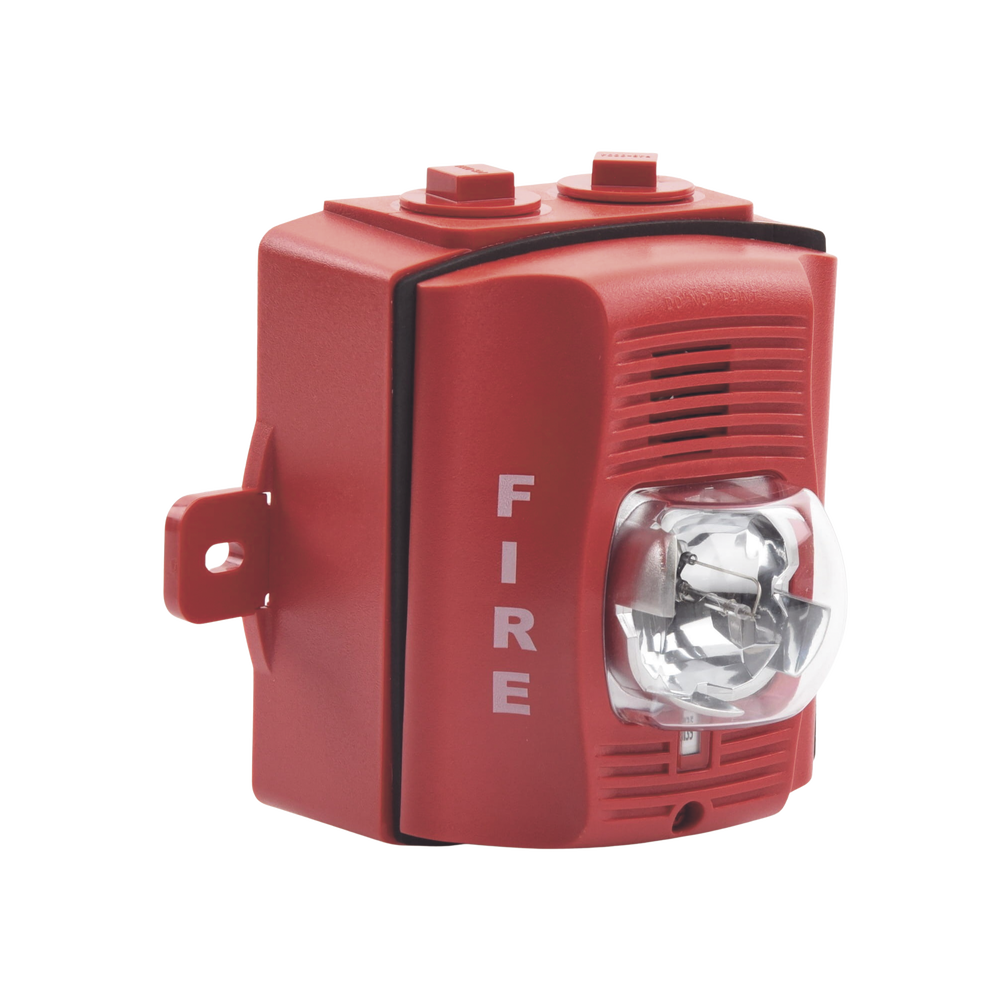

Two-Wire Red Outdoor Strobe Siren Wall Mount

Two-Wire Red Outdoor Strobe Siren Wall Mount

SpectrAlert Advance offers the broadest line of outdoor horns, strobes, and siren strobes in the industry. Featuring white or red plastic housing and wall or ceiling mounting options. Devices with or without FIRE imprinting, SpectrAlert Advance can meet virtually any application, including indoor, outdoor, wet, and dry applications in temperatures from -40°F to 151°F.

Characteristics

• Weatherproof to NEMA 4X, IP56
• Listed to UL 1638 (strobe light) and UL 464 (horn)
• Compatible with System Sensor Synchronization Protocol and legacy SpectrAlert products
• Field-selectable candela settings: 15, 15/75, 30, 75, 95, 110, 115, 135, 150, 177, and 185
• Automatic selection of 12 or 24 volt operation at 15 and 15/75 candela
• Rotary switch for horn tone and three volume selections.
• Horn rated at 88+ dBA at 16 volts
• Rating from –40°F to 151°F
• Universal mounting plate with an onboard shorting spring that tests wiring continuity before installing devices
• Plug-in design with minimal intrusion into the back box
• Tamper-resistant construction
• Listed for ceiling or wall mounting

Specs:

Operating Temperature –40°F to 151°F (–40°C to 66°C)
Strobe Flash Rate 1 flash per second
Nominal Voltage Regulated 12 DC/FWR or regulated 24 DC/FWR1
Operating voltage range 28 to 17.5 V (12 V nominal) or 16 to 33 V (24 V nominal)
Wired terminal gauge 12 to 18 AWG
Wall mount dimensions (including lens) 5.6Ë L × 4.7Ë W × 2.5Ë D (142 mm L × 119 mm W × 64 mm D)
Device dimensions 5.6Ë L × 4.7Ë W × 1.3Ë D (142 mm L × 119 mm W × 33 mm D)

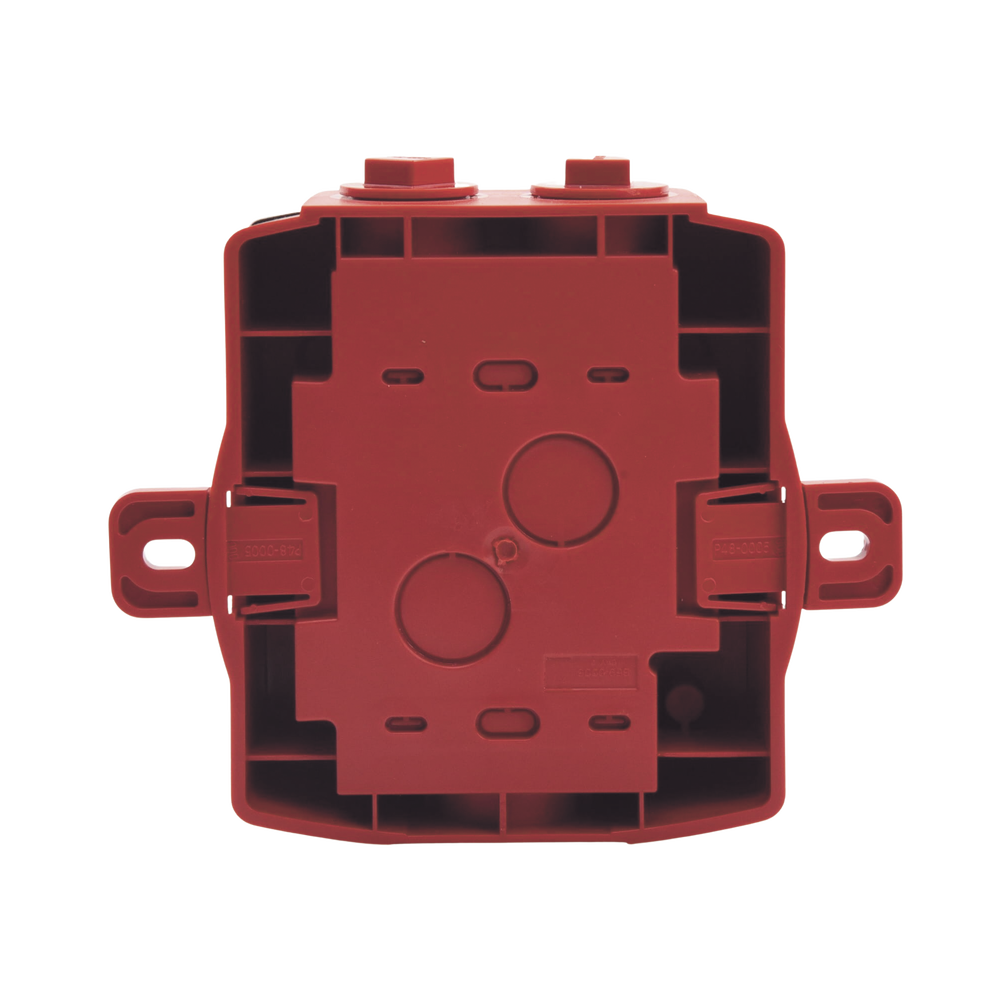

Dimensions with outdoor wall mount (SA-WBB) 5.7Ë L × 5.1Ë W × 2.0Ë D (145 mm L × 130 mm W × 51 mm D)
