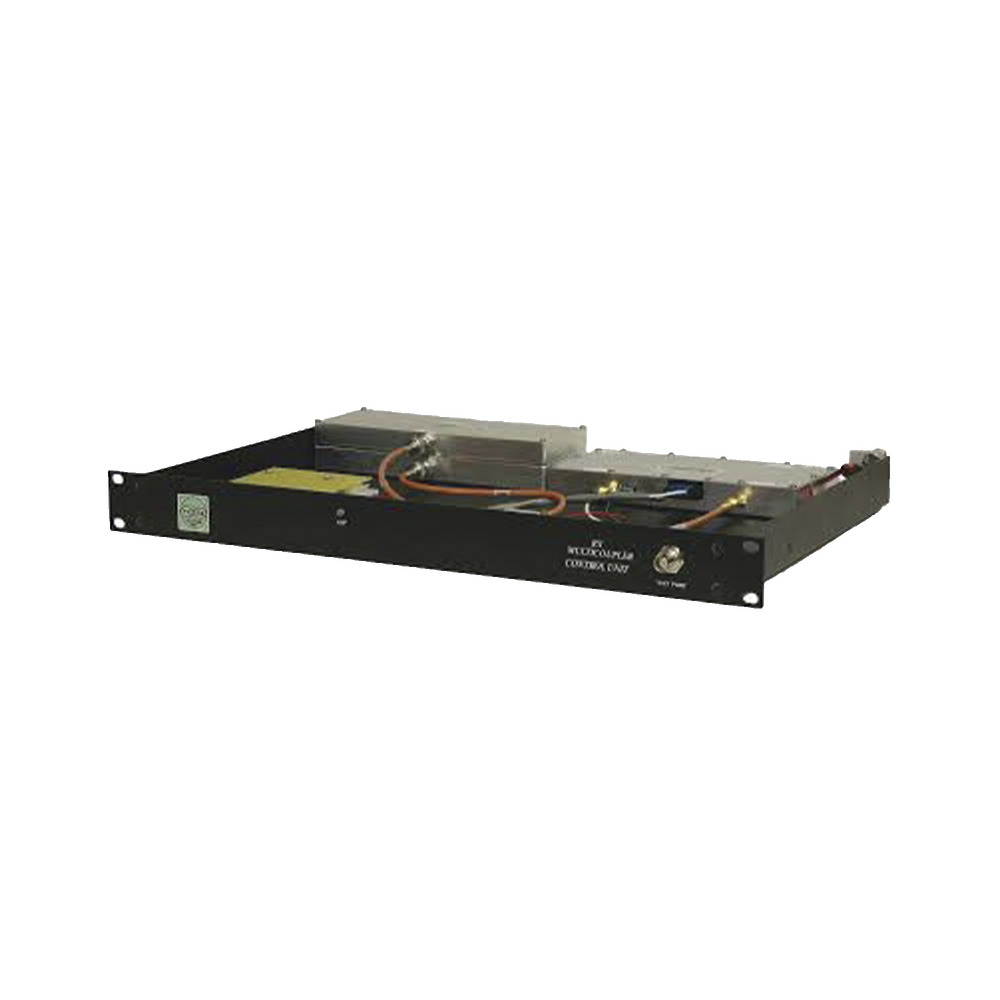

TX-RX Multicoupler, 794-902 MHz. 8 Channels, 18 dB, 85-264 Vac, N Female.

TX-RX Multicoupler, 794-902 MHz. 8 Channels, 18 dB, 85-264 Vac, N Female.

TX-RX Multicoupler, 794-902 MHz, 8 Channels, 18 dB, 85-264 Vac, N Females.

Characteristics:

• They provide unmatched performance in a space-saving 1-rack unit (1-3/4 in.) package.
• High performance LNAs exhibit a very low noise figure while providing a 3rd order output intercept point (100% measured) of more than +40 dBm.
• The multicouplers are designed with a minimum excess gain of 10 dB, giving maximum sensitivity in rural applications.
• All units are designed for easy expansion, with no change in system gain in most cases.
• Three basic models cover the most popular 118 - 901 MHz applications.
• All BIRD receiver couplers are easily expandable by either adding additional power splitters to the existing chassis or by adding a 1-rack unit cover.
• All necessary cables with attached connectors are included in each kit.

Specs:

• 19" rackmount design with 1 RU for space saving.
• Tuned bandwidth: 794-902 MHz.
• System Gain (typical): 18 dB.
• Channels: 8.
• Preamplifier noise figure: 0.8 dB.
• Preamp, 3rd Order Intercept Point: 39 dBm.
• Designed and manufactured with high performance LNA.
• Self-Adjusting Power Supply: 85-264 Vac, 50/60 Hz.
• Connectors: N Female.
• Dimensions (HWD): 44.5 x 482.6 x 355.6 mm.
• Temperature range: 0º - 50 ºC.​

*Ask for delivery time.
