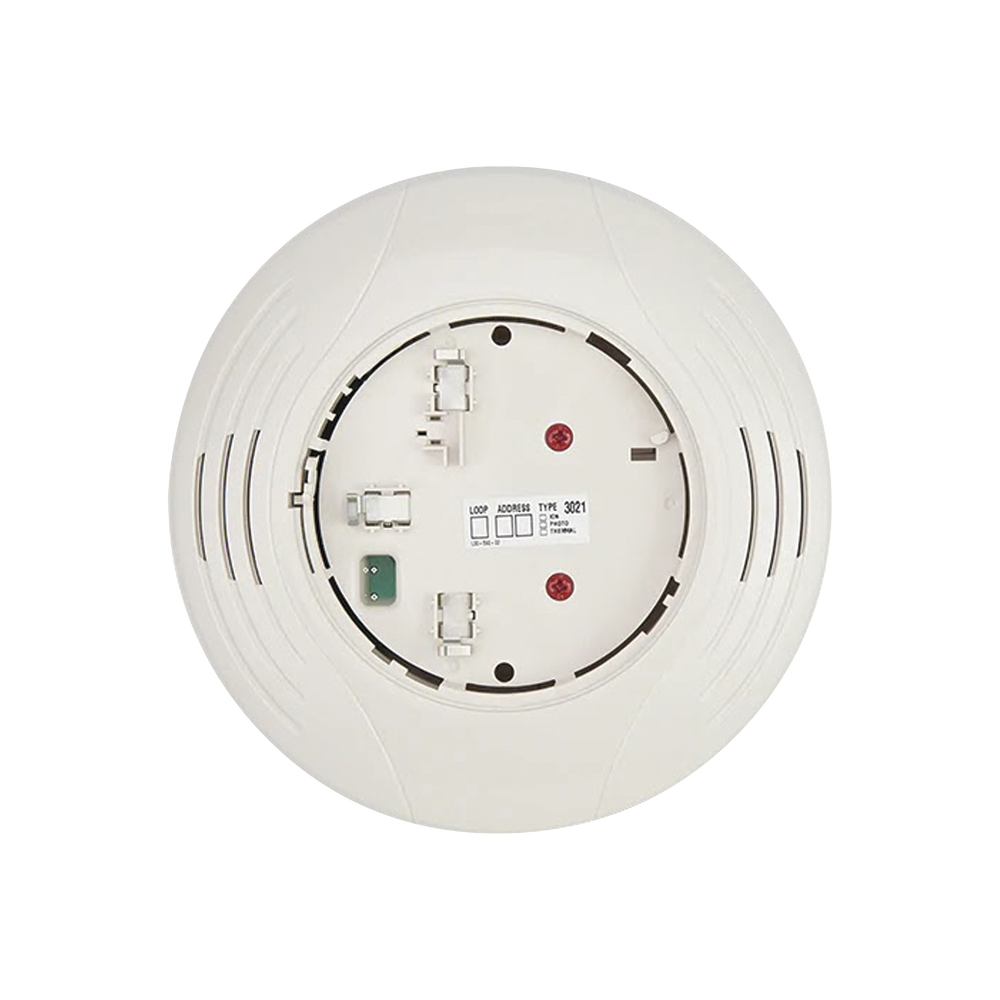

Base with Insulator / Ivory Color

Base with Insulator / Ivory Color

The B224BI-WH and B224BI-IV isolator bases are designed for use in an intelligent system. The isolator bases prevent a complete communications circuit from being disabled when a short circuit occurs. They accomplish this by isolating the portion of the loop containing the short from the rest of the circuit. These bases also automatically restore the entire loop when the cause of the short is corrected. Typically, up to 25 addressable devices can be isolated between isolator bases.

SPECS

Base diameter: 6.85 in (17.4 cm)

Base height: 1.61 in (4.1 cm)

Operating Temperature Range: Refer to the base/sensor cross-reference table at systemsensor.com for the operating temperature range of the corresponding sensor.

Operating humidity range: 10% to 93% relative humidity (non-condensing)

Electrical classifications

Operating voltage: 15 to 32 V DC

Standby current: 450 µA maximum

Isolation current: 15 mA maximum
