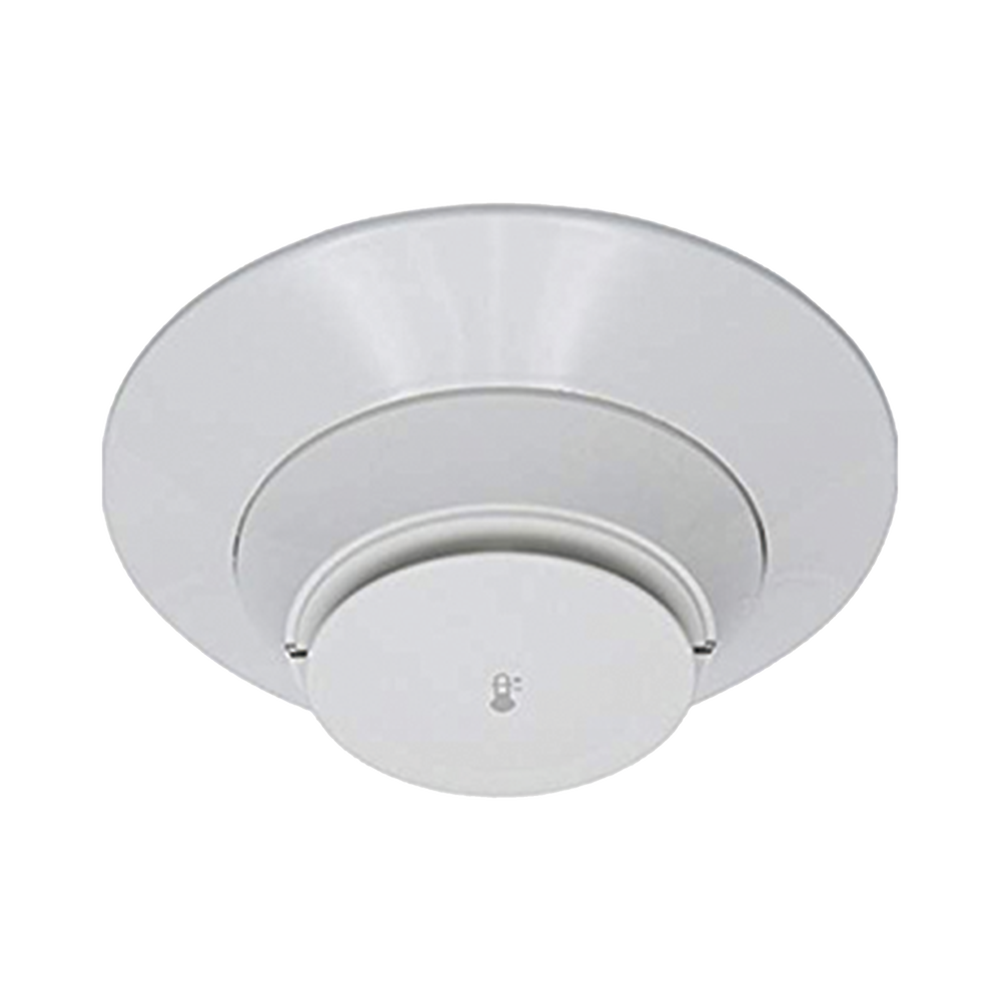

Addressable Fixed Temperature and Rate of Rise Detector

Addressable Fixed Temperature and Rate of Rise Detector

The series includes 135°F/57°C fixed temperature, rate-of-rise and 180°F/88°C fixed, high temperature detectors and are direct replacements for the SK-HEAT series heat detectors. The Point ID address, set using rotary decimal switches, provides specific detector locations. These thermal detectors provide effective, intelligent property protection in a variety of applications.

PHYSICAL / ENVIRONMENT

Size: 2.0" (5.3 cm) tall; base determines diameter

-B300-6: 6.1' (15.6 cm) diameter

-B501: 4' (10.2 cm) diameter

For a complete list of detector bases, see SK-61045.

Operating temperature range: SK-HEAT-W,

SK-HEAT-ROR-W: -4°F to 100°F (-20°C to 38°C)

SK-HEAT-HT-W: -4°F to 150°F (-20°C to 66°C)

Detector Spacing: UL Listed for 50 ft.

(15.24 m) center to center; FM approved for 25 x 25 ft (7.62 x 7.62 m) spacing

Relative humidity: 10% - 93% non-condensing

Thermal Ratings: Fixed Temperature Set Point 135°F (57°C), Detection Rate of Rise 15°F (8.3°C) per minute, High Heat Temperature 190°F (88°C)

ELECTRICAL SPECIFICATIONS

Voltage range: 15 to 32 volts DC peak

Standby Current (Max Average): 200uA @ 24

VDC (one communication every 5 seconds)

(with LED enabled)

LED Current (Max): 4.5 mA @ 24 VDC ('ON')
