Addressable Emergency Station for Fire-Lite Panels with SWIFT Technology

Addressable Emergency Station for Fire-Lite Panels with SWIFT Technology

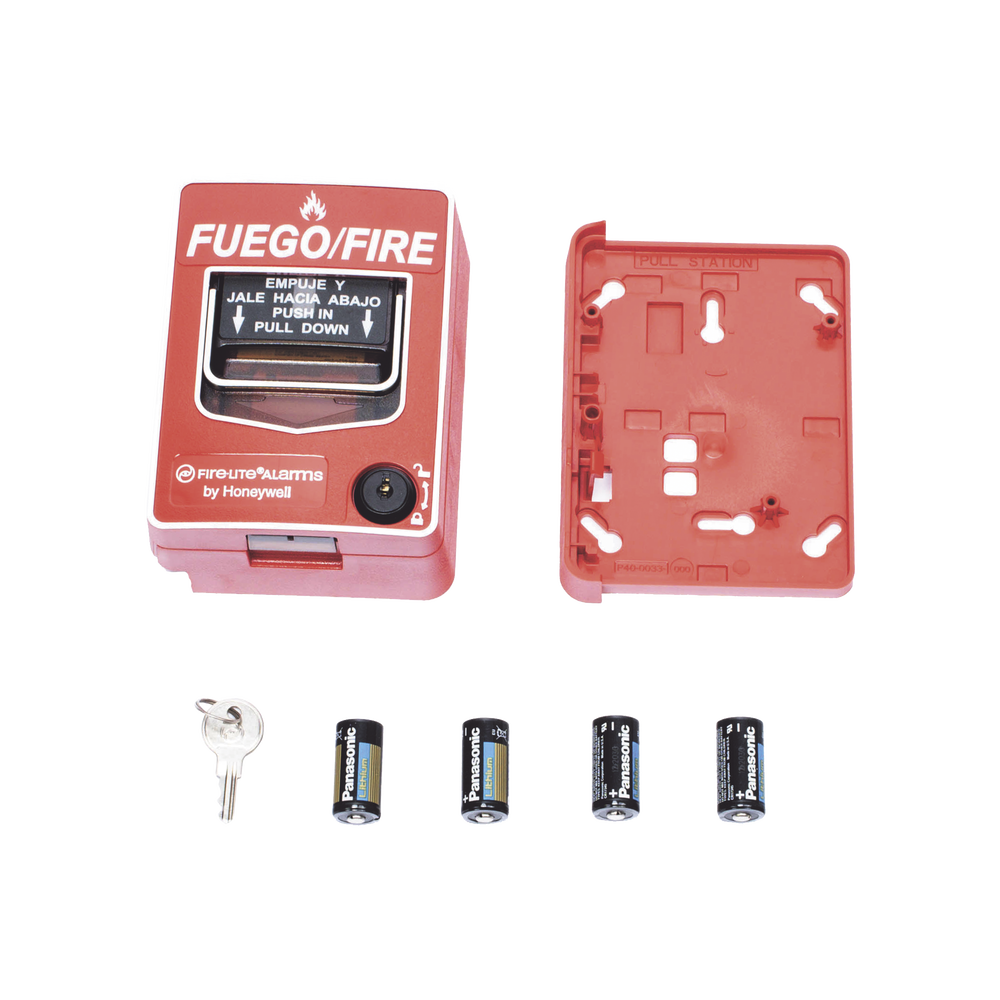

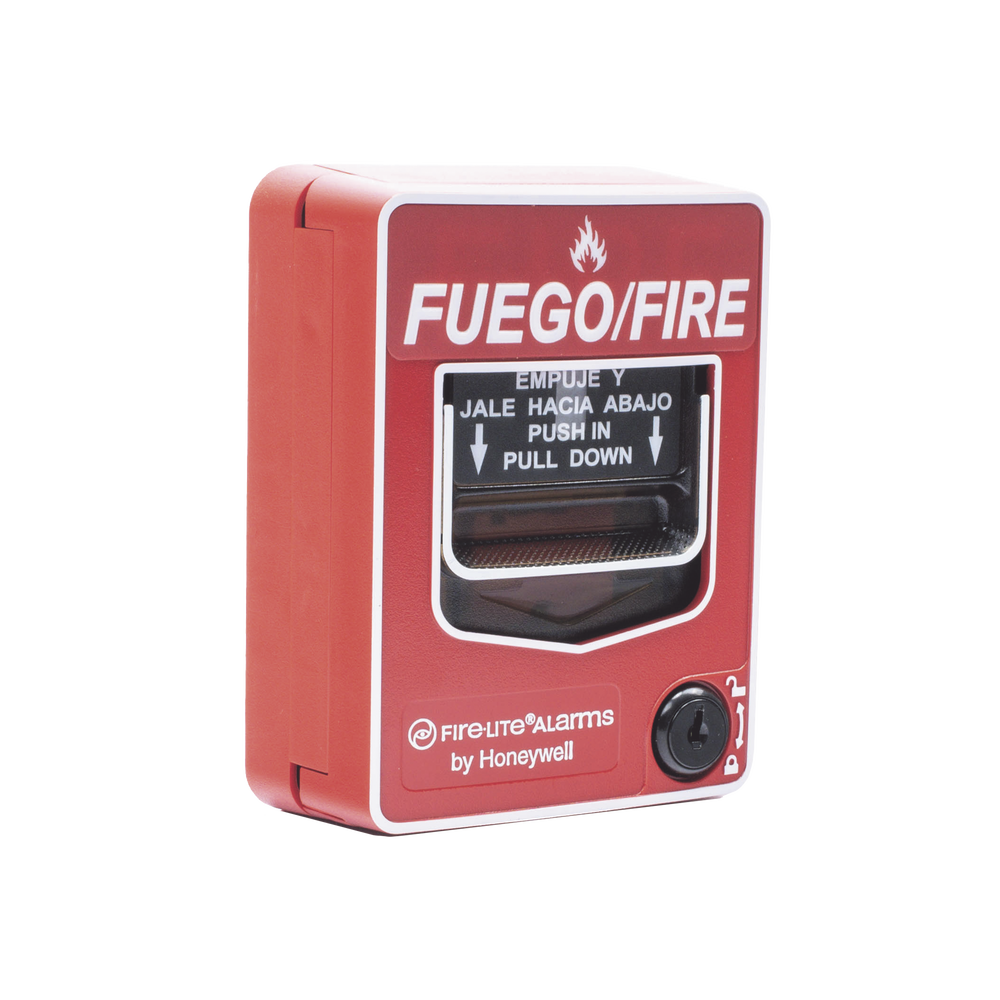

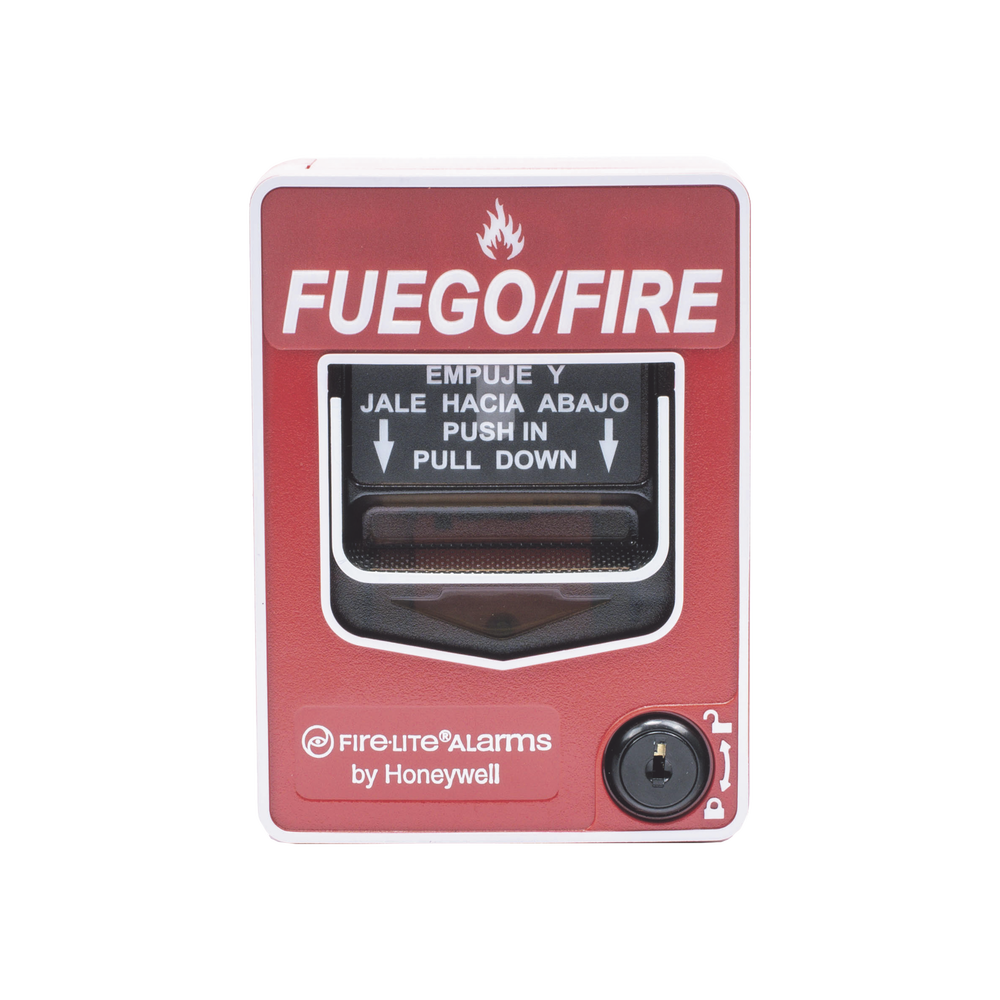

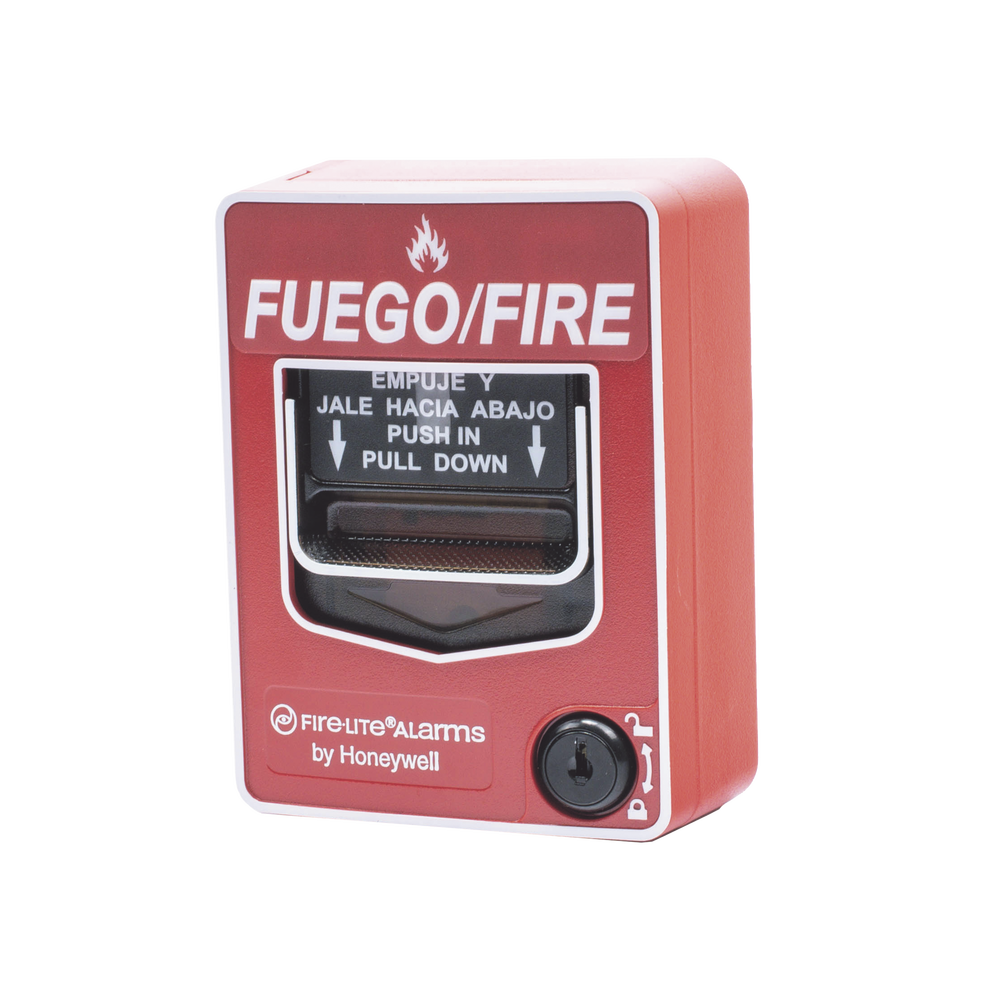

The W-BG12LX Addressable Wireless Pull Station is a dual-action manual pull station with a keylock reset feature. Rotary switches are provided to set the station address. The W-BG12LX is marked in English only (Fire) while the W-BG12LXSP is marked in Spanish and English (Fire/Fuego). The W-BG12LX and W-BG12LXSP communicate with the Fire Alarm Control Panel (FACP) via a wireless mesh network using the W-GATE wired link. Note: Must be used with an ES-200X, ES-50X, MS-9600(UD)LS, or MS-9200UDLS FACP.

Characteristics:

• Integrated status LED
• Requires 4 CR-123 batteries (included)
