Drop Cable Insulator Compatible with STZ35, STZ35G, STZ45 and STZ45G Sections

The tower-mounted lightning rod drop insulator is used to protect tower-mounted equipment such as antennas, video surveillance equipment, radio frequency antennas, etc. from being damaged by an atmospheric discharge.

It provides a separation of 6 to 7 cm between the tower and the drop cable, and can be used to house cables with a maximum gauge of 250 mcm.

Benefits

It provides safe dielectric insulation to prevent direct induction in the discharge phase due to a lightning strike.

Applications

• Guyed towers with video surveillance system.
• Guyed towers with telecommunications antennas .

Characteristics

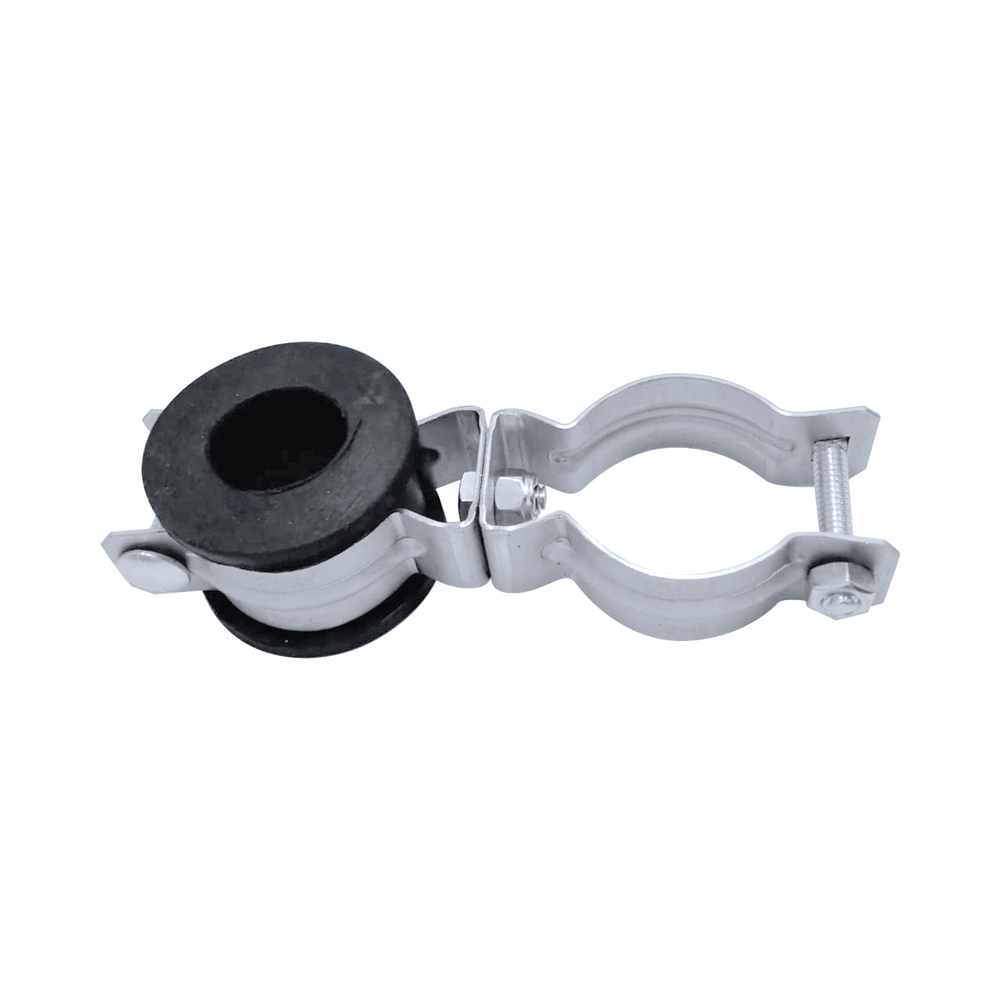

Dielectric insulating bushing assembled with hardware for fastening to a 1 1/4' pipe diameter tower (STZ35 and STZ35G, STZ45 and STZ45G).
