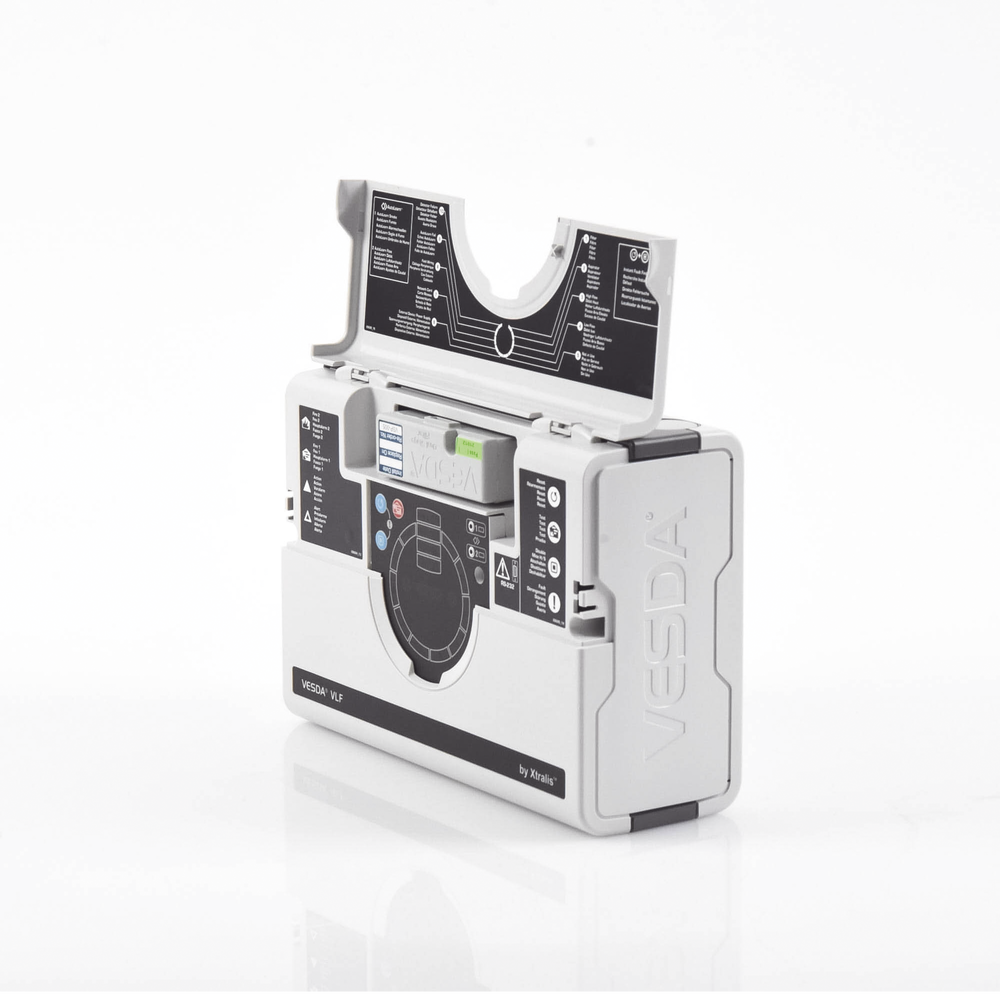

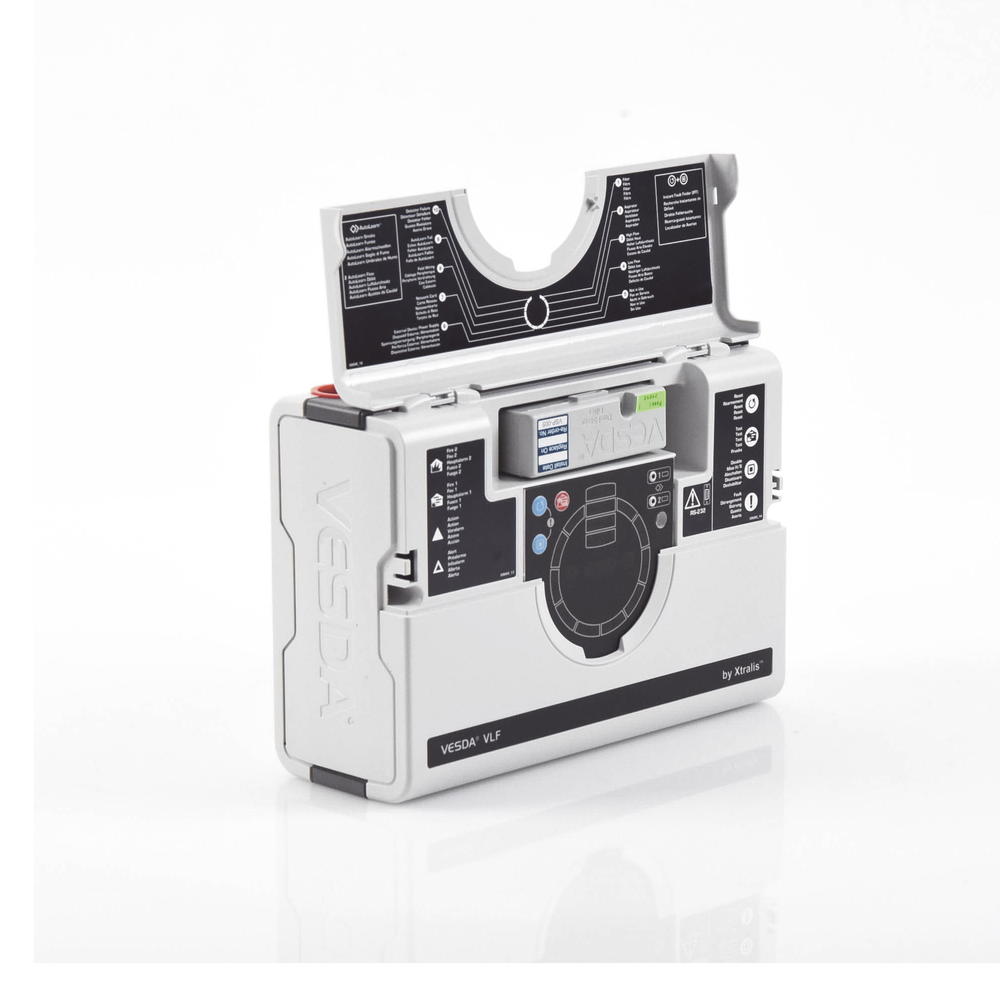

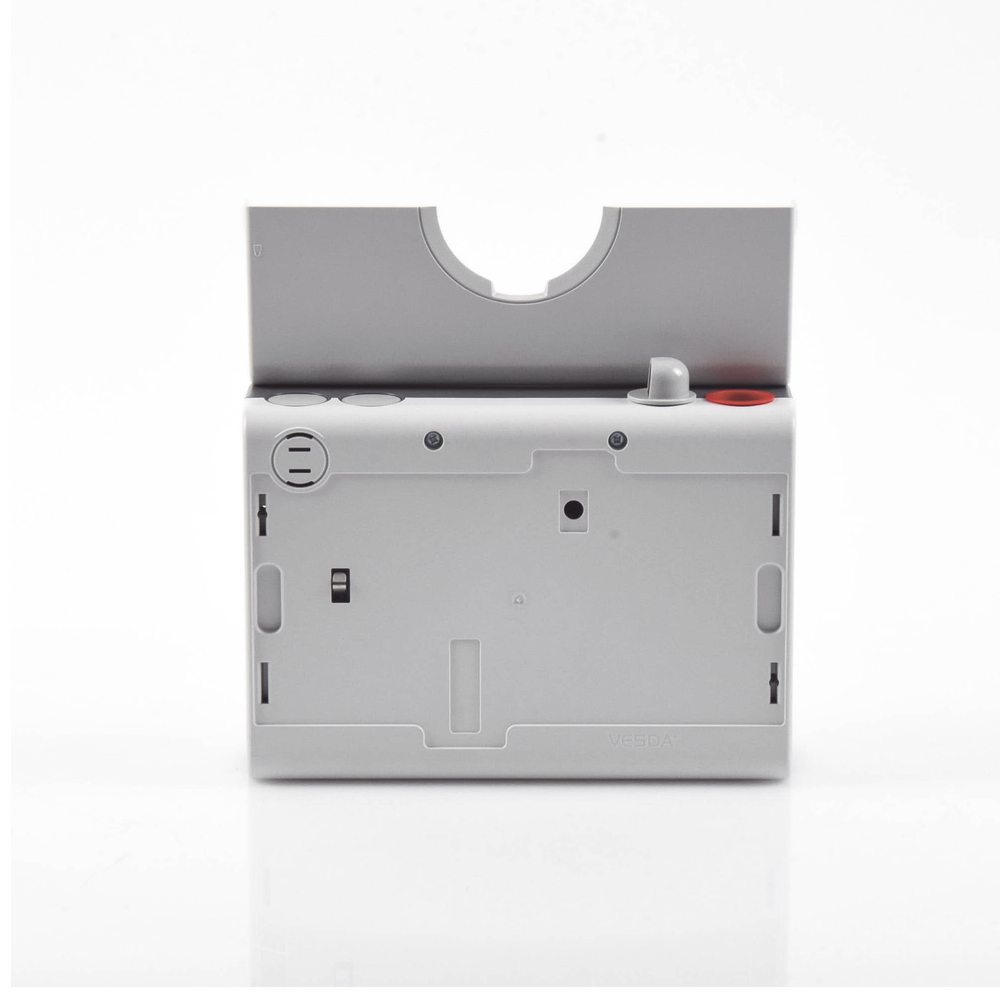

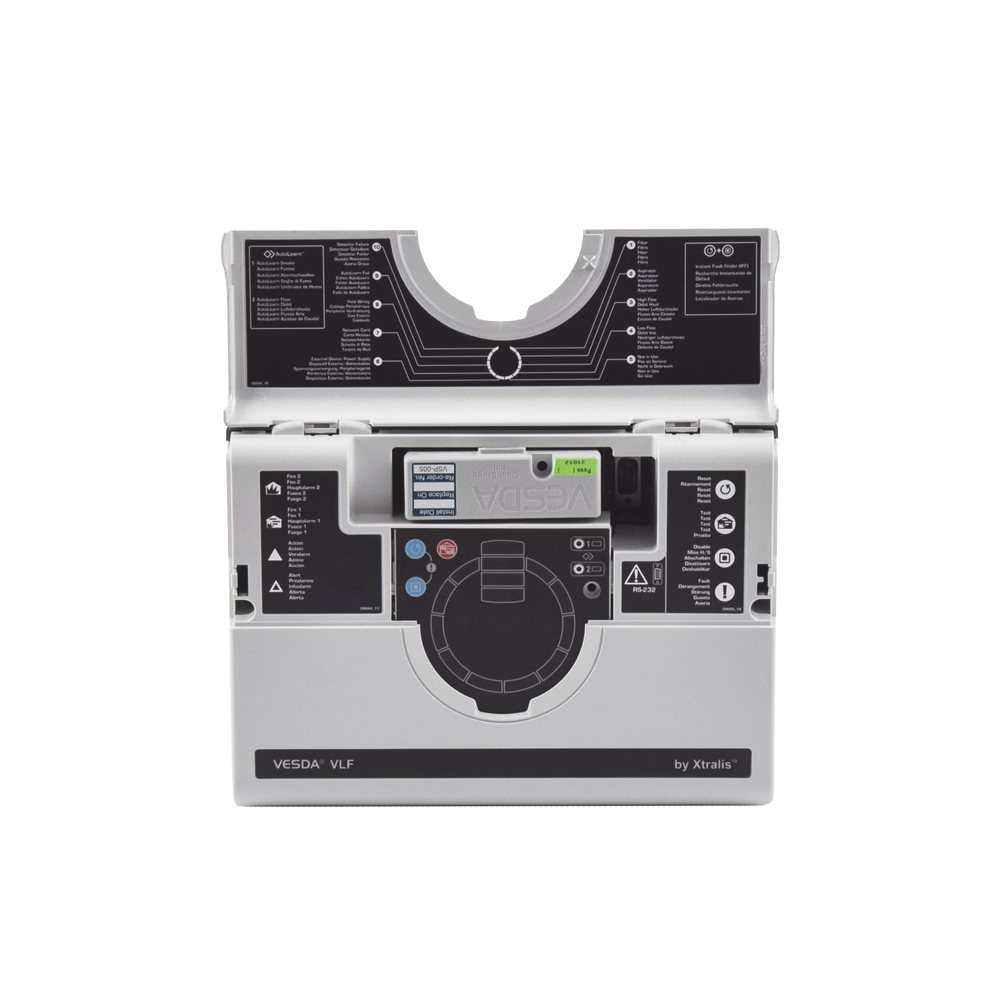

The VESDA VLF-500 is an early warning smoke detector designed to protect large and small areas (less than 500 m2).
The detector works by continuously sampling ambient air through holes in a network of pipes. The air is filtered and passes through a detection chamber, where laser light scattering technology detects the presence of very small amounts of smoke.
Characteristics:
Immediate installation and commissioning
Ultrasonic flow meter
Absolute smoke detection based on laser technology
Predefined pipe network layouts
Programmable alarm thresholds
AutoLearn™ Smoke Level Self-Learning
AutoLearn™ Airflow Self-Learning
Maintenance access door
Record of up to 18,000 events
Coverage of up to 500 m2
Absolute smoke detection based on laser technology, Predefined pipe network designs, Ultrasonic flow meter
