High-Gain LPDA Antenna | Designed for Dual and Triple Band Amplifiers | 698-2700 MHz | 12.15 dBi
High-Gain LPDA Antenna | Designed for Dual and Triple Band Amplifiers | 698-2700 MHz | 12.15 dBi
Couldn't load pickup availability
High-Gain LPDA Antenna | Designed for Dual and Triple Band Amplifiers | 698-2700 MHz | 12.15 dBi

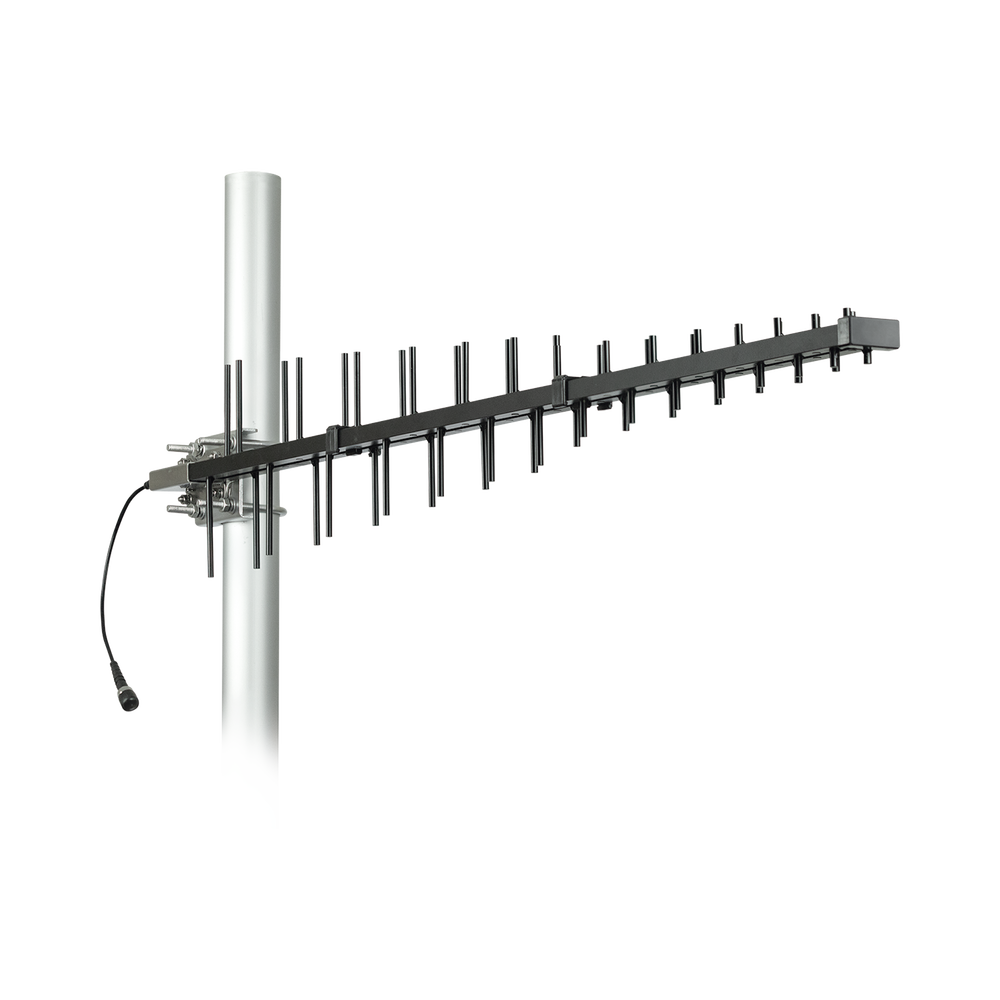

High gain LPDA antenna
Versatile all-weather directional antenna
The high-gain LPDA antenna is made exclusively for WilsonPro commercial-grade amplifiers; renowned for its rugged, all-weather construction, high performance, and tilt-swivel mount.
Versatile and powerful, it operates on all cellular bands worldwide for voice and data, including LTE, CDMA, GSM, UMTS, and AWS. Designed to fit a 1.5'-2' pipe/mast on the exterior of a building, the high-gain LPDA antenna easily adjusts to point in the direction of nearby cell towers.
The high-gain LPDA antenna features an N-female connector, comes with mounting hardware, and works with WilsonPro amplifiers. It comes with a two-year manufacturer's warranty.
How it works
1. The outdoor antenna picks up the cellular signal from the nearest tower.
2. The amplifier amplifies the signal received by the outdoor antenna.
3. The indoor antenna distributes this new signal for indoor use.
Specs
| Model | 311228 |
|---|---|
| Antenna Type | Directional |
| Frequency Bands (MHz) | 698-806•806-960•1710-1880•1900-2200•2200-2700 |
| Peak Gain (dBi) | 12.0 • 12.0 • 12.9 • 13.1 • 11.2 |
| Impedance | 50 Ohm |
| Power | 50 watts |
| Connector | N Female |
| Weight | 1.5 Kg. |
| Radiant Material | Aluminum |
| Mast Mount (in / cm) | 1.5-2.0 / 3.8-5.0 |
| Length (cm) | 111.7 |
| Polarization | Linear |
- Works on all cellular bands in the world for voice and data: LTE / CDMA / GSM / UMTS / AWS, High gain antenna for AdSC Dual and Triple Frequency Band, Rugged and waterproof for all-weather operation, Simple installation kit with tilt and swivel mount on 1.5" to 2" diameter pipe or mast
Share
Out of stock
MODELO: 311-228
