Unmanaged Industrial Switch 5 Gigabit ports, PoE on 4 ports 802.3af/at (120W)
Industrial Non-Manageable PoE+ Switch

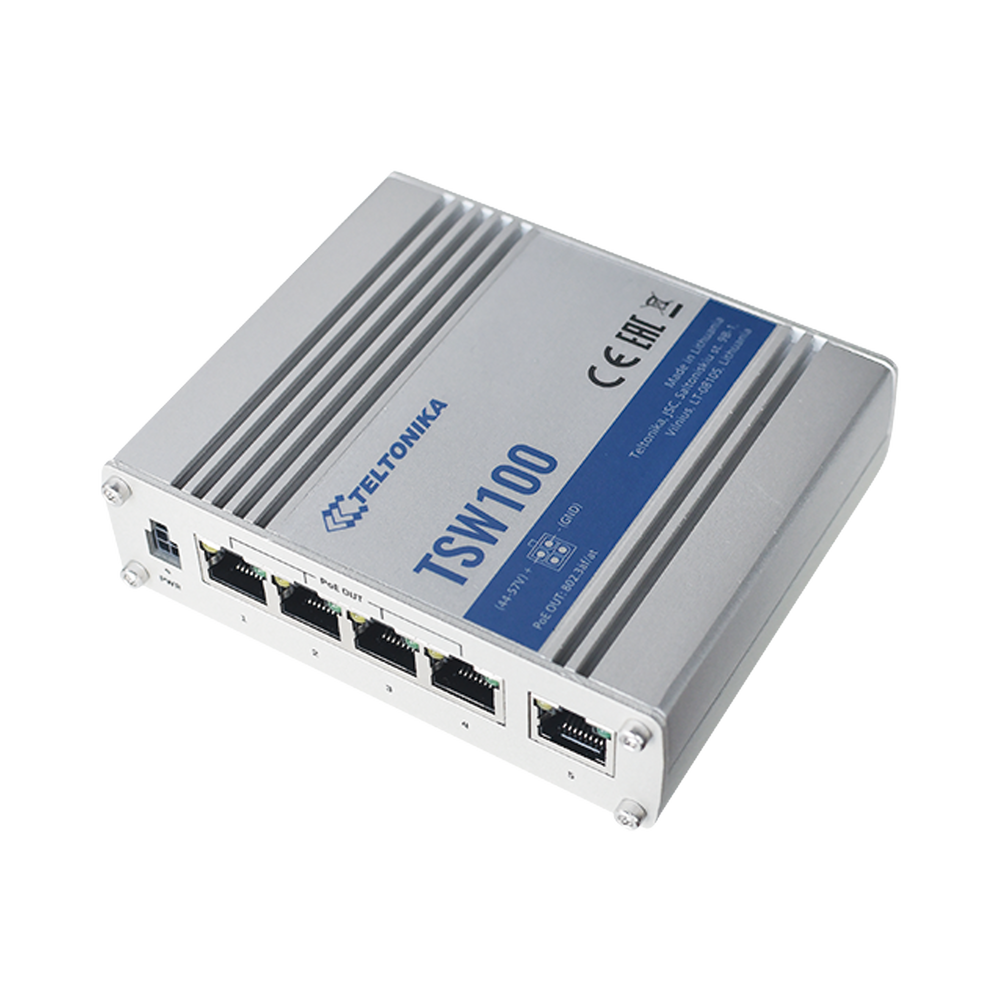

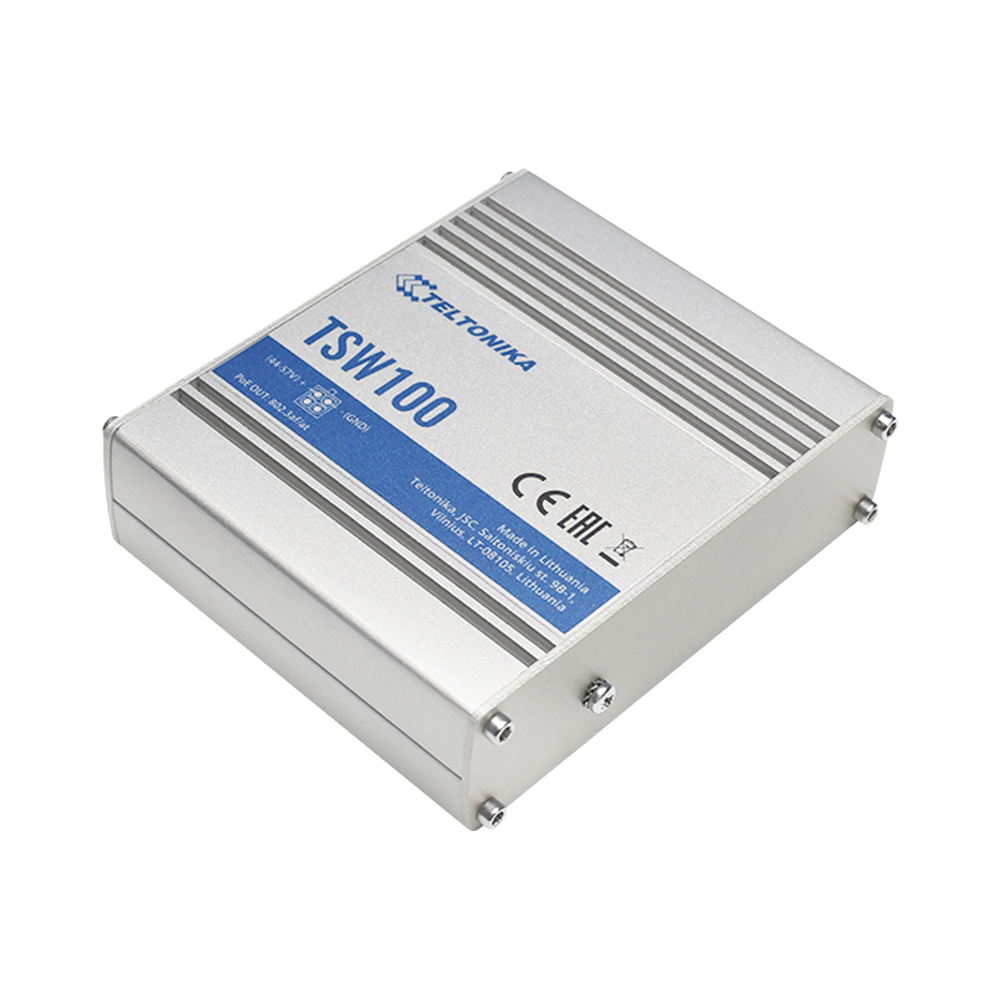

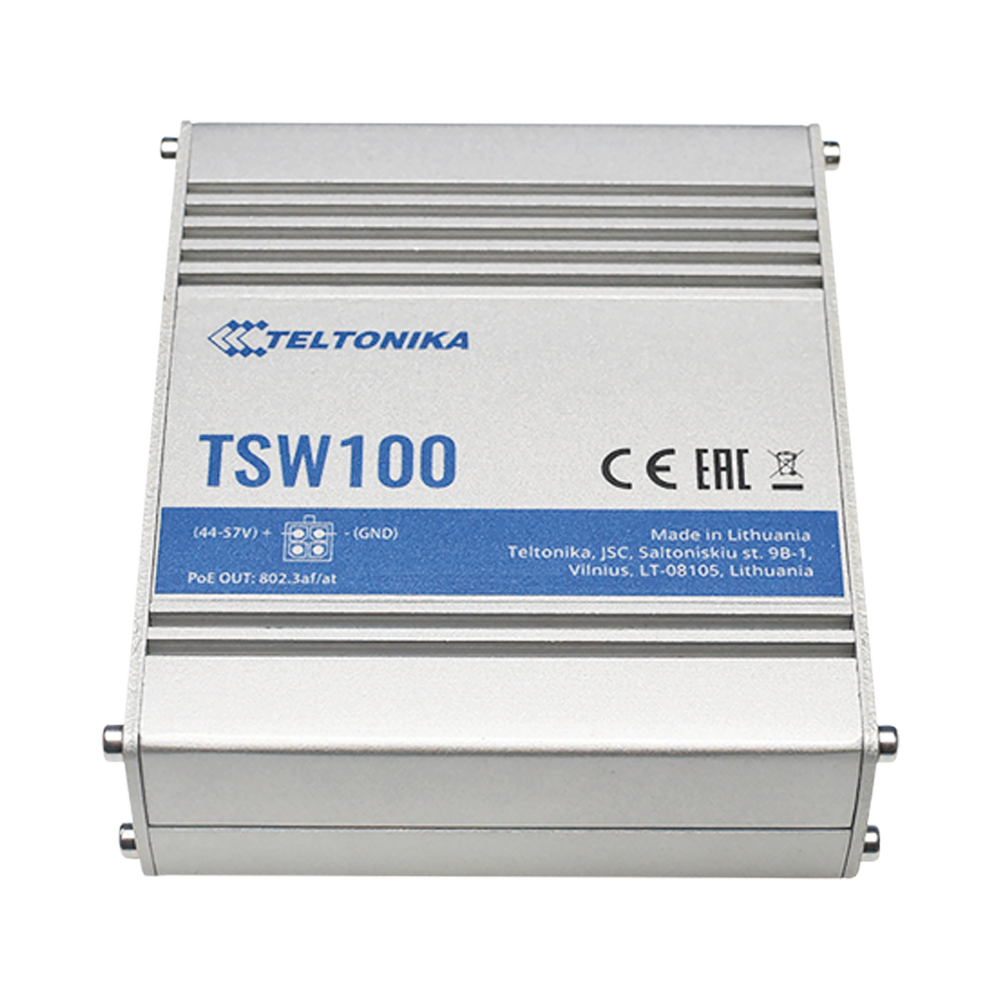

TSW100 is Teltonika Networks' first unmanaged industrial switch.
Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet (PoE) standards.
Classified as Power Sourcing Equipment (PSE), it allows centralization of the power supply, providing up to 30 watts per port and reducing power installation effort.
It has 10/100/1000 Mbps Ethernet ports for a cost-effective, high-bandwidth solution.
Ideal for high-bandwidth professional applications to provide both: reliable data connection and power supply.
Characteristics
General
- Powers equipment with 802.3 af/at standards, up to 30 Watts per port.
- Robust aluminum housing construction with DIN rail mounting option.
- Wide operating range in extreme environments.
- Compact size.
Connectivity

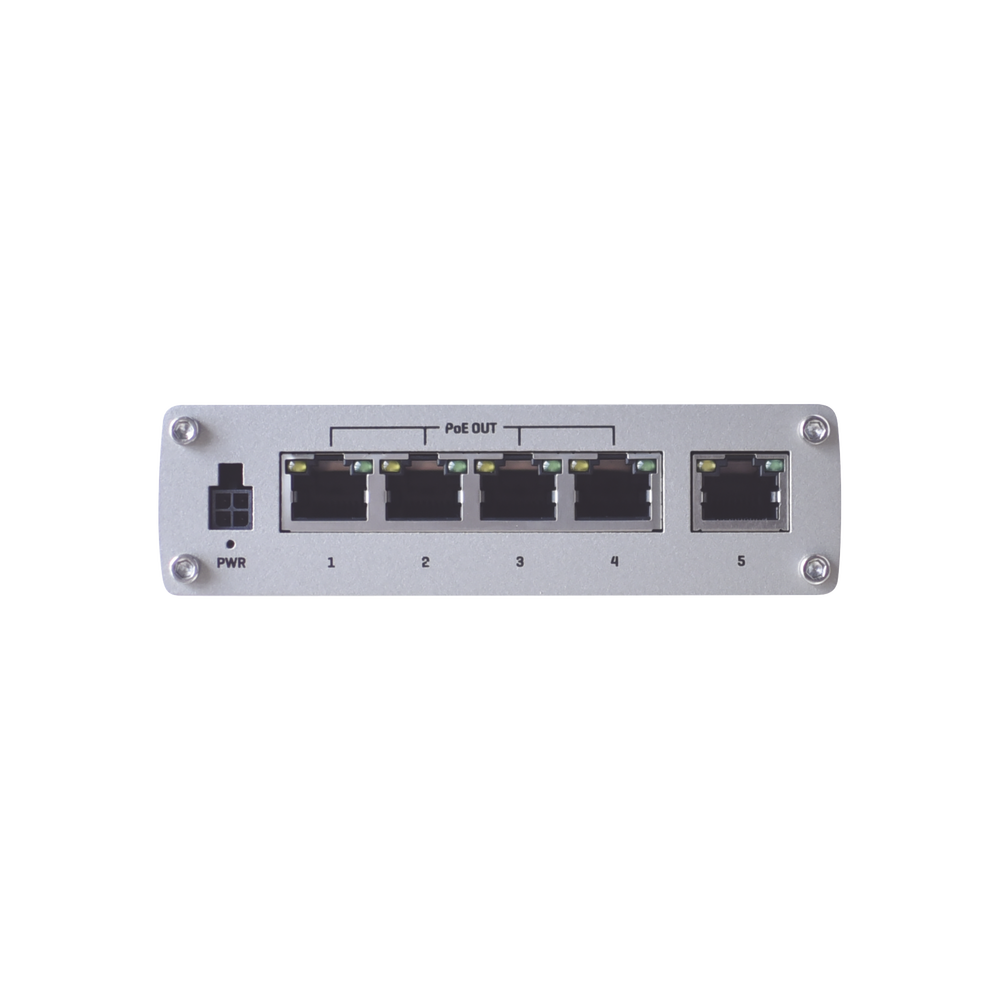

- 5 LAN ports, 10/100/1000 Mbps
- 4 ports with PoE 802.3 af/at
Performance
- Bandwidth: 10 Gbps
Electrical and Physical
- Power: 9 - 57 Vdc, Requires 44 - 57 Vdc to activate PoE.
- Consumption: 9 W without PoE, 129 W with PoE
- Weight: 136 g
- Dimensions: 115x32x95 mm (WxHxD)
- Operating Temperature: -40 to 75º C
- Ingress protection: IP30
Remote Management System RMS
(RMS requires a Primary Router)
- Aluminum housing, Temperature range -40°C to 75°C, Dimensions (width x height x depth) 115 x 32 x 95 mm
