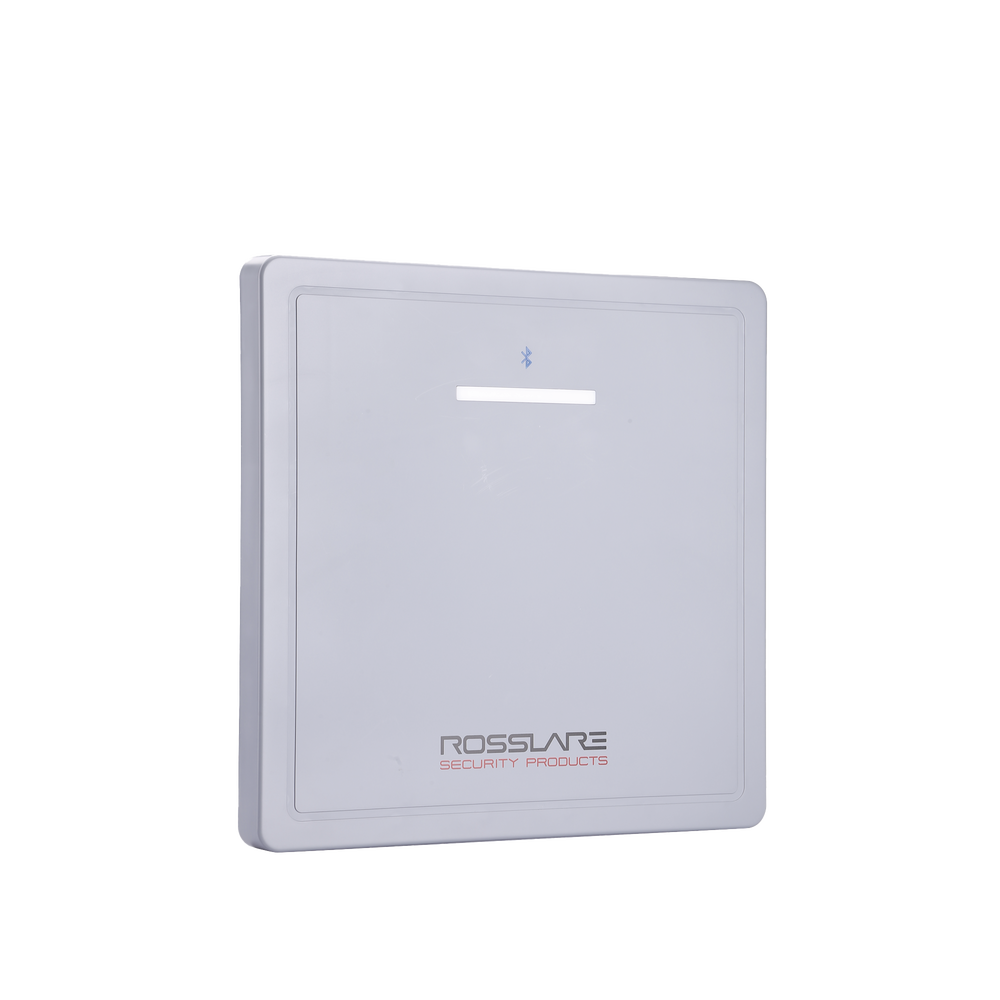

UHF Long Range Reader / Up to 6 m / Wiegand Connection / EPC GEN2 Protocol / Compatible with BLE-ID Mobile Card

• UHF reading range up to 6 m
• Supports Bluetooth communication for Rosslare Smartphone Apps BLE-ID™ for Android and iOS
• Wide range of UHF credential form factors available
• It can read up to 10 credentials per second or up to 1 credential per second (programmable)
• RGB LED used for operational indication
• Supports OSDP V2, including the secure channel that uses 128-bit AES encryption for enhanced security with extended range, up to 32 addresses

• Operating voltage: 9 to 12 Vdc
• Current consumption: 1.2 A
• Credential reading distance: Up to 6 m
• BLE-ID credential reading distance: Up to 12 m
• Transmission protocol: Wiegand and OSDP V1 and V2
• Frequency: 902 - 928 MHz
• Reading Sensitivity: Dual Polarization Reading Mode
• Cards and Tags: EPC GEN2 (ISO18000-6C) Tags and BLE-ID Mobile Card
• Vandal resistant: IK10
• Operating temperature: -35°C to 60°C
• Dimensions: 29.5 x 29.5 x 3.2 cm
• Weight: 2.5 Kg

The AY-U915BT is a unique UHF RFID credential reader with Rosslare BLE-ID™ credential reading capability (for iOS and Android). Installers can configure a wide range of operating parameters using our Rosslare BLEAdmin™ app. The AY-U915BT brings a new level of convenience and productivity. UHF reading mode is ISO18000-6C (EPC GEN2) compliant.

The reader is suitable for outdoor use in a wide range of RFID applications, including access control, transportation management, vehicle management, car parking, and production process control, and works with almost all third-party controllers. Choose Rosslare for professional "long-lasting security."
