Laser Sensor and Remote Control Kit / Avoid the use of magnetic loops / Protects lanes up to 9.6 m wide and 9.6 m deep

Applications - Vehicle barriers, swing or sliding gates and roller blinds

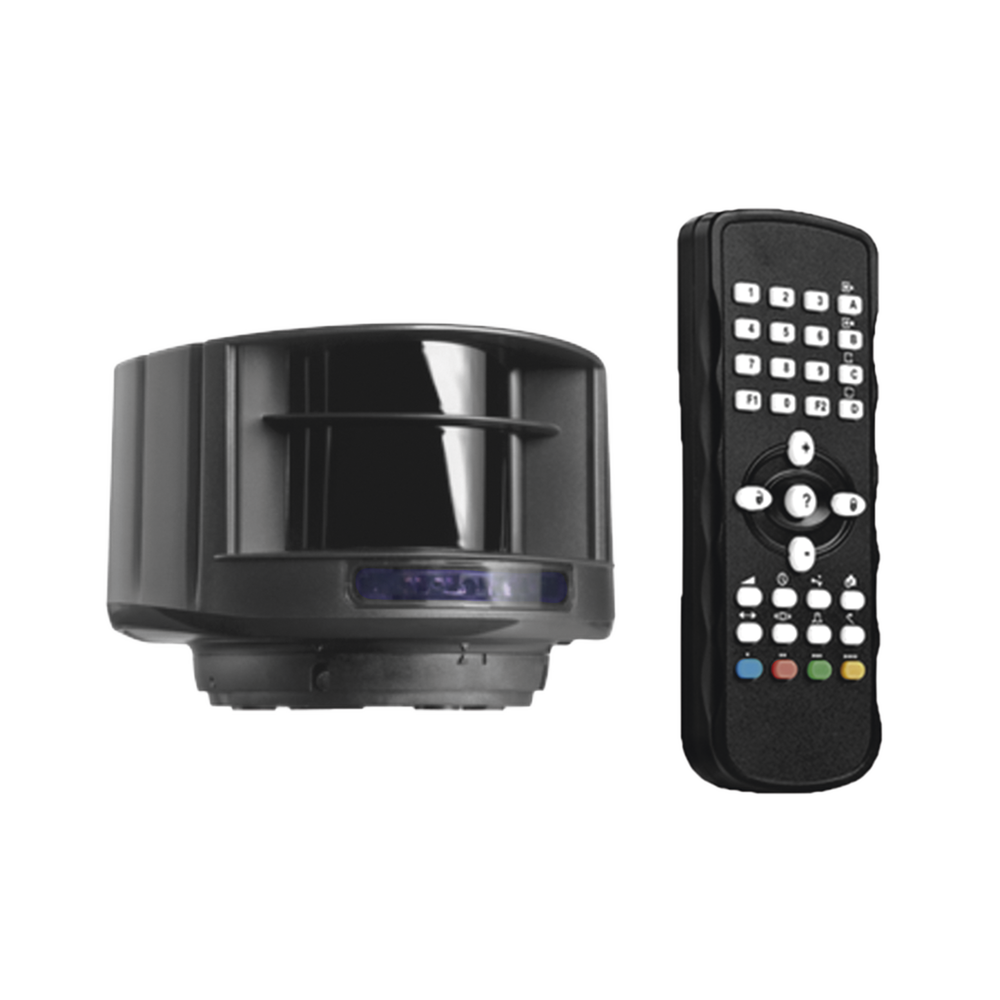

What's in the kit?

1. Sensor 10-LZR-H100 , laser sensor.
2. Remote control for configuration model 10-REMOTE

What do I need to quote?

1. Barrier or pedestal mounting bracket (not included). Facilitates installation. Model 10-LBA
2. 12 V DC, 1 A regulated power supply for the equipment (Not included). Recommended model: PL-DC-1000 or equivalent.

Optional accessory to quote

• Pedestal bollard for mounting the 10-LZRH100 sensor (not included). Model 10-BOLLARD-BLK

BEA's 10-LZR-H100 sensor is a Time of Flight laser-based sensor designed for applications in doors, gates, and vehicle barriers.
This solution provides four laser curtains, each offering a three-dimensional detection zone for precise object detection. These laser curtains are highly configurable and can be set to open, security, and presence detection functions in vehicle sensing applications.

The 10-LZR-H100 is a safe and highly competitive alternative for locations where it is not possible to install magnetic loops, due to restrictions imposed by the end user or inconveniences that limit the installation area.
The sensor is encapsulated in a NEMA 4 enclosure, ensuring excellent performance in outdoor applications.

Includes remote control
