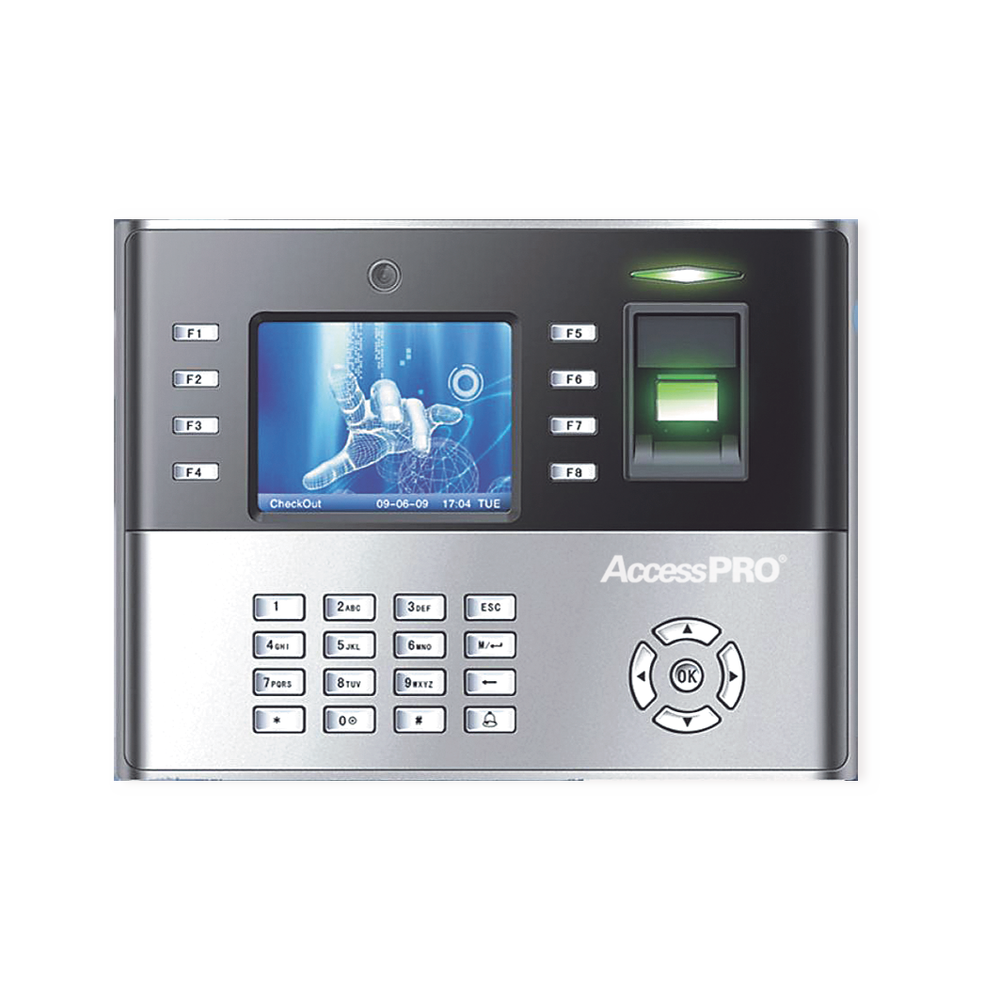

IP Time Clock with 10,000 fingerprints and 10,000 cards / Takes photo of check-in / Access control

Compatible software:

     → Now supports payroll integration!

* User capacity depends directly on the capacity of the biometric.

Grades:
Support is only provided for software supplied with the equipment or provided by SYSCOM, provided it uses the same database engine included. Any other implementation to other software or database versions is the responsibility of the integrator or developer in charge.

Functions
- Access Control.
- Time and Attendance.

Ability
- Footprints 10,000
- 10,000 cards
- Events 100,000

Communication
- TCP/IP, RS485 and RS232.
- Administration by USB memory.
- Wiegand 26-bit input and output.

Hardware
- Anti-Scratch Optical Fingerprint Sensor.
- Proximity Reader and Keyboard.
- Front Camera.
- 3.5” TFT Multimedia Screen.
- Speaker for Voice Commands.

Special Features
- Capture Photographs of Accesses.
- Download photos via USB memory.
- Programmable Relay Output by Schedule.
- Displays the User's Photo on Screen.
- Sending SMS Messages on Screen.
- Access Control by Time.
- Combinable Verification Methods:
• Fingerprint + Card
• Fingerprint + Password
• Card + Password
• Fingerprint + Card + Password

Connections
- NC/NO/COM Relay Output (12V,3A).
- Exit Button / Doorbell / Door Sensor.
- Alarm output.

Feeding
- 12VDC / 270mA in Standby and 330mA in Operation.
- Power supply not included
- BIOMBAT Battery (Included)
- MINIUPS12V Backup Power Supply **OPTIONAL**

Compatibility
- ZK4000 USB reader for fingerprint registration.

Additional information
- Operating Temperature: 0 to 45 °C.
- Dimensions: 180 x 175 x 44 mm.
- Language in the Unit: Spanish and English.
- 1 Year Warranty.

Compatible Cards
- ATR11, ATR14 and ATR261B0.

Note:
Support is only provided for software supplied with the equipment or provided by SYSCOM, provided it uses the same database engine included. Any other implementation to other software or database versions is the responsibility of the integrator or developer in charge.
