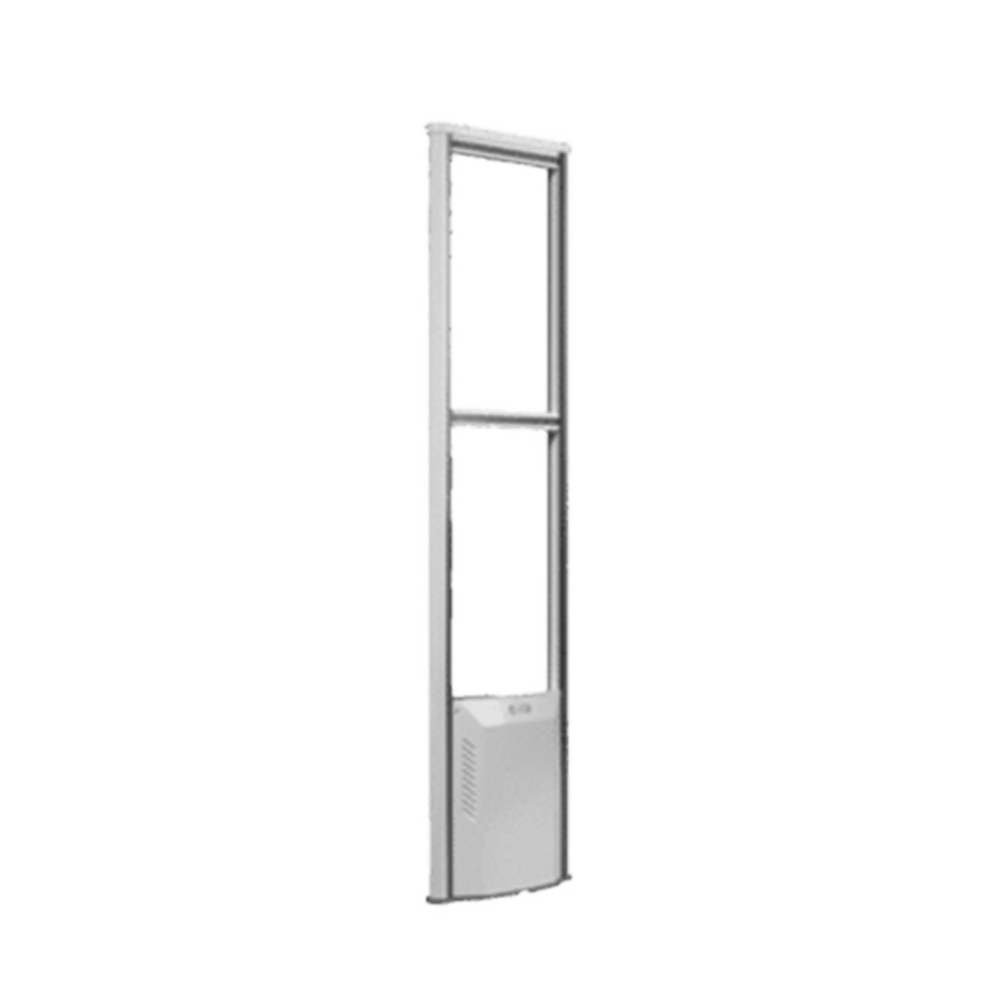

Slave AM Transmitter Antenna for Merchandise Protection

Slave AM Transmitter Antenna for Merchandise Protection

• Transmitting antenna.
• Requires Master antenna: CA78L/F1C
• Frequency: 58 kHz
• Power consumption: 220 W
• Maximum current: 5A@ 120 VAC
• Dimensions: 1548 x 405 mm
• Frame thickness: 45 mm
• Base thickness: 130 mm
• Weight: 15 Kg

*Detection range depends on power quality, noise levels, and tag type.

Installation environment requirements

1 Make sure the antenna is installed in a well-ventilated environment.

2 Make sure the environment is clean and dry.

3 Make sure there is no possibility of water entering the antenna frame

4 Make sure there are no large metal objects, such as a metal door frame, cabinet, or shopping cart, near the antenna.

5 Make sure there is no 58 KHz label near the antenna.

Power source requirements.

1. All antennas within 40m must use the same 110VAC power supply, and the neutral wire and hot wire must be in the same position, i.e. neutral on the left and hot on the right.

2. High quality grounding (in the distribution box): the voltage between live and ground must be 110VAC.

3. Power supplied by UPS or private generator is not acceptable.

4. The live wire should not be connected to any live electrical outlet. It is best to use the same power source for the live wire as the lighting system.

External

1. Make sure the power supply of the power outlet is independent (do not share it with other electrical equipment) and the power outlet has a good ground connection (you can use a multimeter to test the voltage between the phase wire and the ground, which should be 110V or 220V).

2. Make sure the power supply voltage is normal .

3. 58 KHz tags must be 3 meters or more from the antenna.

Note: Not recommended for use in libraries, hardware stores, metal products, electronic equipment directly, or places with a large amount of metal.

When using lanes, take into account the structure: Master-Slave-Master.
