• (AX PRO) Kit de Panel de Alarma Inalámbrico de Hikvision / Soporta 96 Zonas / Lector de Tag integrado / 3G/4G, Wi-Fi y Ethernet / Incluye Batería de respaldo / Compatible con los Accesorios AX PRO.
1 1

HIKVISION

(AX PRO) Hikvision Wireless Alarm Panel Kit / Supports 96 Zones / Integrated Tag Reader / 3G/4G, Wi-Fi and Ethernet / Includes Backup Battery / Compatible with AX PRO Accessories.

(AX PRO) Hikvision Wireless Alarm Panel Kit / Supports 96 Zones / Integrated Tag Reader / 3G/4G, Wi-Fi and Ethernet / Includes Backup Battery / Compatible with AX PRO Accessories.

$1.134.380 COP
$1.240.729 COP $1.134.380 COP
Sale Sold out
Shipping calculated at checkout.

(AX PRO) Hikvision Wireless Alarm Panel Kit / Supports 96 Zones / Integrated Tag Reader / 3G/4G, Wi-Fi and Ethernet / Includes Backup Battery / Compatible with AX PRO Accessories.

Discover the AX PRO series of Hikvision alarms

Configure the Hikvision AX PRO alarm

Welcome to the future with AX PRO Hikvision

Main features:
  • Supports up to 96 alarm zones or outputs (allows combining between outputs and zones)
  • 32 areas or partitions.
  • Supports up to 8 DS-PT1-WB Tag Readers or DS-PK1-E-WB Keypads (allows combining readers and keypads)
  • Integrated Mifare Tag Reader (13.56 MHz).
  • Compatible Tag: DS-PT-M1 or any Mifare
  • Supports up to 6 wireless sirens (3 for outdoor DS-PS1-E-WB/R and 3 for indoor DS-PS1-I-WB )
  • Supports up to 48 remotes ( DS-PKF1-WB controls)
  • Supports up to 4 DS-PR1-WB repeaters
  • Supports event video viewing via mobile client and email.
  • Voice prompt for setup and operation.
  • Configuration via web, mobile client or client software.
  • Send alarm notifications via Push and Email notifications.
Physical and Electrical Characteristics:
  • Supports 3G/4G connection, Wi-Fi (2.4 GHz) and TCP/IP
  • Power consumption: 110 VAC.
  • Operating temperature: - 10 ° C to 55 ° C
  • Dimensions: 170 × 170 × 38.6 mm
  • Weight: 557.5 grams
  • Material: Polycarbonate.
  • Warranty: 2 years
Highlighted Features:

AX PRO supports Wi-Fi, 3/4G and TCP/IP communication methods.

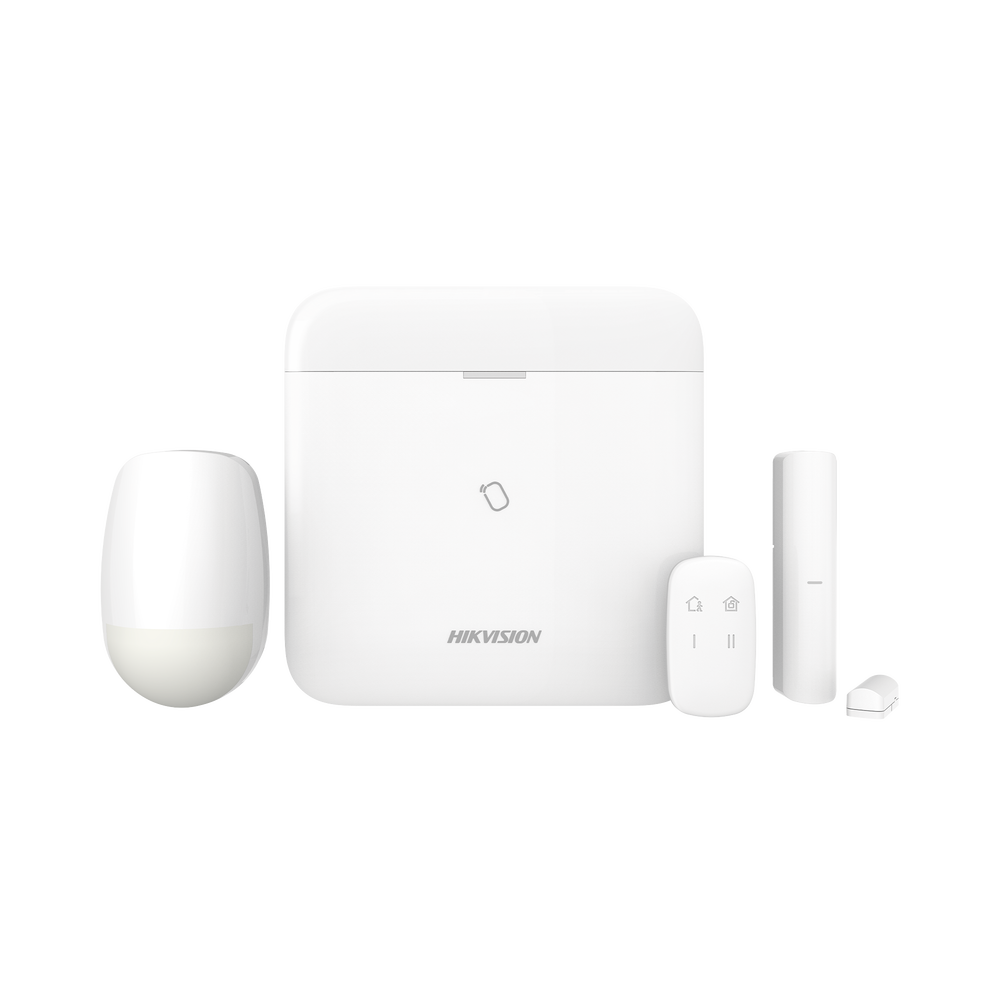

The kit includes:

  • 1 Concentrator or Hub: DS-PWA96-M-WB.
  • 1 PIR Sensor: DS-PDP15P-EG2-WB.
  • 1 Magnetic contact: DS-PDMC-EG2-WB.
  • 1 Remote control: DS-PKF1-WB.



AX PRO Series

Need to protect your home, office or store?

Tired of so many cables and a long installation time?

Use a professional wireless alarm solution!

Learn about all the devices that can be integrated into the AX PRO Series by clicking here .

APPLICATION DIAGRAM

WHAT'S NEW IN THE AX-PRO SERIES

DS-PR1-WB SIGNAL REPEATER

Increase the coverage of your devices

Extends the signal of AXPRO series devices, receives alarm, status and control messages from the devices and repeats these messages to the control panel.

  • ✓Stable and secure 433MHz two-way wireless communication .
  • ✓LED indicator, displays the different status of the device with easy understanding.
  • ✓Up to 35 hours of battery backup after loss of main power.
  • ✓Automatically find and connect detectors, intelligent auto pairing.
  • ✓Easy installation due to new design.

PIR DETECTOR WITH WIRELESS CAMERA DS-PDPC12P-EG2-WB

Fully supervised two-way wireless detector with built-in high-quality camera that can provide an ideal solution for video verification.

  • ✓Detection range: 12 m.
  • ✓Detection angle: 85.9°.
  • ✓Pet immunity: 30Kg.
  • ✓Maximum camera resolution: 640 x 480.
  • ✓Operating Voltage: 3 x CR123A (Included).
  • Battery life: 6 years
  • ✓Anti-sabotage tamper.

ACCESSORIES FOR AUTOMATION:

DS-PM1-O1H-WB

  • ✓433MHz Two-Way Wireless Communication / AES-128 Encryption.
  • ✓LED indicator, shows the device status: on/off.
  • ✓Small box design, which can be easily hidden.
  • ✓Automation operation, on/off button from: app / control / keypad
  • ✓Setting up scenarios for different events.
  • ✓1 Relay output: NO/NC (100 to 240 VAC / Max. 13 A)
  • ✓Operating Voltage: 100 VAC to 240 VAC.
  • ✓Operating temperature: -10° to 55°C.

DS-PM1-O1L-WB

  • ✓433MHz Two-Way Wireless Communication / AES-128 Encryption.
  • ✓LED indicator, shows the device status: on/off.
  • ✓Small box design, which can be easily hidden.
  • ✓Automation operation, on/off button from: app / control / keypad
  • ✓Scenario configuration for different events
  • ✓Using the alarm input, it can be used as a zone input for the panel.
  • ✓1 Relay output: NO/NC (0 to 36VDC / Max. 5 A).
  • ✓1 Alarm input: NO/NC.
  • ✓Operating Voltage: 7VDC to 24VDC.
  • ✓Operating temperature: -10° to 55°C.

    Free App, Compatible with PIRCAM, Integrated Communicator

80 in stock

MODELO: DS-PWA96-KIT-WB
