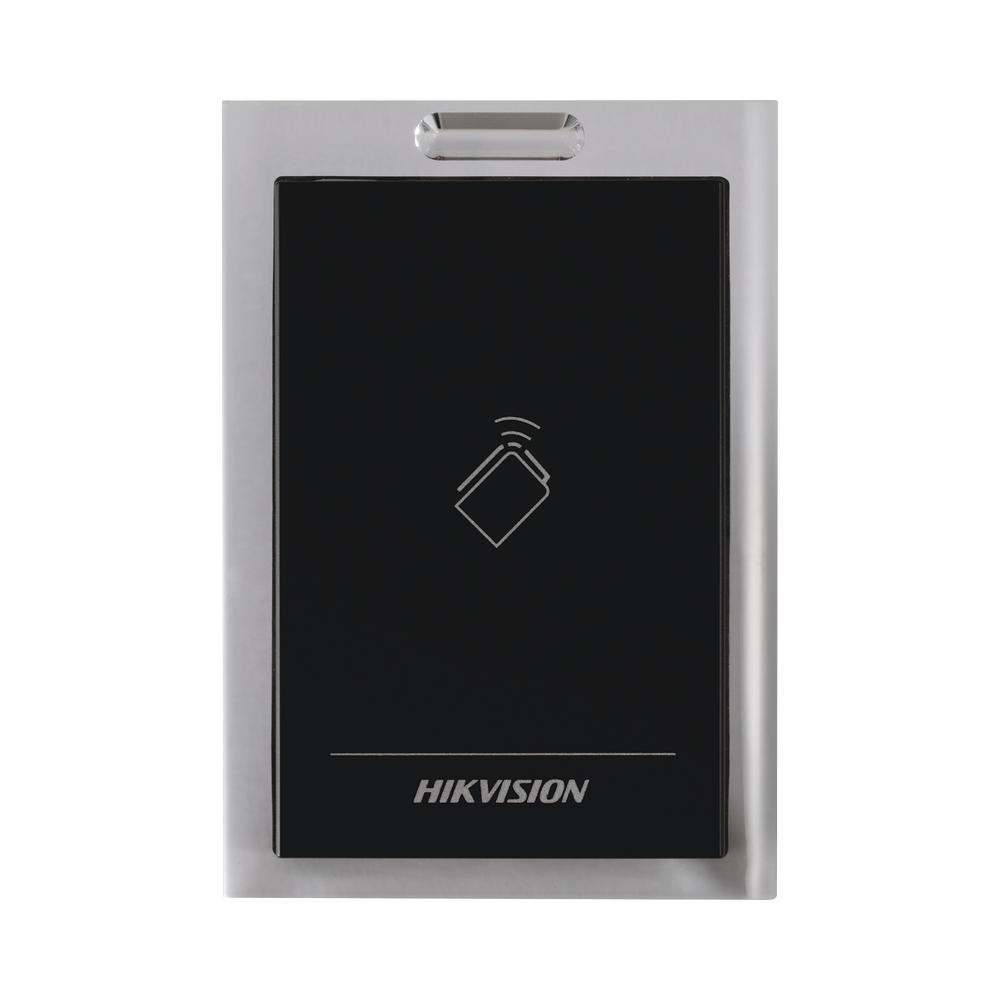

MIFARE Card Reader / Wiegand and RS-485 Connection / Aesthetic and Easy to Use / LED Indicator

• LED power and status indicator.
• Supports Wiegand Protocol (W26/W34)
• Reading MIFARE® cards (Frequency: 13.56 Mhz).
• IP64 protection (protected exterior, not weatherproof).
• Wall mount.
• Warranty: 2 years

Suggested cards : ACCESS-CARD-M1K / ACCESS-CARD-M4K .

• Operating voltage: 12VDC, 0.5 A
• Operating temperature: -20°C to +65°C (-4°F to 149°F)
• Dimensions:132.0mm × 92.3mm × 20.5mm (5.20” × 3.63” × 0.81')
• Weight: 0.14 Kg
• Supports Wiegand or RS485 connection.
• DIP switch for RS485 addressing.

This reader connects via Wiegand to any access control panel that supports this protocol. We recommend panels from the same brand HIKVISION (any series) but also compatible with ZKTeco, Rosslare, Suprema, AccessPRO, etc. panels.

It also supports RS485 connection to achieve greater distances (only compatible with Hikvision DS-K26 series controllers).
