Personal Multi-Gas Monitor | With Pelistor Sensor Detects 4 Gases (O2/H2S/CO/LEL)

Personal Multi-Gas Monitor | With Pelistor Sensor Detects 4 Gases (O2/H2S/CO/LEL)

$3.943.843 COP
$4.313.578 COP $3.943.843 COP
Sale Sold out
Shipping calculated at checkout.

Personal Multi-Gas Monitor | With Pelistor Sensor Detects 4 Gases (O2/H2S/CO/LEL)

Advanced, easy-to-use 4-gas monitor for worker protection in hazardous environments.

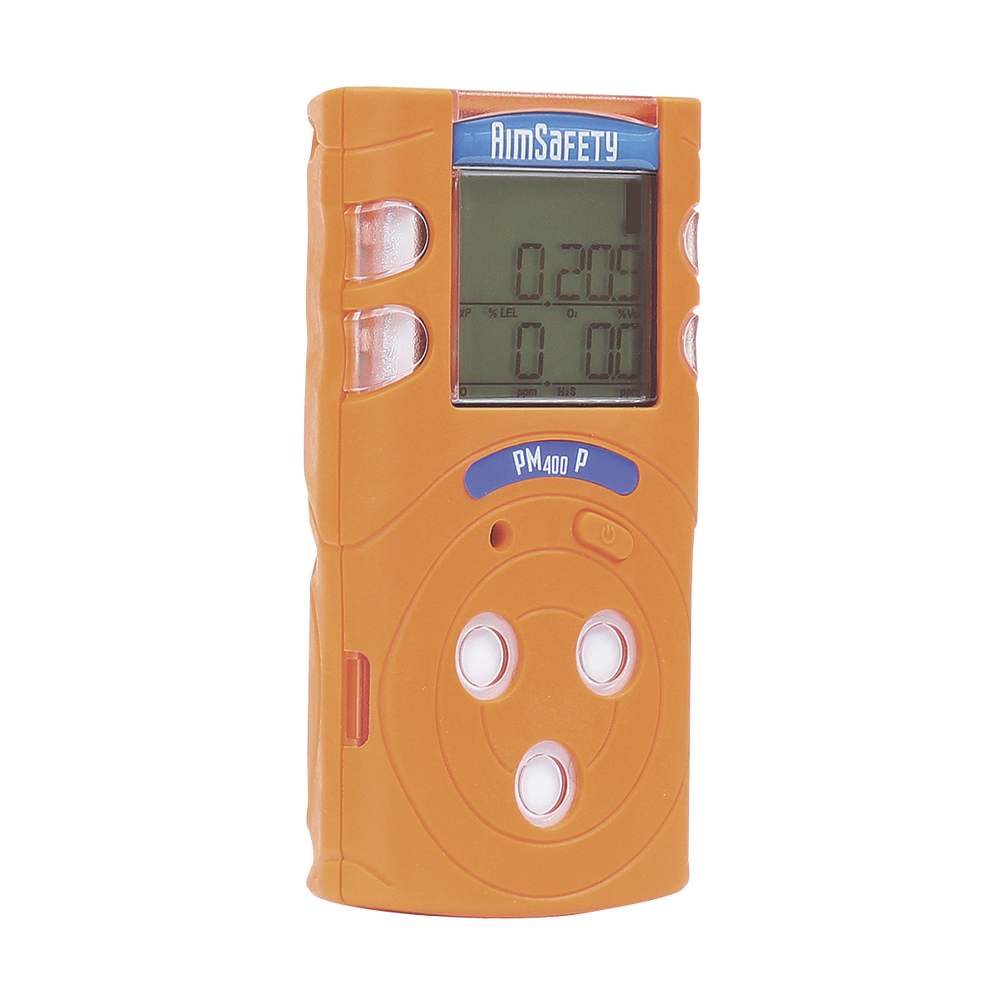

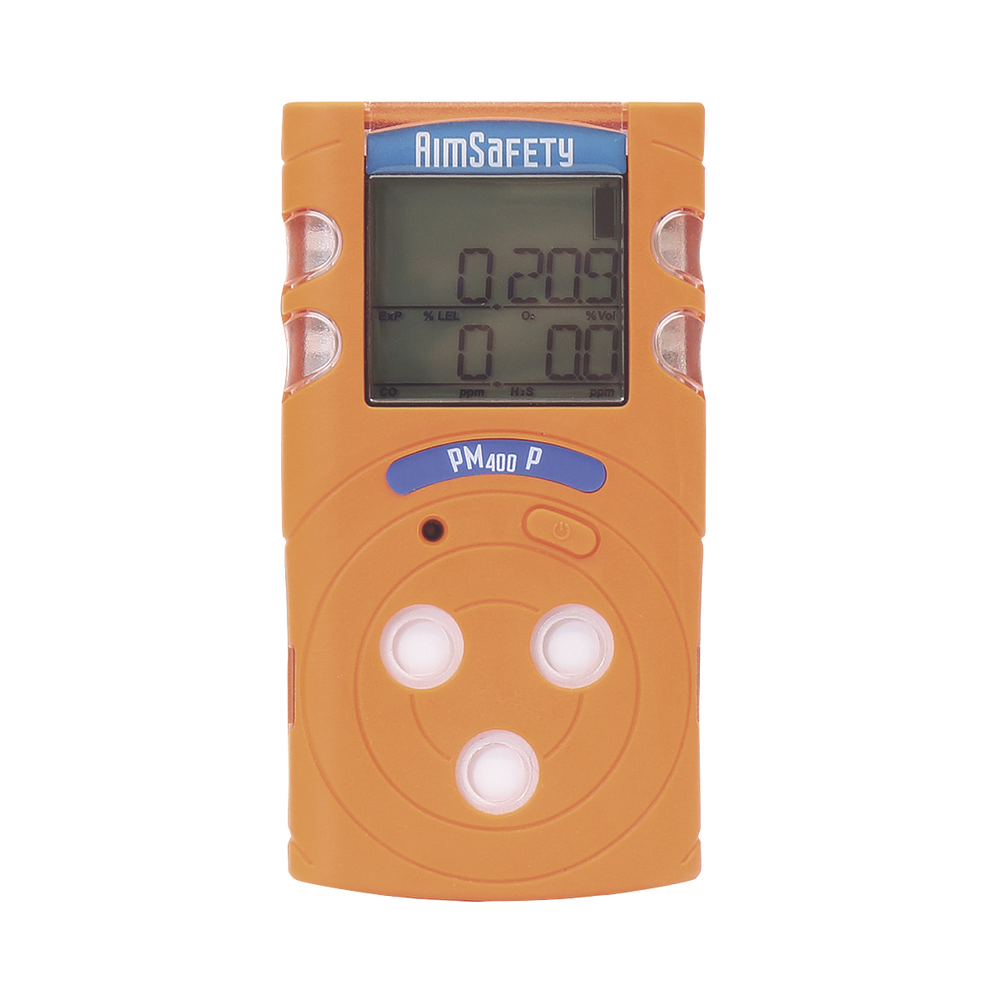

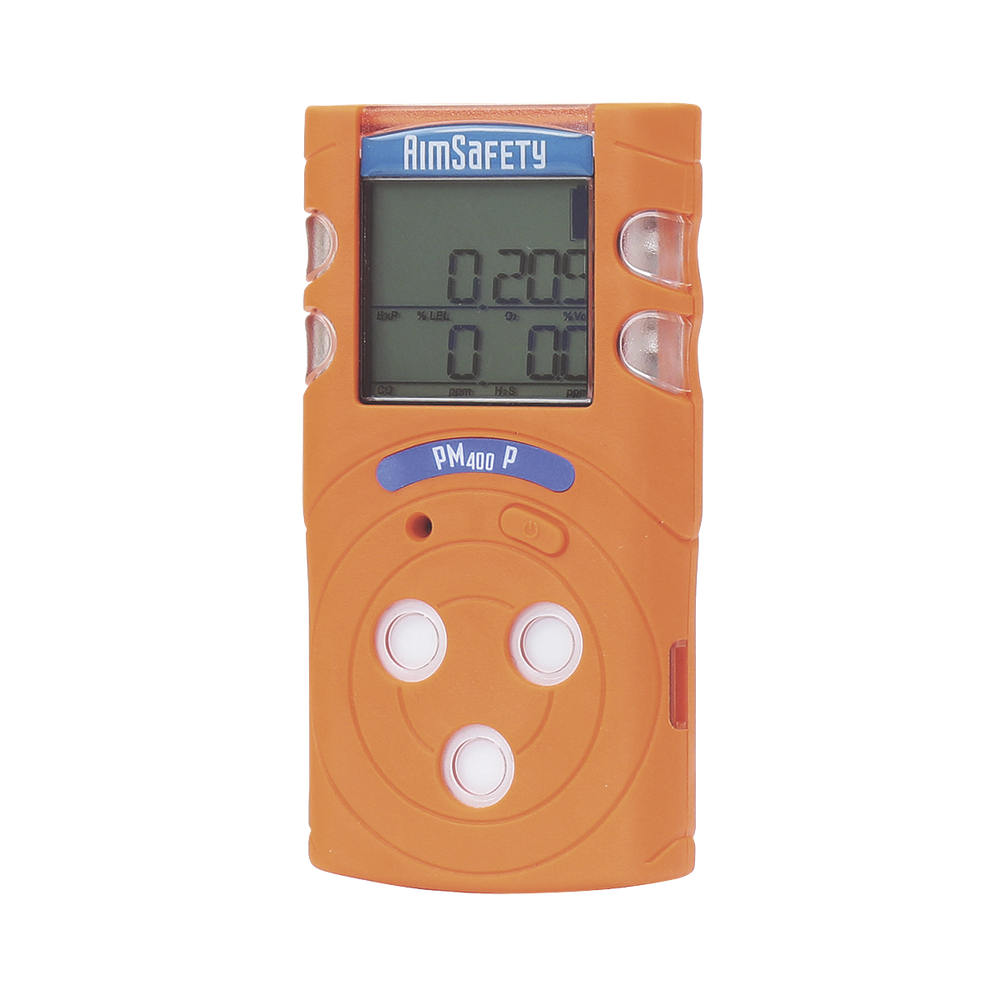

The innovative new AimSafety PM400 handheld 4-gas monitor provides increased convenience and flexibility for gas detection in hazardous environments. The ergonomic PM400 gas diffusion monitor simultaneously detects up to four gases, including hydrogen sulfide ( H2S ), carbon monoxide (CO), oxygen ( O2 ) , and combustibles (LEL). AimSafety’s PM400 is easy to use and provides visibility into gas concentrations for faster, more informed decisions that help protect workers and operational assets, potentially increasing revenue and productivity.
The PM400 LCD display provides real-time gas concentrations and allows plant managers or workers to set high and low alarm setpoints for each sensor, as well as STEL and TWA alarm setpoints for toxic gases. The PM400's audible, visual, and vibrating alarms alert the user to unsafe gas concentrations. The PM400P will operate continuously for up to 24 hours on a single battery charge. Standard sensors include carbon monoxide, hydrogen sulfide, oxygen, and catalytic bead or infrared for combustible gases (LEL).
Main features:
  • Easy-to-read LCD display
  • One-button operation
  • Durable, high-visibility housing
  • IP67 dustproof and waterproof
  • 24-hour continuous runtime.
  • The event log
  • Data logging

Applications:

  • Entry into confined spaces
  • Petroleum gas
  • Heavy metal and steel
  • Chemical plants
  • Pulp paper
  • Municipalities
  • Food and drink
  • Contractor / Construction
  • First aid
Specs:
  • Size: 11.37 x 6 x 4 cm.
  • Weight: 227 g.
  • Sensor type: Pellistor.
  • Battery: Rechargeable lithium ion.
  • Autonomy: 60 continuous days.
  • The event log: 30 events, 30 calibrations, 30 functional tests.
  • Data logging: two months, continuous at 1-minute intervals, 24 hours a day, 7 days a week.
  • IP Rating: IP67 (Dust-tight and waterproof).
  • Show:
    • Backlit digital LCD display.
    • Real-time readings of gas concentrations Battery status.
    • Alarm notifications.
  • Alarms:
    • LCD display with alarm icon, LCD backlight
    • LED indicator
    • Audible: 90 dB at 4 inches (10 cm)
  • Temperature: -20°C to 50°C.
  • Humidity: 10% to 95% relative humidity (non-condensing).
  • Certifications:
    • UL and CSA
    • Class I, Division 1, Groups A, B, C, D, T4 Class I, Zone 0, AEx ia IIC T4 Ga.
    • IECEx.
    • Ex ia IIC T4 Ga (PM400-IR) Ex da ia IIC T4 Ga (PM400-PAG).
  • Warranty: 2 years.
Gas options:
  • CO: 0 - 500 ppm at 1ppm resolution.
  • H 2 S: 0 - 100 ppm at 0.1 ppm resolution.
  • O 2 : 0 - 30% Vol at 0.1% volume resolution.
  • Fuel: 0 - 100% LIE at 1% LIE resolution.

Calibration gas default values :

  • CO:
    • Low: 35 ppm.
    • High: 100 ppm.
    • ESTEL: 200 ppm.
    • TWA: 35 ppm.
    • California: 100 ppm.
  • H 2 S:
    • Low: 10 ppm.
    • High: 20 ppm.
    • ESTEL: 15 ppm.
    • TWA: 10 ppm.
    • California: 25 ppm.
  • Or 2 :
    • Low: 19.5%vol.
    • Low: 23.5%vol.
    • California: 18%vol.
  • LEL:
    • Low: 10% LIE.
    • High: 20% LIE.
    • California: 50% LIE.

    Out of stock

    MODELO: PM400-P
